25
English
N3150TM-ITX
3.2.4 Setting

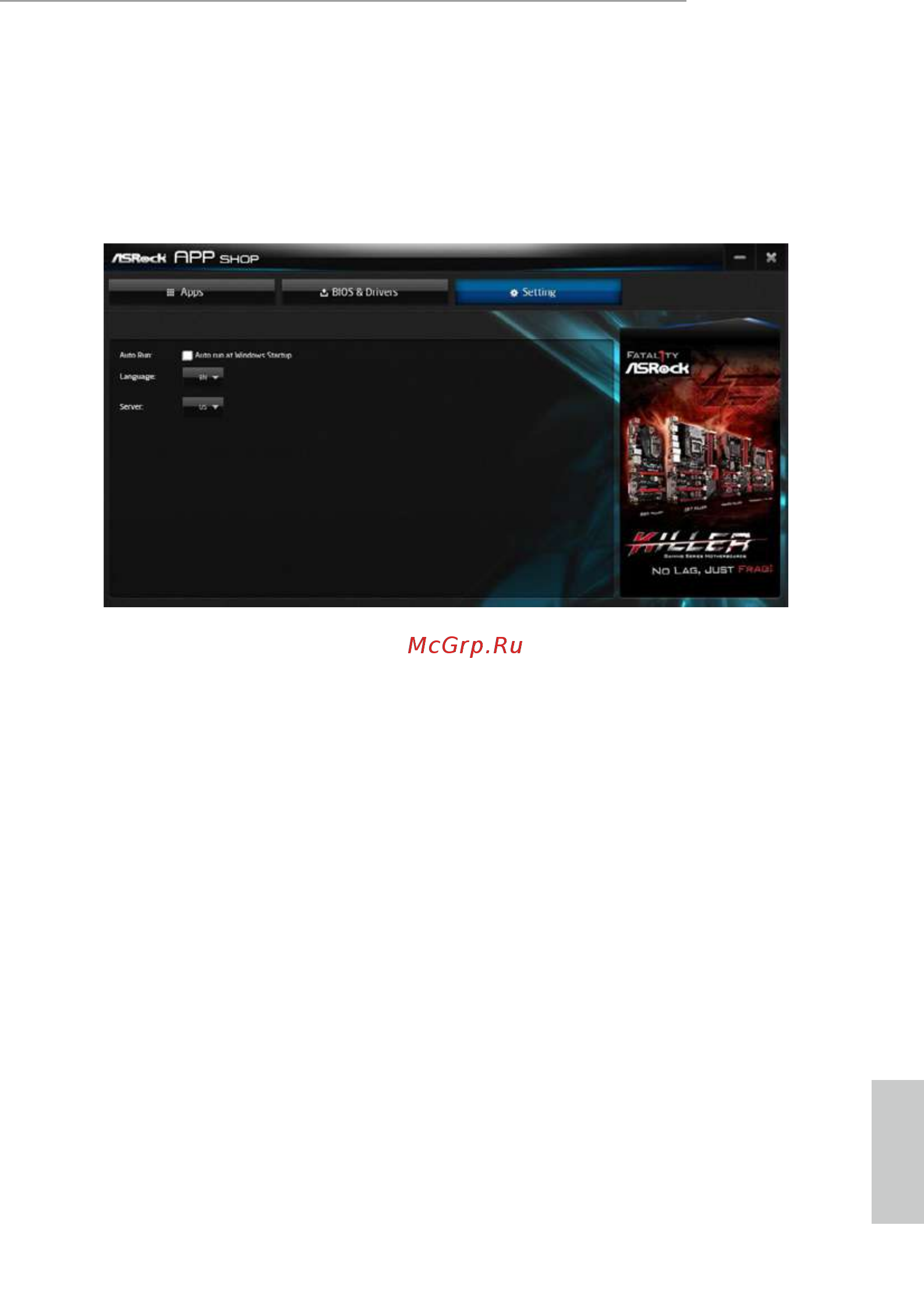

In the "Setting" page, you can change the language, select the server location, and
determine if you want to automatically run the ASRock Live Update & APP Shop
on Windows startup.
