ASRock N3150TM-ITX [48/57] Trusted computing
![ASRock N3150TM-ITX [48/57] Trusted computing](/views2/1688719/page48/bg30.png)
43
English
N3150TM-ITX

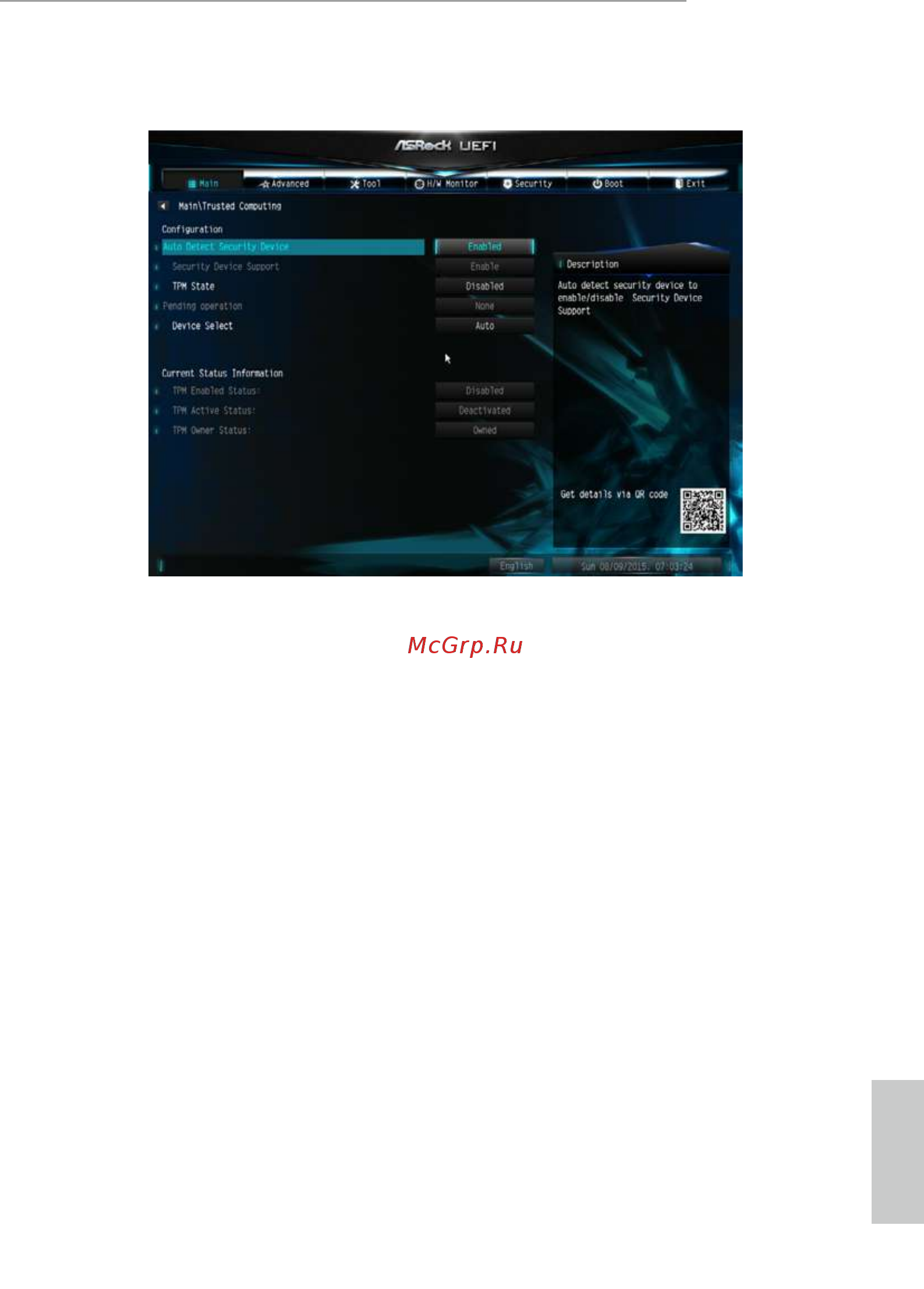

4.3.8 Trusted Computing
Security Device Support
Enable to activate Trusted Platform Module (TPM) security for your hard disk
drives.
