46
English
N3150TM-ITX

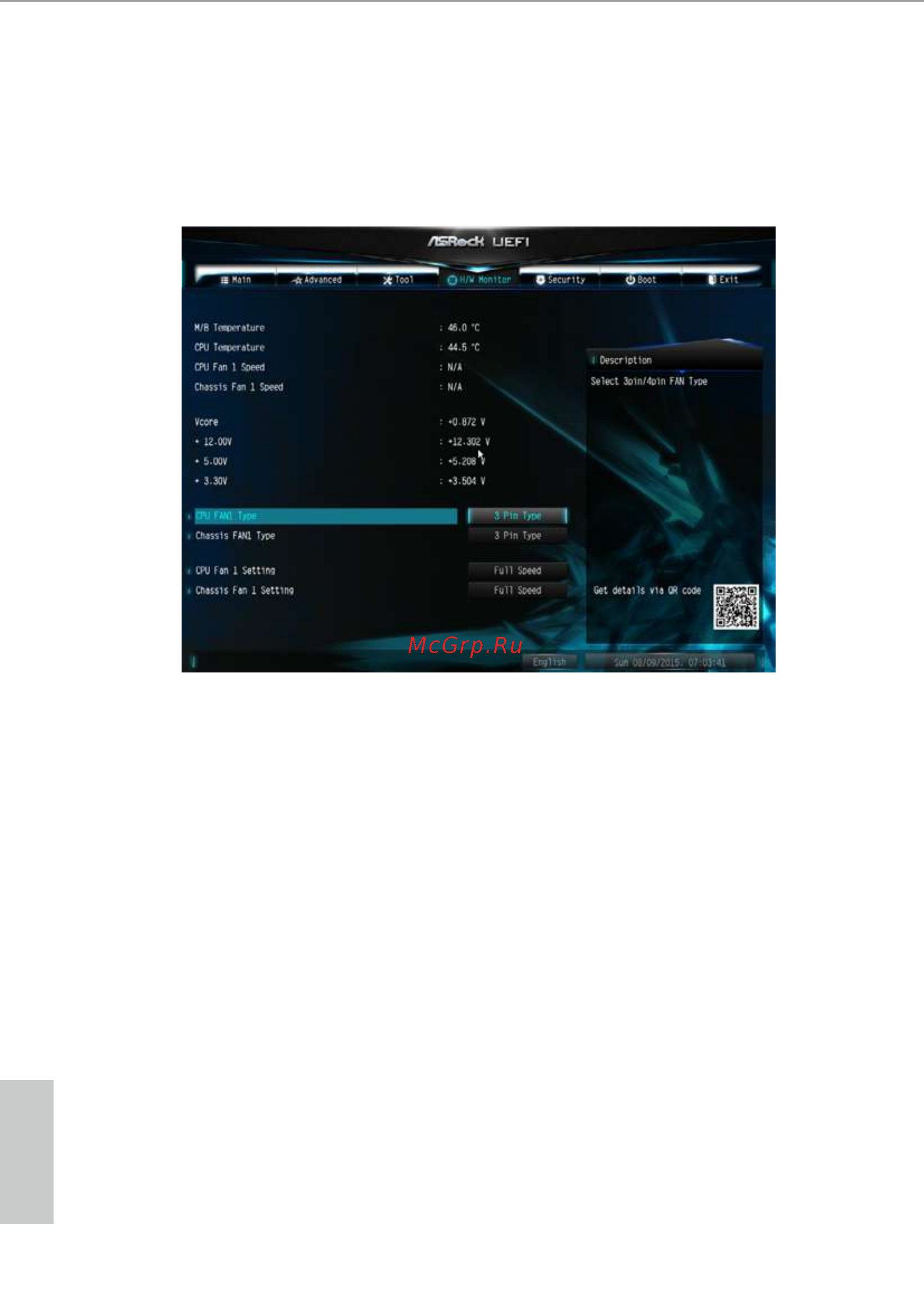

4.5 Hardware Health Event Monitoring Screen
is section allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, fan
speed and voltage.
CPU FAN1 Type
Select 3-pin or 4-pin FAN Type.
Chassis Fan 1Type
Select 3-pin or 4-pin FAN Type.
CPU Fan 1 Setting
is allows you to set CPU fan 1’s speed. Conguration options: [Full On] and
[Automatic Mode]. e default value is [Full On].
Chassis Fan 1 Setting
is allows you to set chassis fan 1’s speed. Conguration options: [Full On],
[Automatic Mode] and [Manual]. e default value is [Full On].
