ASRock N3150TM-ITX [39/57] Chipset configuration
![ASRock N3150TM-ITX [39/57] Chipset configuration](/views2/1688719/page39/bg27.png)
34
English
N3150TM-ITX

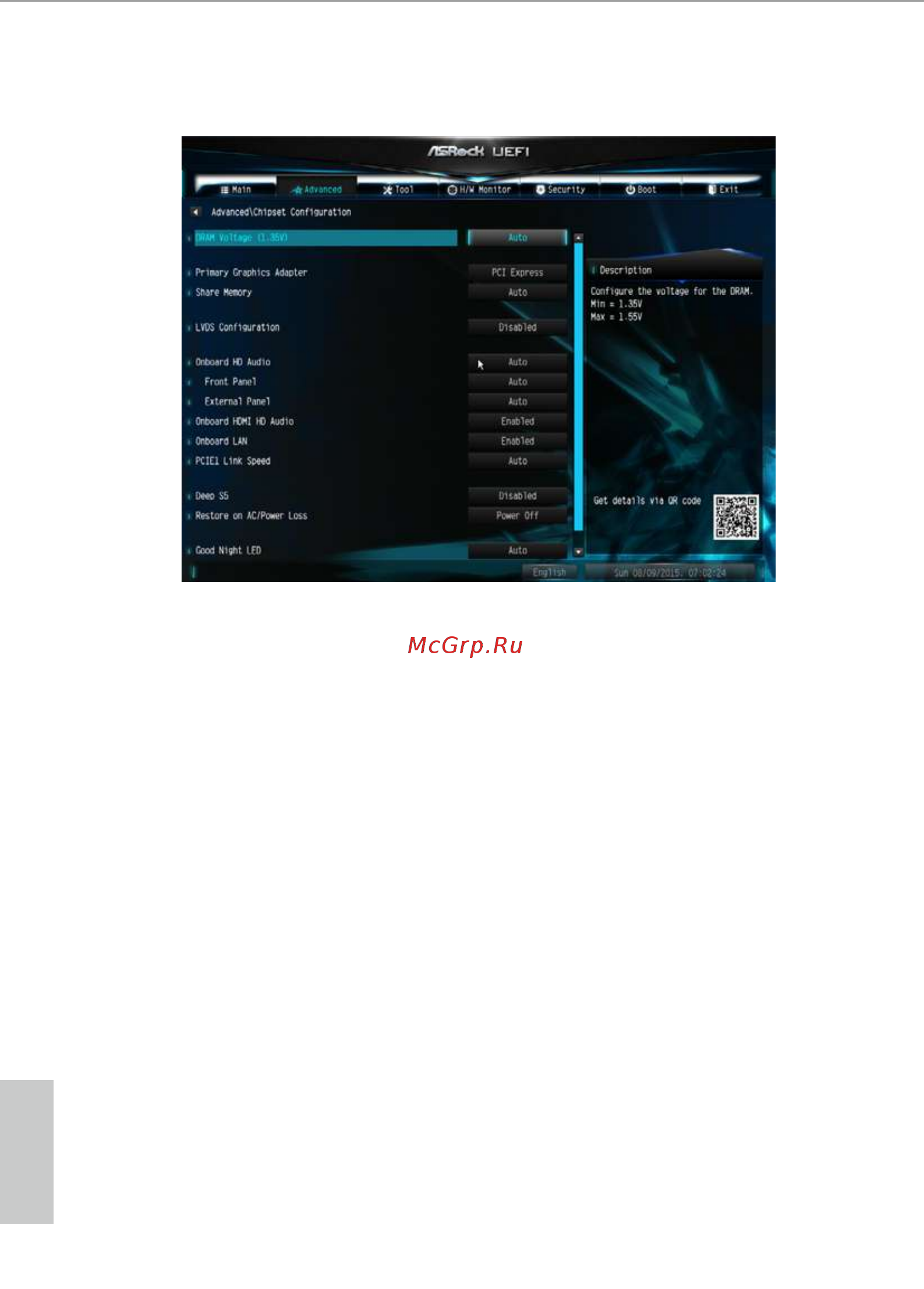

4.3.2 Chipset Conguration
DRAM Voltage (1.35V)
Use this to congure DRAM Voltage (1.35V). e default value is [Auto].
Primary Graphics Adapter
Select a primary VGA.
Share Memory
Congure the size of memory that is allocated to the integrated graphics processor
when the system boots up.
LVDS Conguration
Congure the setting for LVDS.
Onboard HD Audio
Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and
automatically disable it when a sound card is installed.
Front Panel
Enable/disable front panel HD audio.
External Panel
Congure the setting for HD Audio External Panel.
