ASRock N3150TM-ITX [36/57] Main screen
![ASRock N3150TM-ITX [36/57] Main screen](/views2/1688719/page36/bg24.png)
31
English
N3150TM-ITX

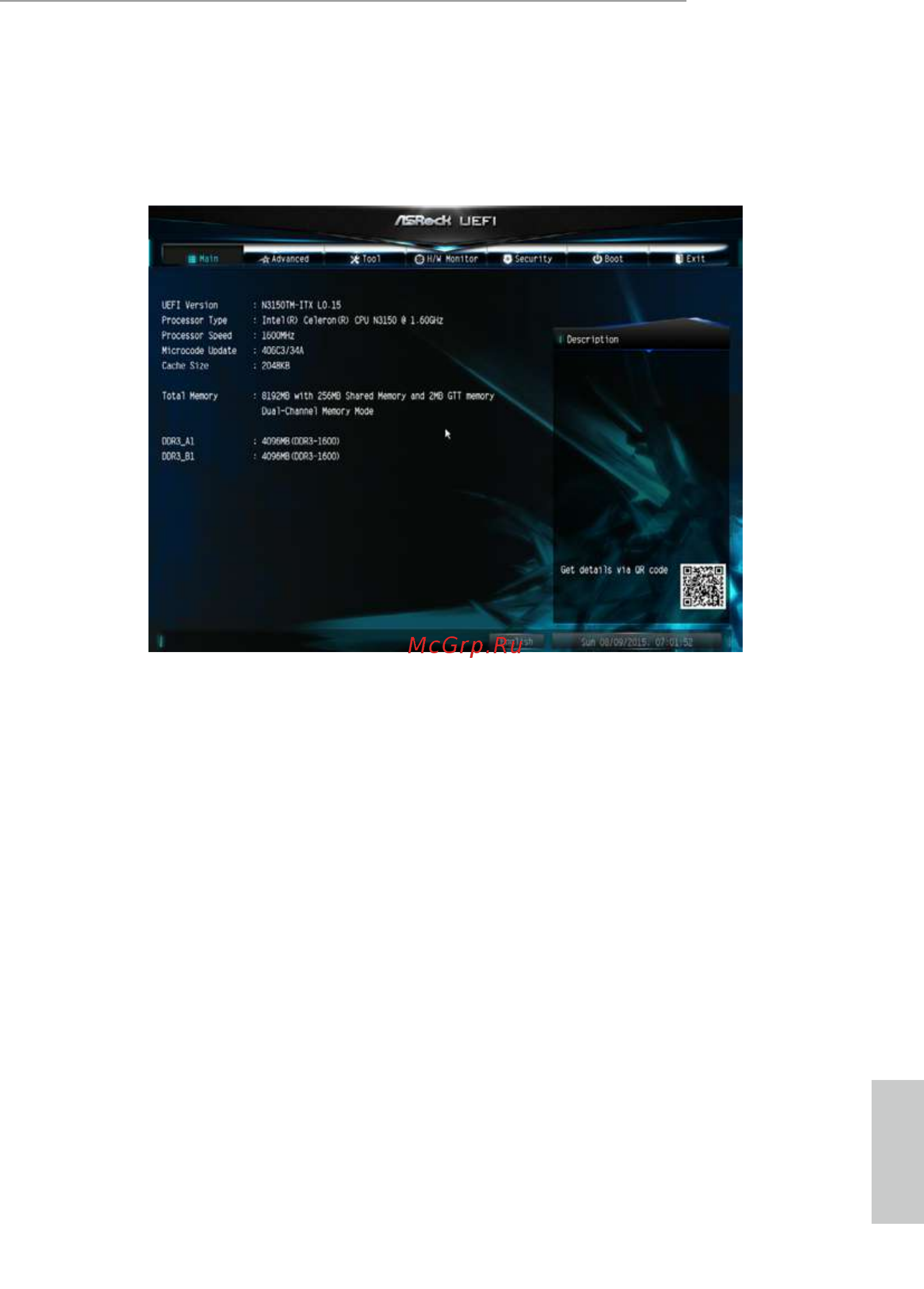

4.2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and
display the system overview.
