44
English
N3150TM-ITX

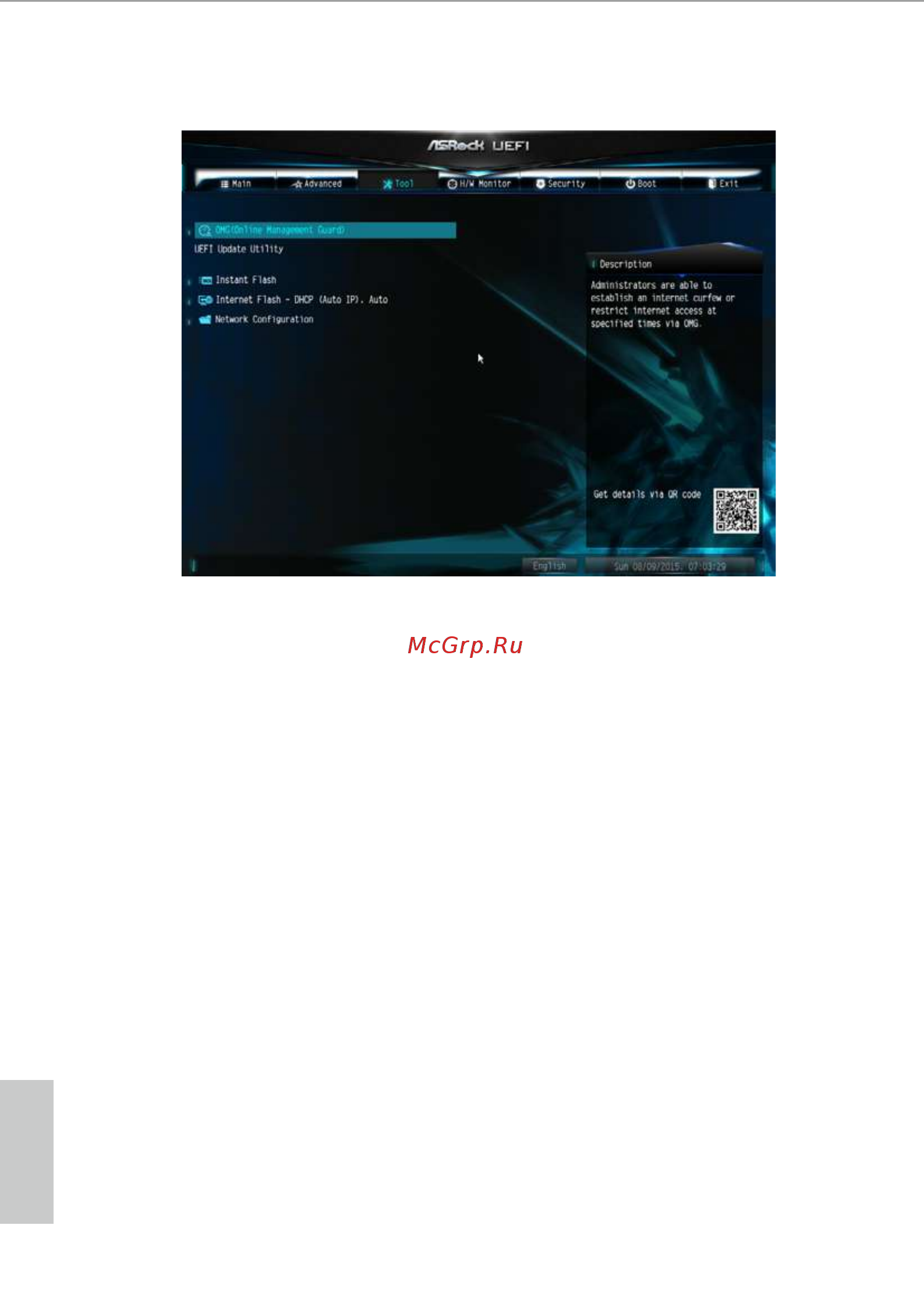

4.4 Tools
OMG (Online Management Guard)
Administrators are able to establish an internet curfew or restrict internet access at
specied times via OMG. You may schedule the starting and ending hours of internet
access granted to other users. In order to prevent users from bypassing OMG, guest
accounts without permission to modify the system time are required.
Instant Flash
Save UEFI les in your USB storage device and run Instant Flash to update your
UEFI.
Internet Flash
ASRock Internet Flash downloads and updates the latest UEFI rmware version
from our servers for you. Please setup network conguration before using Internet
Flash.
*For BIOS backup and recovery purpose, it is recommended to plug in your USB
pen drive before using this function.
