39
English
N3150TM-ITX

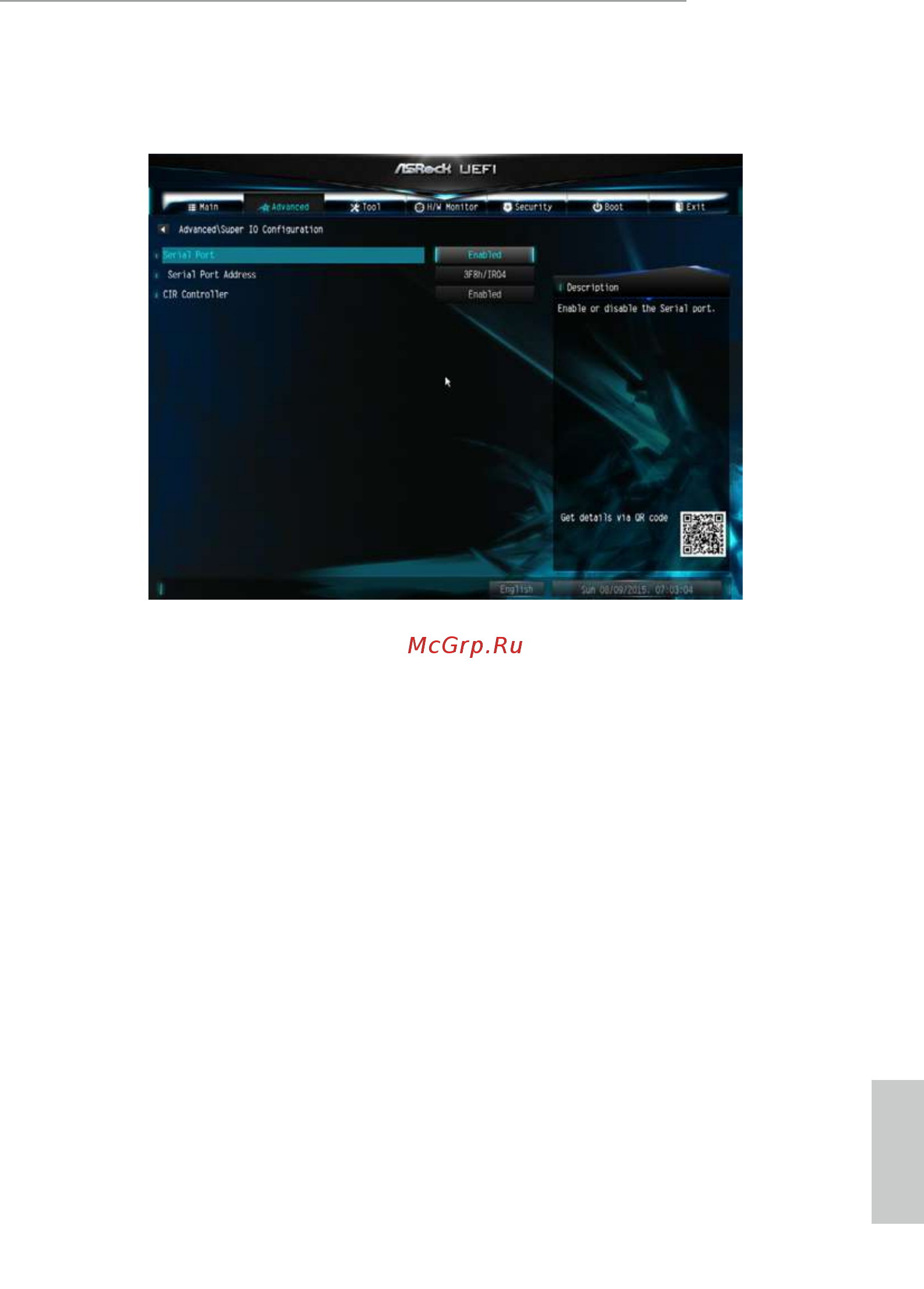

4.3.5 Super IO Conguration
Serial Port 1
Enable or disable the Serial port 1.
Serial Port Address
Select the address of the Serial port.
CIR Controller
Use this item to enable or disable the CIR controller. e default value is [Enabled].
