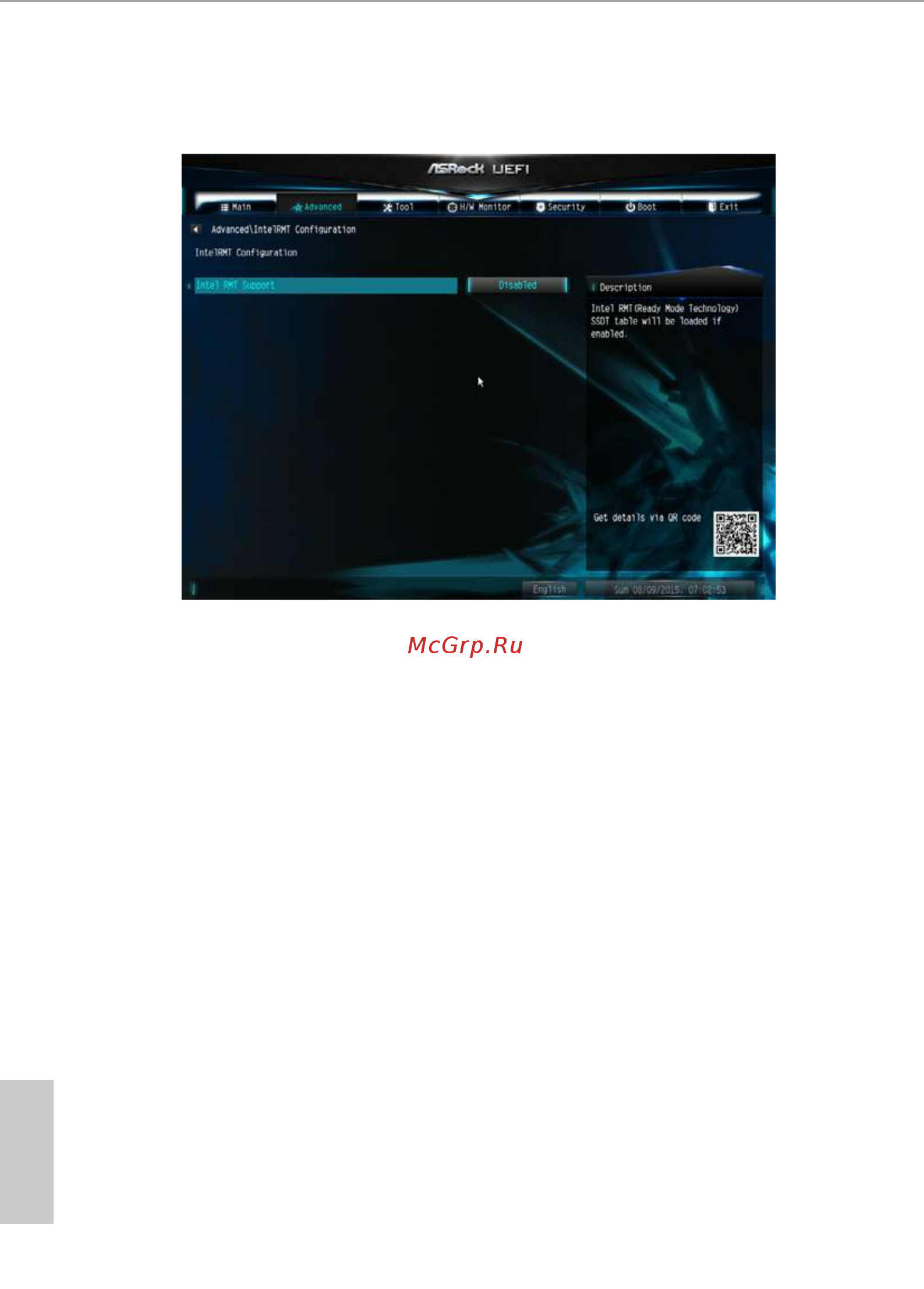

4.3.4 IntelRMT Conguration
Intel RMT Support
Enable to load Intel RMT (Ready Mode Technology) SSDT table.
