2.6 Expansion Slots (PCI and AMR Slots)

There are 2 PCI slots and 1 AMR slot on M810LMR motherboard.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

AMR slot: AMR slot is used to insert ASRock MR card with v.92 Modem functionality.

Installing an expansion card

Step 1. Before installing the expansion card, read the documentation of the

expansion card and make necessary hardware settings for the card.

Step 2. Remove the system unit cover (if your motherboard is already installed in a

chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the screw

for later use.

Step 4. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

2.7 Jumpers Setup

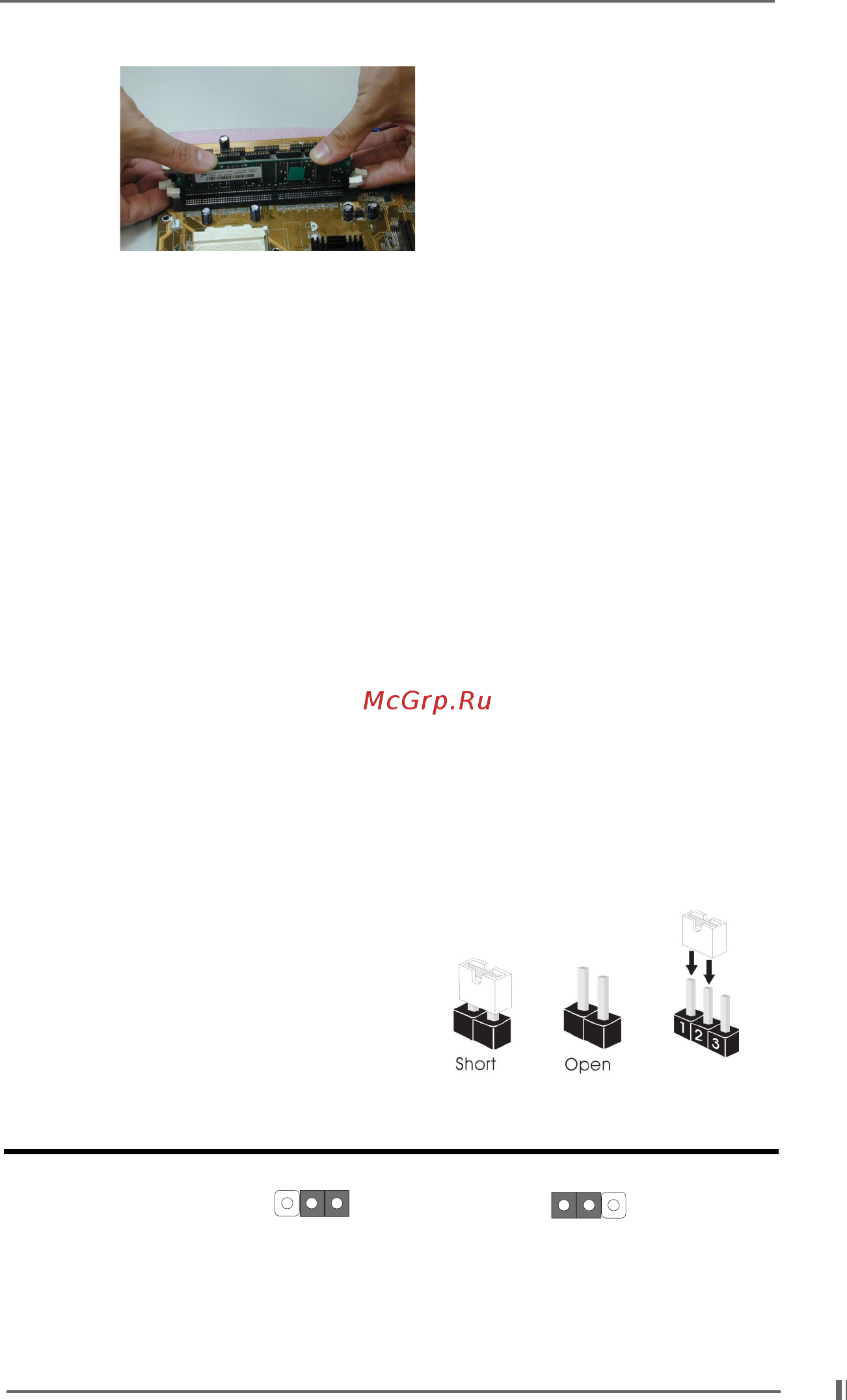

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “SHORT”. If no jumper

cap is placed on the pins, the jumper is

“OPEN”. The illustration shows a 3-pin

jumper whose pin1 and pin2 are “SHORT”.

Jumper Setting

FSB_SEL1

(see p.6 item 26)

Note:The setting of the CPU front side bus frequency of this motherboard is by

means of the adjustment of jumper-setting. Please follow the figures above

to set the CPU front side bus frequency.

FSB 100MHz

2_3

FSB_SEL1

FSB 133MHz

1_2

FSB_SEL1
