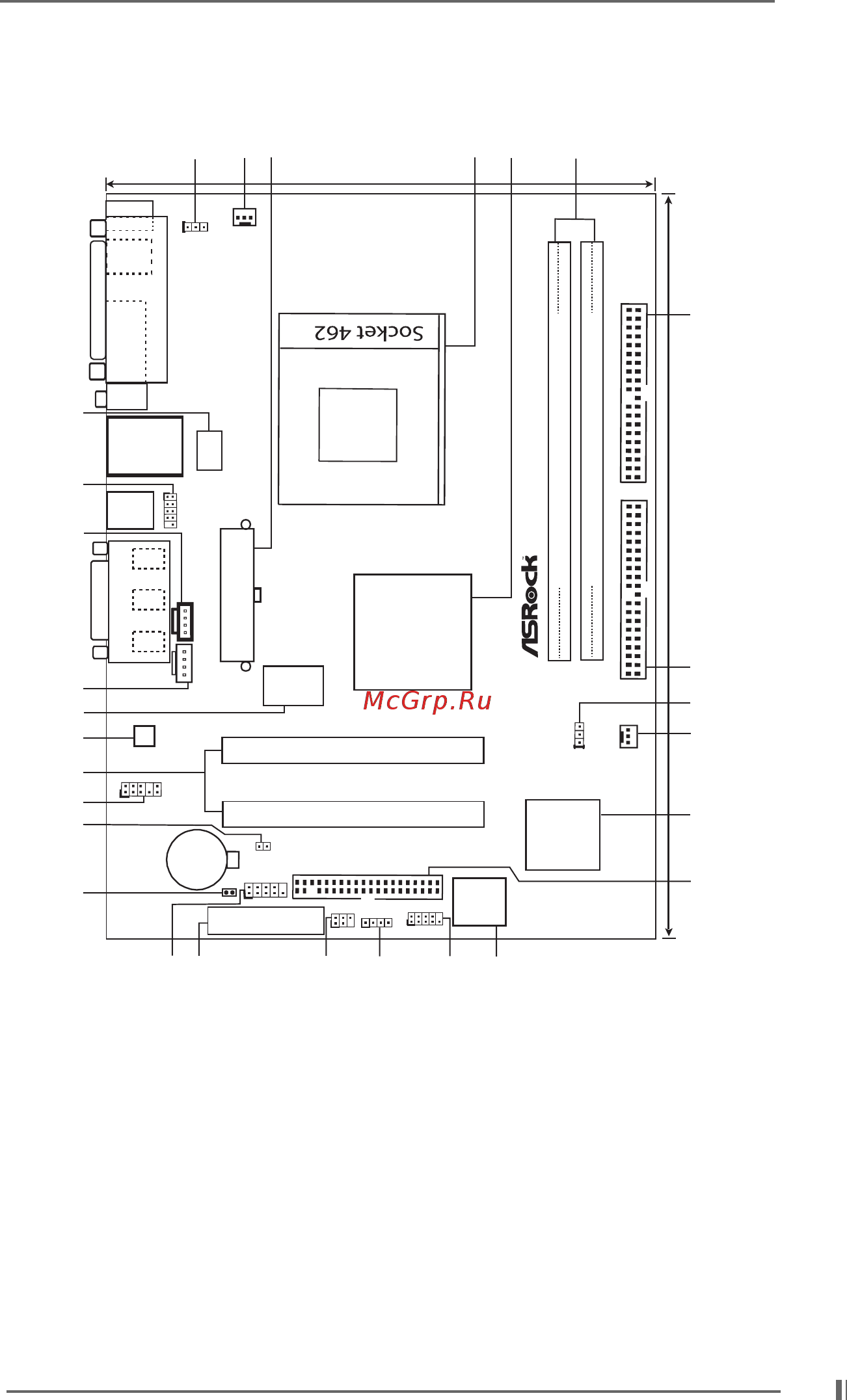

1.3 Motherboard Layout
1 ATX Power Connector (ATXPWR1) 15 External Speaker Connector (SPEAKER 1)
2 CPU Socket 16 South Bridge Controller
3 CPU Fan Connector (CPU_FAN1) 17 Clear CMOS: 2-Pin Jumper (CLRCMOS2 )
4 North Bridge Controller 18 PCI Slots (PCI 1- 2)
5 168-pin SDRAM DIMM Slots (SDR 1- 2) 19 Audio CODEC
6 AMR Slot (AMR1) 20 Front Panel Audio Connector (AUDIO1)
7 Primary IDE Connector (IDE1, Blue) 21 LAN Transformer
8 Secondary IDE Connector (IDE2, Black) 22 PS2_USB_PWR1 Jumper
9 Chassis Fan Connector (CHA_FAN1) 23 Internal Audio Connector: AUX1 (White)
10 Floppy Connector (FLOPPY1) 24 Internal Audio Connector: CD1 (Black)
11 Flash EEPROM 25 Serial Port Connector (COM1 header)
12 System Panel Connector (PANEL1) 26 FSB Select Jumper (FSB_SEL1)
13 Clear CMOS: Solder Points (CLRCMOS1) 27 USB 1.1 Header (JUSB23, White)*
14 Infrared Module Connector (IR1) 28 PCI LAN Controller
PCI 2
M810LMR
Audio CODEC
`
CMOS
Battery
PCI 1
VIA
South
Bridge
SPEAKER1
IR1
1
1
2MB
BIOS
FLOPPY1
AMR1
PAN EL 1
HDLED RESET
PLED PWRBTN
1
IDE1
CLRCMOS1
Mic
In
GAME AUDIO1
USB01
LAN
USB23
Mic in
Line out
GAME AUDIO1
PARALLEL PORT
PS/2
Mouse
PS/2
Keyboard
VGA1
Line
In
Line in
PS2_USB_PWR1
CPU_FAN1
1
ATXPWR1
VIA
KL133A
Chipset
PCI LAN
VIA 6105
LAN
Transformer
10
SDR DIMM1 (64 bit, 168-pin module)
32
SDR DIMM2 (64 bit, 168-pin module)
FSB_SEL1
3
11
19
1
AUDIO1
20
CHA_FAN1
9
IDE2
1
AUX1
CD1
17.8cm (7.0 in)
24.4cm (9.6 in)
22
5
23
24
27
2
1
4
16
26
8
7
1
COM1
10
12
15
14
6
17
13
18
CLRCMOS2
25
JUSB23
1
21
28
