ASRock M810LMR [7/25] Asrock i

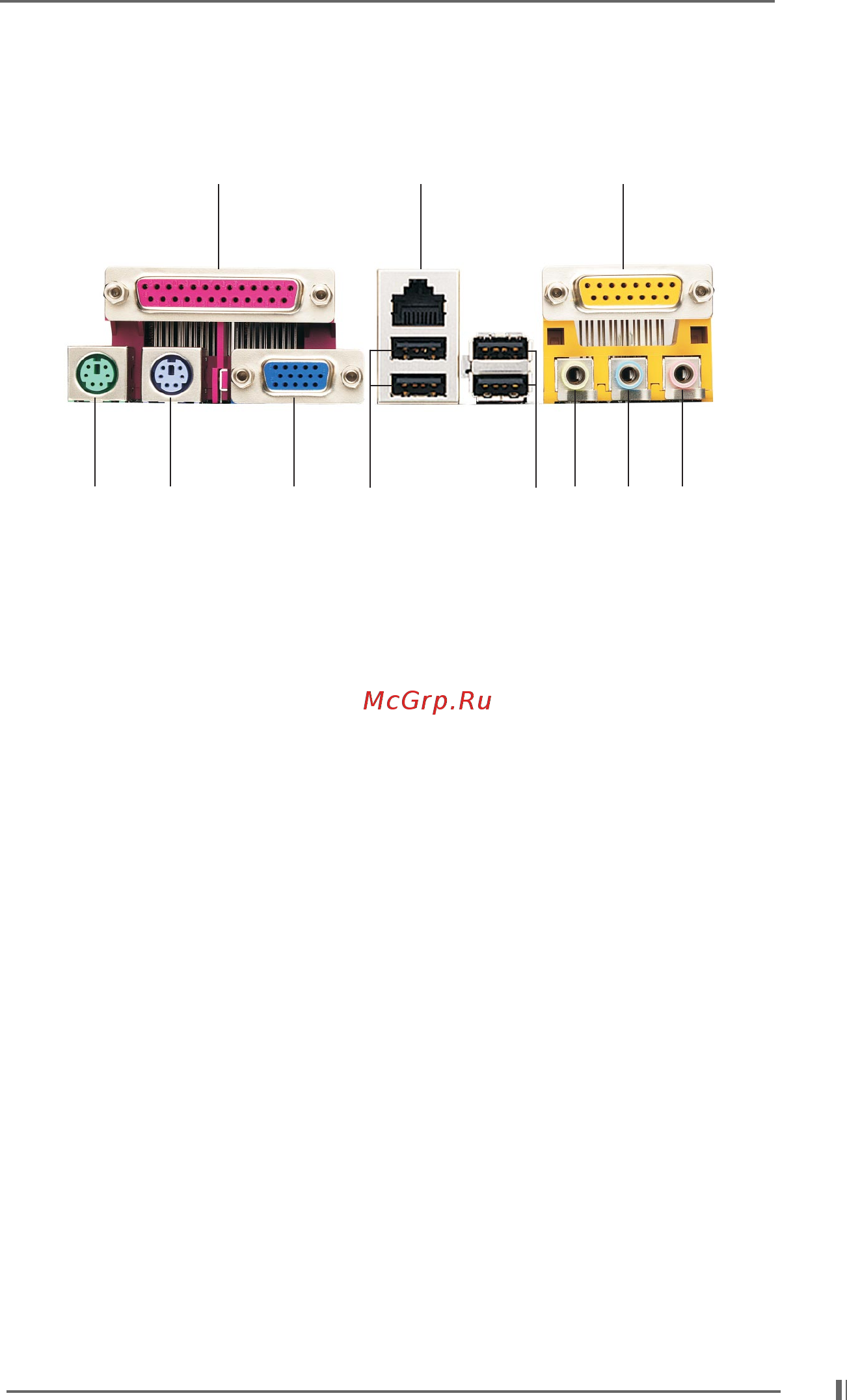

1.4 ASRock I/O

1 Parallel Port 6 Line Out (Lime)

2 RJ 45 Port 7 USB 1.1 Ports (USB2,3) *

3 Game Port 8 USB 1.1 Ports (USB0,1)

4 Microphone (Pink) 9 VGA Port

5 Line In (Light Blue) 10 PS/2 Keyboard Port (Purple)

11 PS/2 Mouse Port (Green)

NOTE: The USB 1.1 header (JUSB23, see page 6, item 27) is shared with the USB 1.1

ports 2,3 (see above, item 7) on the rear panel. When using the front panel

USB ports by attaching the front panel USB cable to JUSB23 header, the rear panel

USB 1.1 ports 2,3 will not be able to function. In that case, you may cover the part of

USB 1.1 ports 2,3 on the I/O shield with the “Front USB Header Connected” sticker

enclosed in the package of M810LMR motherboard.

10 9

76 5 4
