ASRock M810LMR [11/25] Connectors

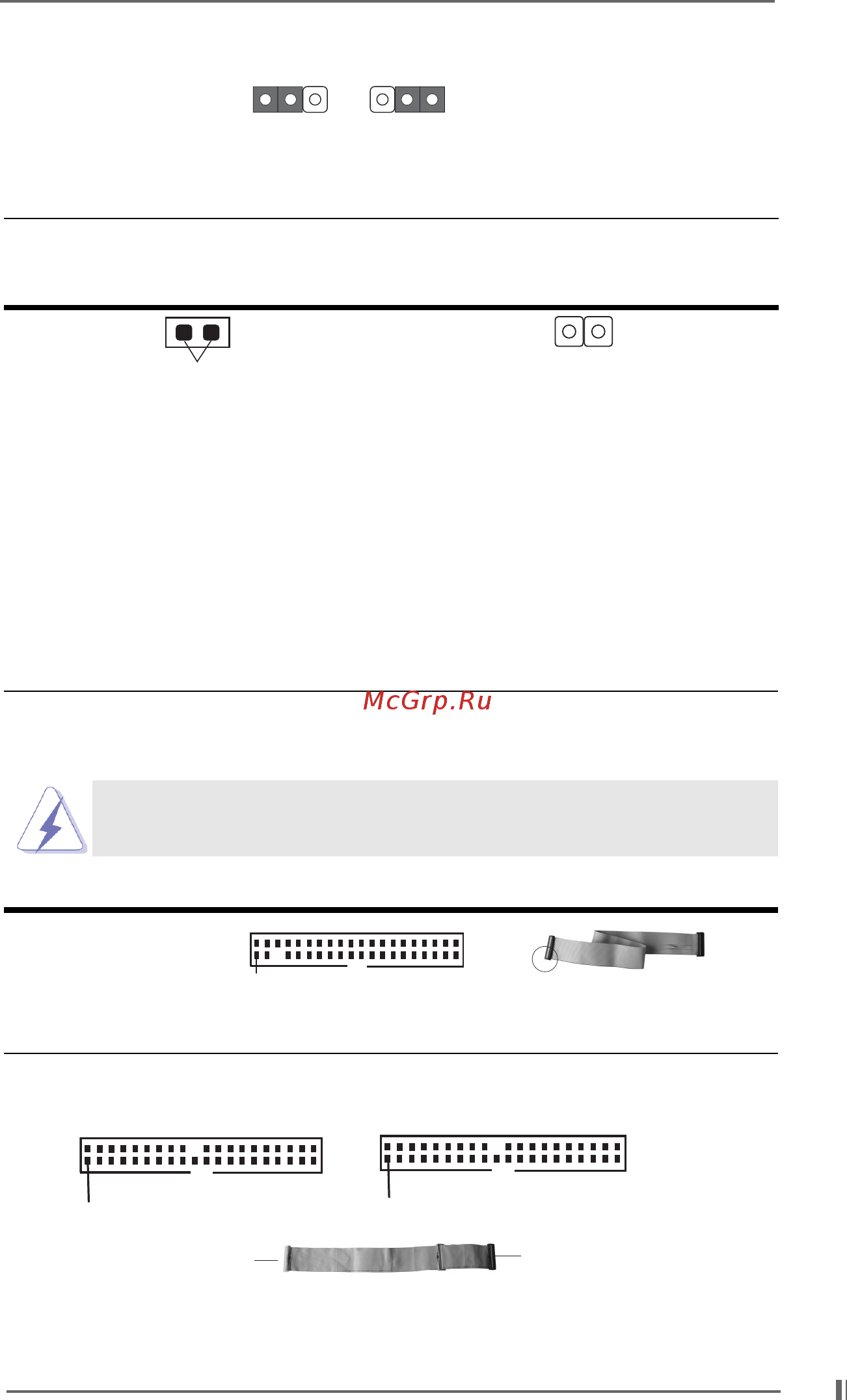

PS2_USB_PWR1 Short pin2, pin3 to enable

(see p.6 item 22) +5VSB (standby) for PS/2 or

USB wake up events.

Note:To select +5VSB, it requires 2 Amp and higher standby current provided by

power supply.

Clear CMOS

CLRCMOS1 CLRCMOS2

(see p.6 item 13) (see p.6 item 17)

Note:CLRCMOS1 and CLRCMOS2 allow you to clear the data in CMOS. The data in

CMOS includes system setup information such as system password, date,

time, and system setup parameters. There are 2 ways for you to clear and

reset the system parameters to the default setup. Please turn off the computer

and unplug the power cord, then you may either short the solder points on

CLRCMOS1 by using metal material, e.g., a paper clip, for 3 seconds; or you

may use a jumper cap to short the pins on CLRCMOS2 for 3 seconds. Please

remember to remove the paper clip or the jumper cap after clearing the CMOS.

2.8 Connectors

Connectors are NOT jumpers. DO NOT place jumper caps over

these connectors.

Connector Figure Description

FDD connector

(33-pin FLOPPY1)

(see p.6 item 10)

Note: Match the red marking on the floppy ribbon cable with Pin1.

Primary IDE connector (Blue) Secondary IDE connector (Black)

(39-pin IDE1, see p.6 item 7) (39-pin IDE2, see p.6 item 8)

80-Pin ATA 100 cable

FLOPPY1

Pin1

Red marking

solder points

Connect to the IDE devices

Connect to the motherboard

BLUE

BLACK

IDE1

PIN1

IDE2

PIN1

2-pin jumper

+5V

1_2

+5VSB

2_3
