Note: To optimize compatibility and performance, please connect your hard disk
drive to the primary IDE connector (IDE1, blue) and CD-ROM to the
secondary IDE connector (IDE2, black).

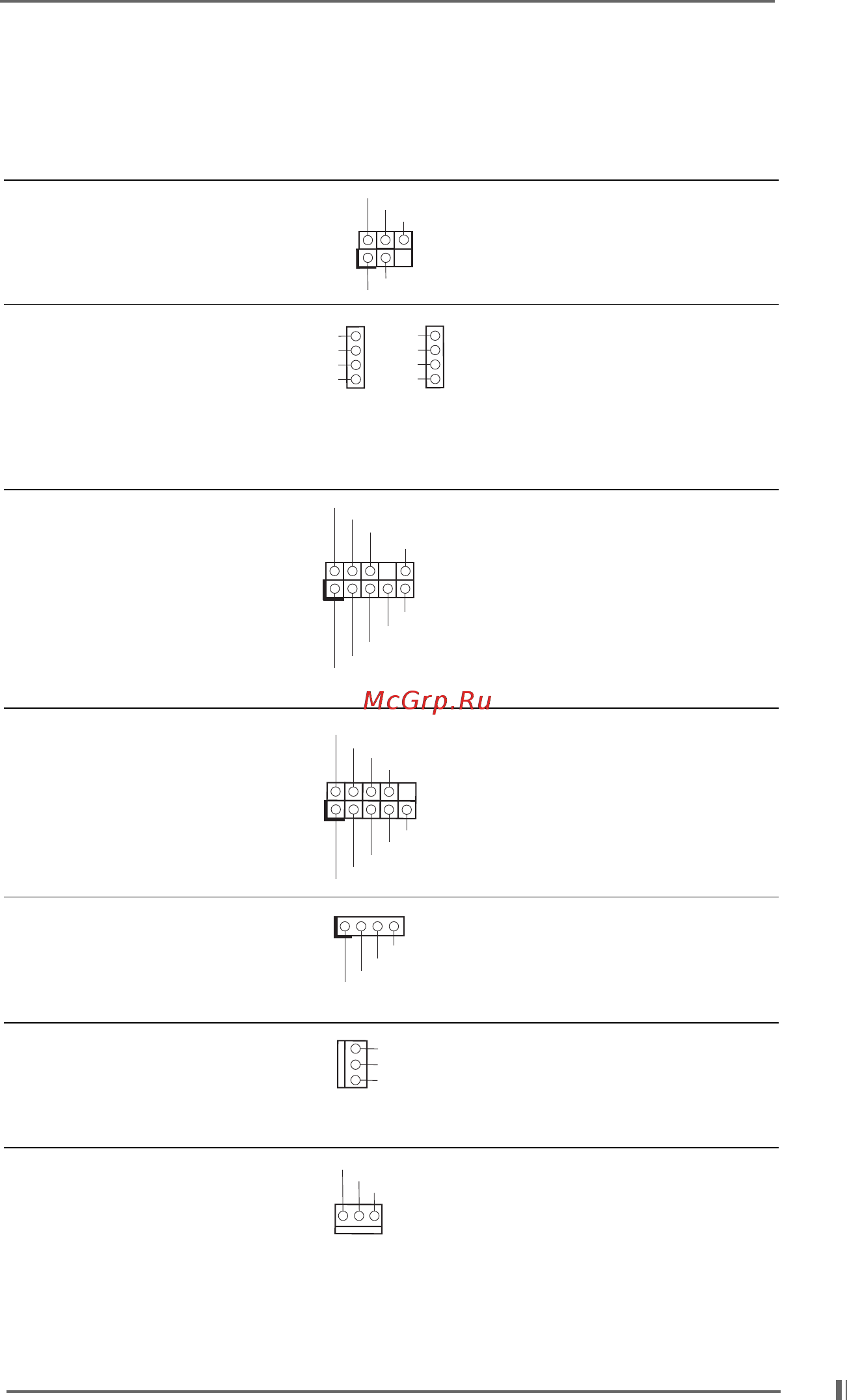

Infrared module connector This connector supports an
(5-pin IR1) optional wireless transmitting
(see p.6 item 14) and receiving infrared module.
Internal audio connectors These connectors allow you
(4-pin CD1, 4-pin AUX1) to receive stereo audio input
(CD1: see p.6 item 24) from sound sources such as
(AUX1: see p.6 item 23) a CD-ROM, DVD-ROM, TV
tuner card, or MPEG card.
Front panel audio connector This is an interface for front
(9-pin AUDIO1) panel audio cable that allows
(see p.6 item 20) convenient connection and
control of audio devices.
System panel connector This connector accommo-
(9-pin PANEL1) dates several system front
(see p.6 item 12) panel functions.
External speaker connector This connector allows you to
(4-pin SPEAKER 1) attach to an external speaker.
(see p.6 item 15)
Chassis fan connector Connect the fan cable to the
(3-pin CHA_FAN1) connector matching the black
(see p.6 item 9) wire to the ground pin.
CPU fan connector Connect the fan cable to the
(3-pin CPU_FAN1) connector matching the black
(see p.6 item 3) wire to the ground pin.
CD1AUX1
AUX-R
GND
GND
AUX-L
CD-R
GND
GND
CD-L
GND
DUMMY
+5VA
BACKOUT-R
BACKOUT-L
AUD-OUT-L
AUD-OUT-R
MIC-POWER
MIC
1
GND
PWRBTN#
PLED-
PLED+
DUMMY
RESET#
GND
HDLED+
HDLED-
1
GND
+12V
CPU_FAN_SPEED
+5V
DUMMY
DUMMY
SPEAKER
1
GND
+12V
CHA_FAN_SPEED
DUMMY
GND
+5V
IRTX
IRRX
1
