ASRock Mini Series (Bay Trail-D) [11/70] Motherboard layout
![ASRock Mini Series (Bay Trail-D) [11/70] Motherboard layout](/views2/1692992/page11/bgb.png)
4
English

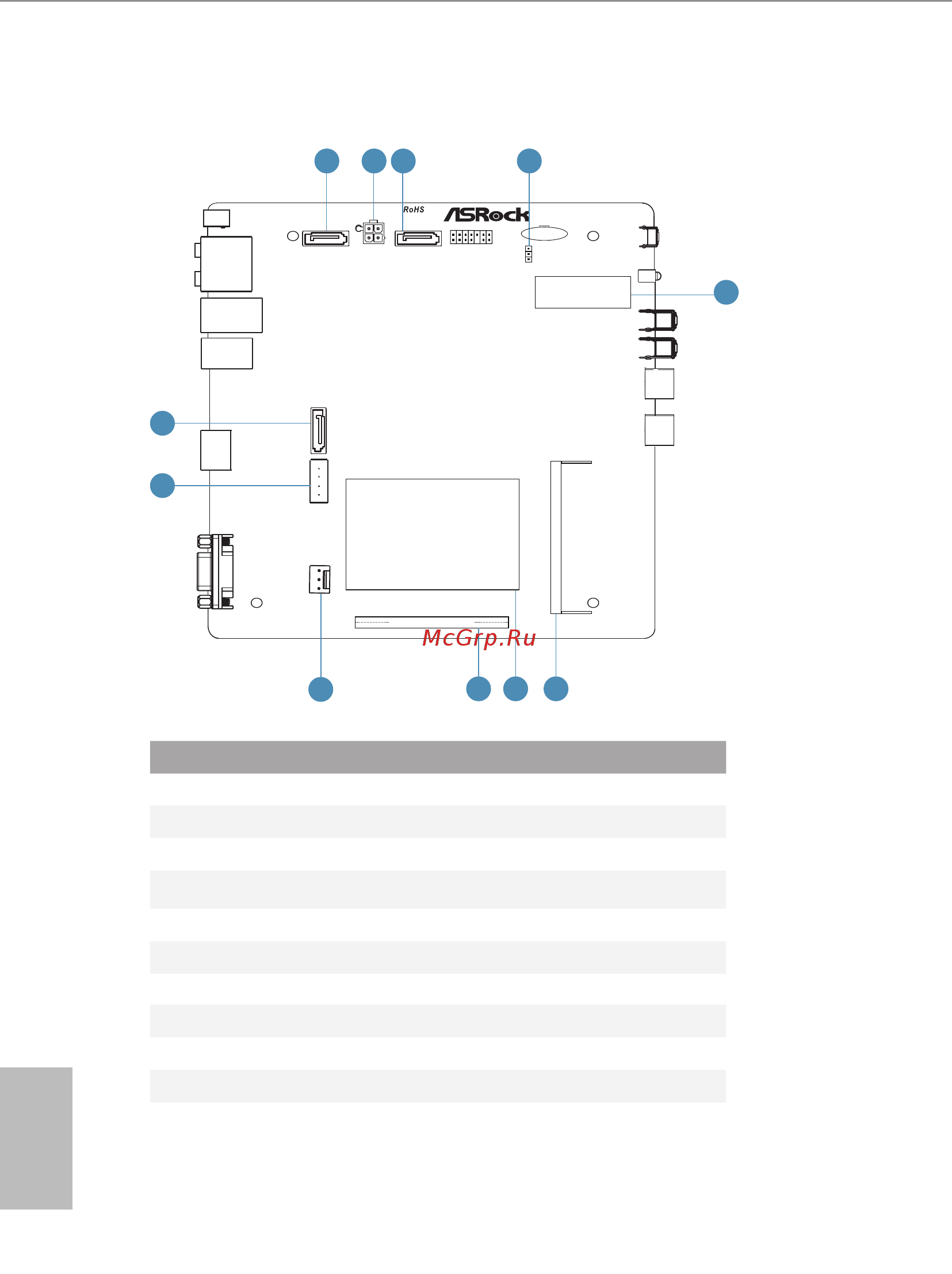

1.3 Motherboard Layout
DDR3_B1
Q1900-HT
DDR3_A1
MINI_PCIE1
No. Description
1 SATA 3.0 connector: For HDD SATA data cable
2 ATX5V output power connector for slim ODD & 2.5” HDD
3 SATA 2.0 connector: For the ODD’s SATA data cable
4 Clear CMOS jumper
5 Mini-PCI Express expansion slot: For the WiFi module
6 SO-DIMM Slot (DDR3_A1)
7 Heatsink
8 SO-DIMM Slot (DDR3_B1)
9 Chassis fan connector
10 +5V output power connector: For the second SATA 2.5” HDD
11 SATA 3.0 connector: For the second HDD’s SATA data cable
