ASRock NUC BOX 3160 [13/37] How to remove the m wifi module optional
![ASRock NUC BOX 3160 [13/37] How to remove the m wifi module optional](/views2/1693784/page13/bgd.png)
8 9
English

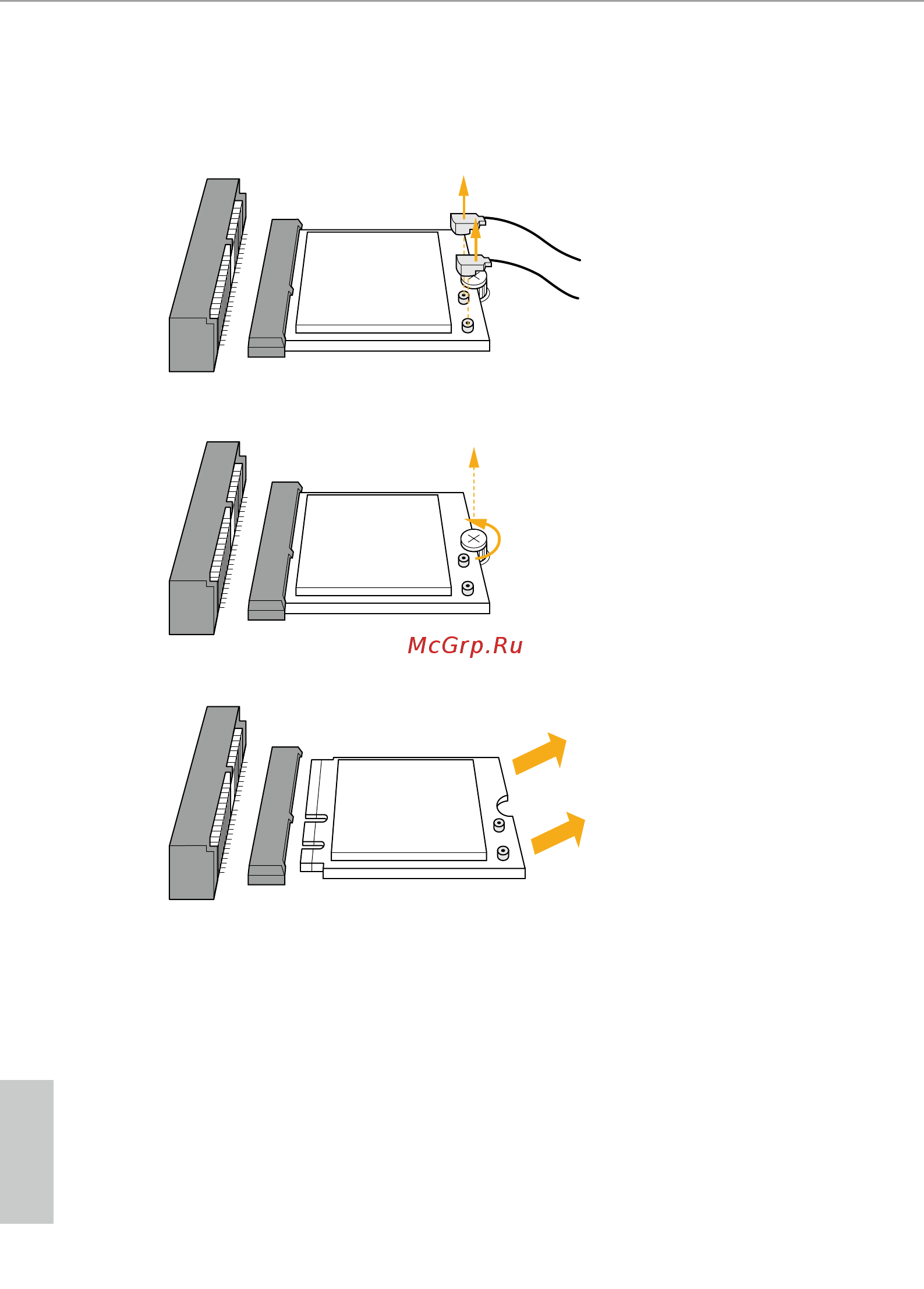

3.2 How to Remove the M.2 WiFi Module (Optional)
1. Disconnect the two antenna cables from the M.2 WiFi Module by liing the clips.
2. Remove the screw that holds the M.2 WiFi Module in place.
3. Carefully pull the M.2 WiFi Module from the slot and remove it.
