ASRock NUC BOX 3160 [17/37] How to install the memory modules ddr3 low voltage 1 5v
![ASRock NUC BOX 3160 [17/37] How to install the memory modules ddr3 low voltage 1 5v](/views2/1693784/page17/bg11.png)
12 13
English

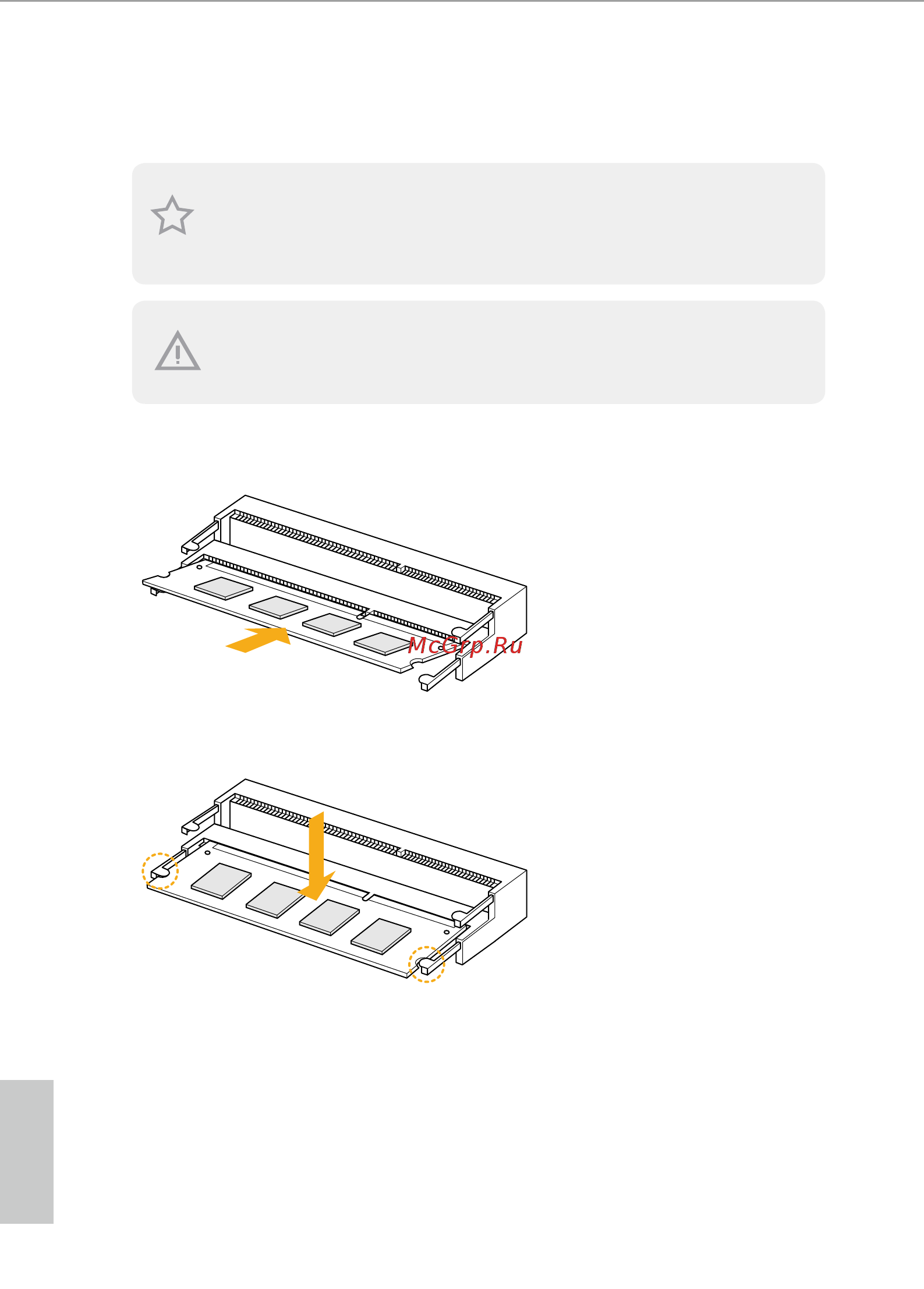

3.5 How to Install the Memory Modules
(DDR3 Low Voltage (1.35V))
1. Carefully insert the SO-DIMM memory modules into the slot at a 30-degree angle.
2. Push down until the modules snap into place.
1. e NUC BOX 3160 requires DDR3L SO-DIMM (1.35V).
2. For dual channel conguration, you always need to install identical (the same brand,
speed, size and chip-type) DDR3L SO-DIMM pairs.
e SO-DIMM only ts in one correct orientation. It will cause permanent damage to the
motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
