NUC BOX 3160
24 25
English

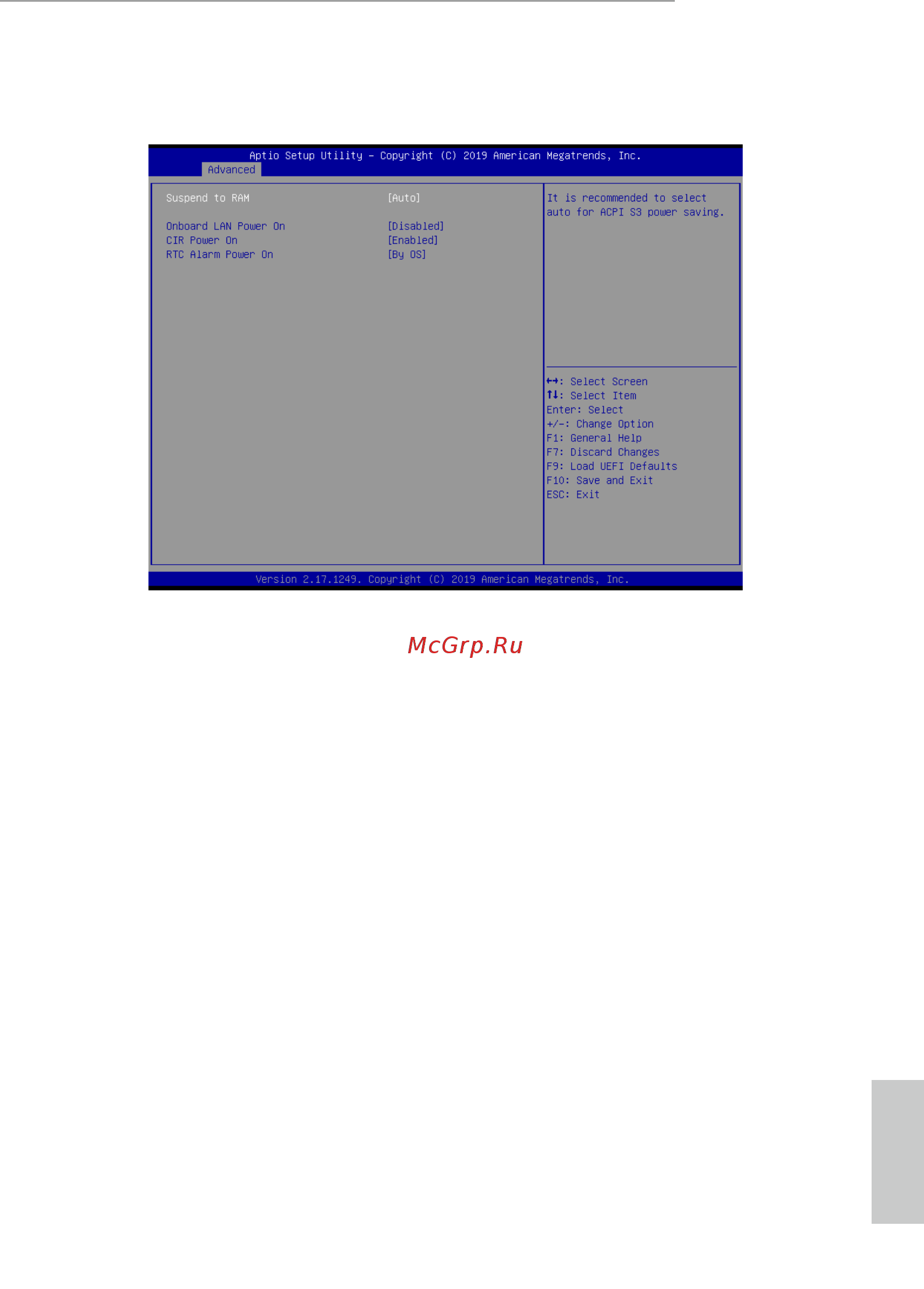

5.3.5 ACPI Conguration
Suspend to RAM
It is recommended to select auto for ACPI S3 power saving.
Onboard LAN Power On
Use this item to enable or disable Onboard LAN to turn on the system from the
power-so-o mode.
CIR Power On
Enable or disable the CIR Power On feature.
RTC Alarm Power On
Allow the system to be waked up by the real time clock alarm. Set it to By OS to let
it be handled by your operating system.
