ASRock NUC BOX 3160 [23/37] Main screen
![ASRock NUC BOX 3160 [23/37] Main screen](/views2/1693784/page23/bg17.png)
18 19
English

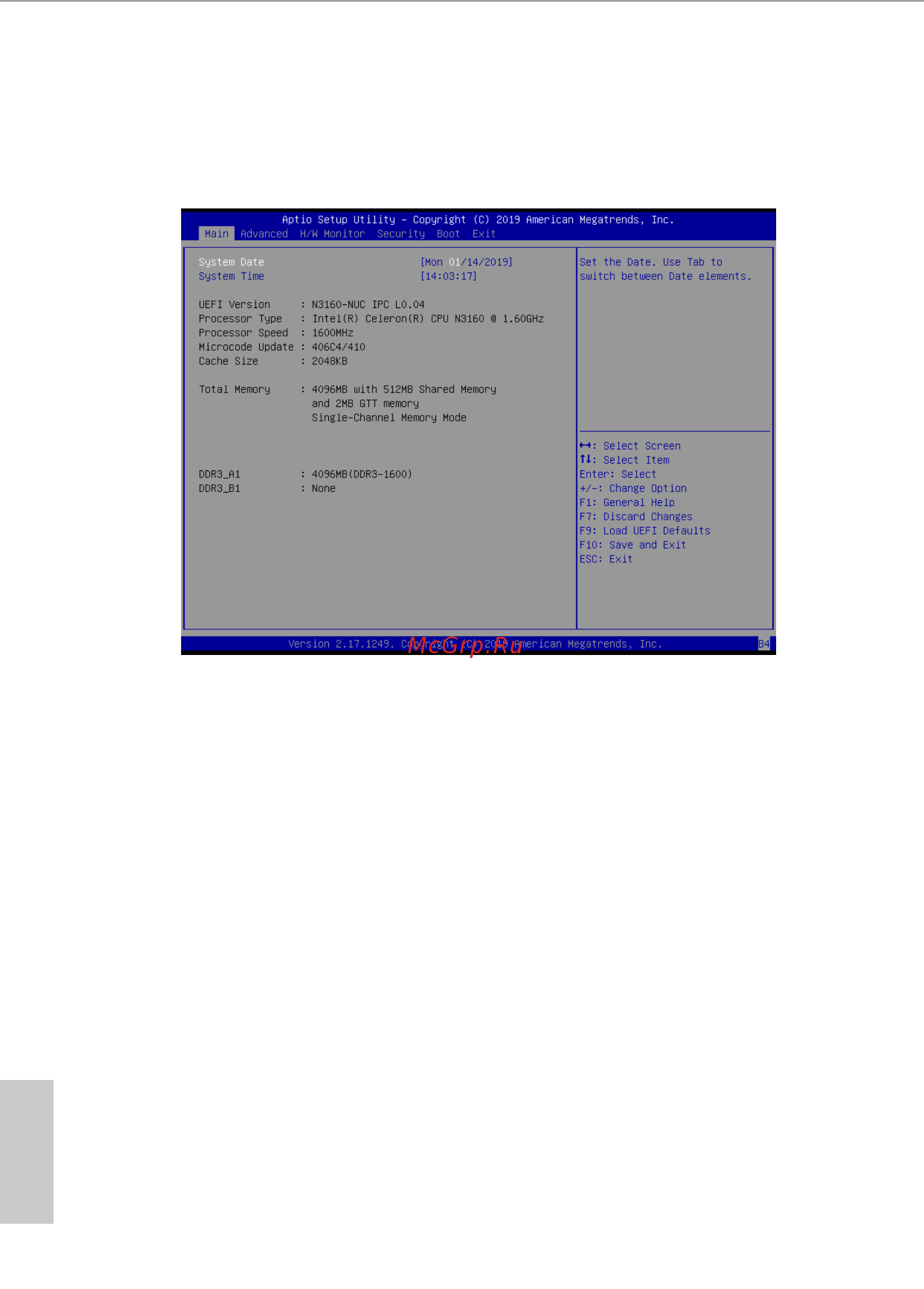

5.2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and
display the system overview.
