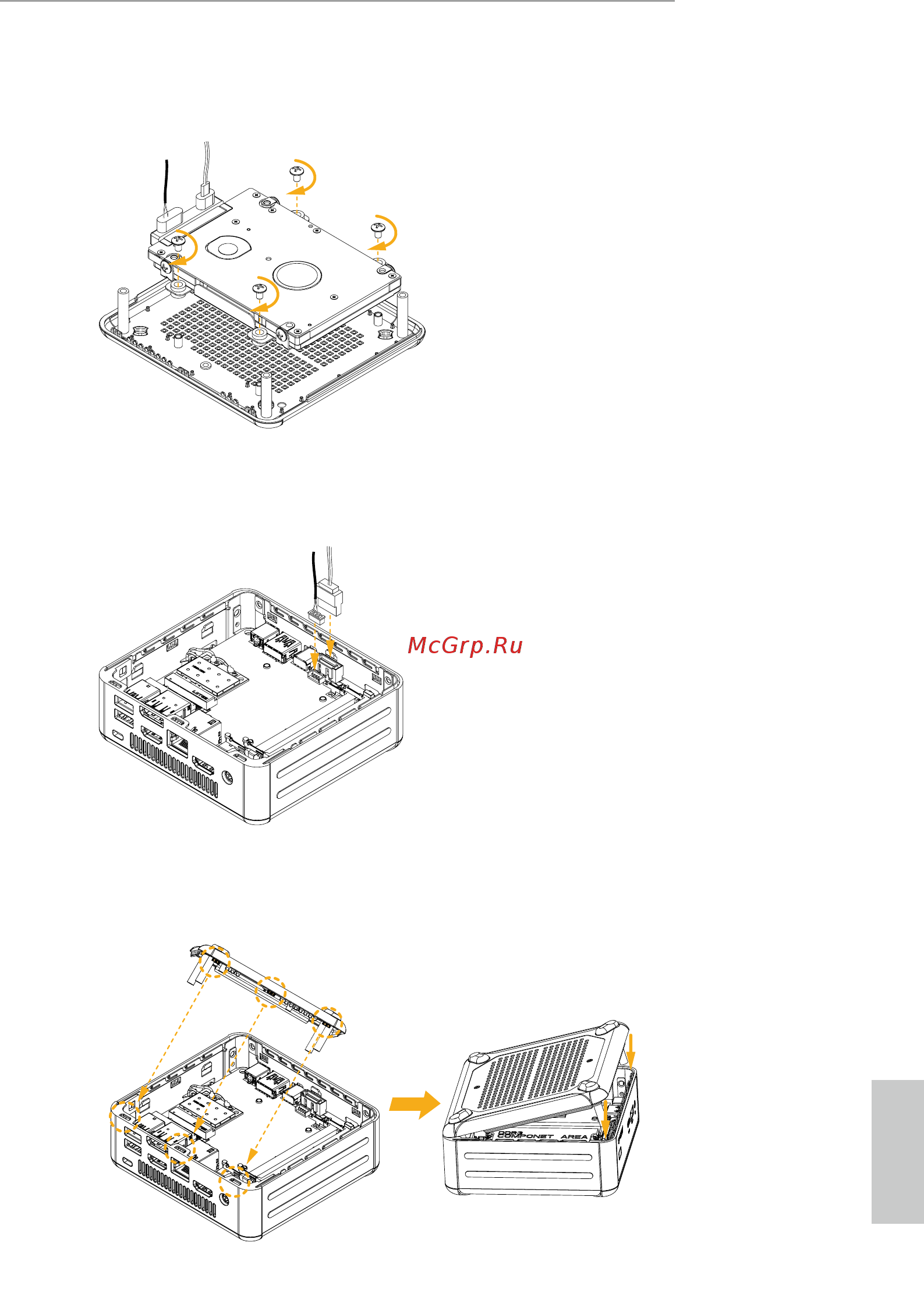

4. Attach the HDD cage to the bottom panel and secure it using the four screws.
5. Connect the SATA Data and Power Cable to the motherboard and reinstall the bottom
panel.
6. Align the three latches on the bottom panel with the three latch holes on the chassis.
en reinstall the bottom panel until it
7. clicks into place.
