14 15
English

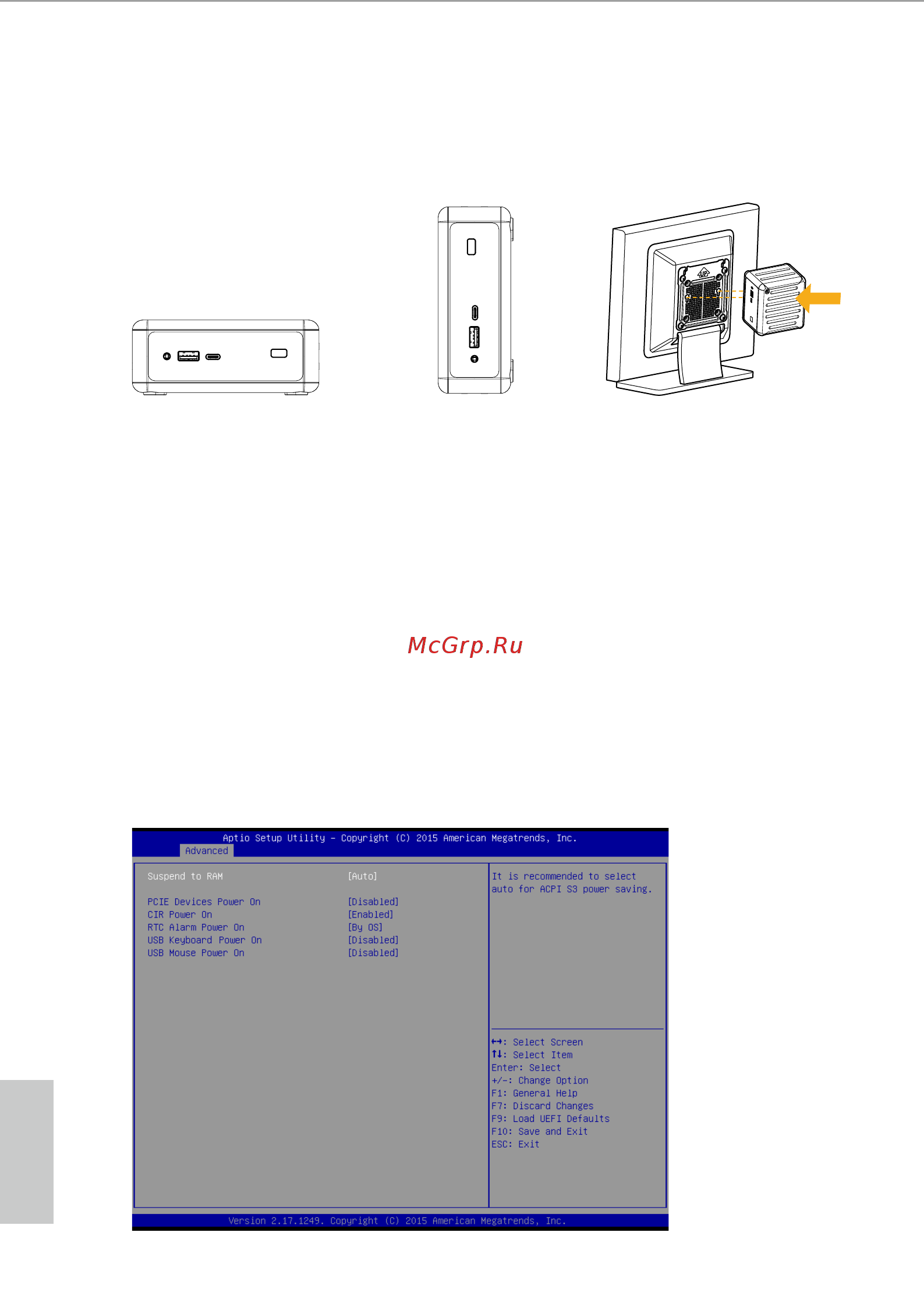

3.7 Positions of the NUC BOX 3160
e NUC BOX 3160 can be placed in vertical or horizontal position.
*Please note that keeping the NUC BOX 3160 in a vertical position will ensure better
cooling performance.
USB Power On Function:
USB Power On Function allows system power on via USB keyboard/mouse.
is function is useful when the NUC BOX 3160 is mounted behind your display/TV.
To enable USB Power On Function:
1. Enter BIOS by pressing <F2> or <Del> during device startup.
2. Select “Advanced > ACPI Conguration” from the menu.
3. Set “USB Keyboard Power On” and “ USB Mouse Power On” settings to “Enabled”.
4. Press F10 to Save and Exit.
Vertical Position Wall-mountedHorizontal Position
