D15XXD4U Series
32 33
English

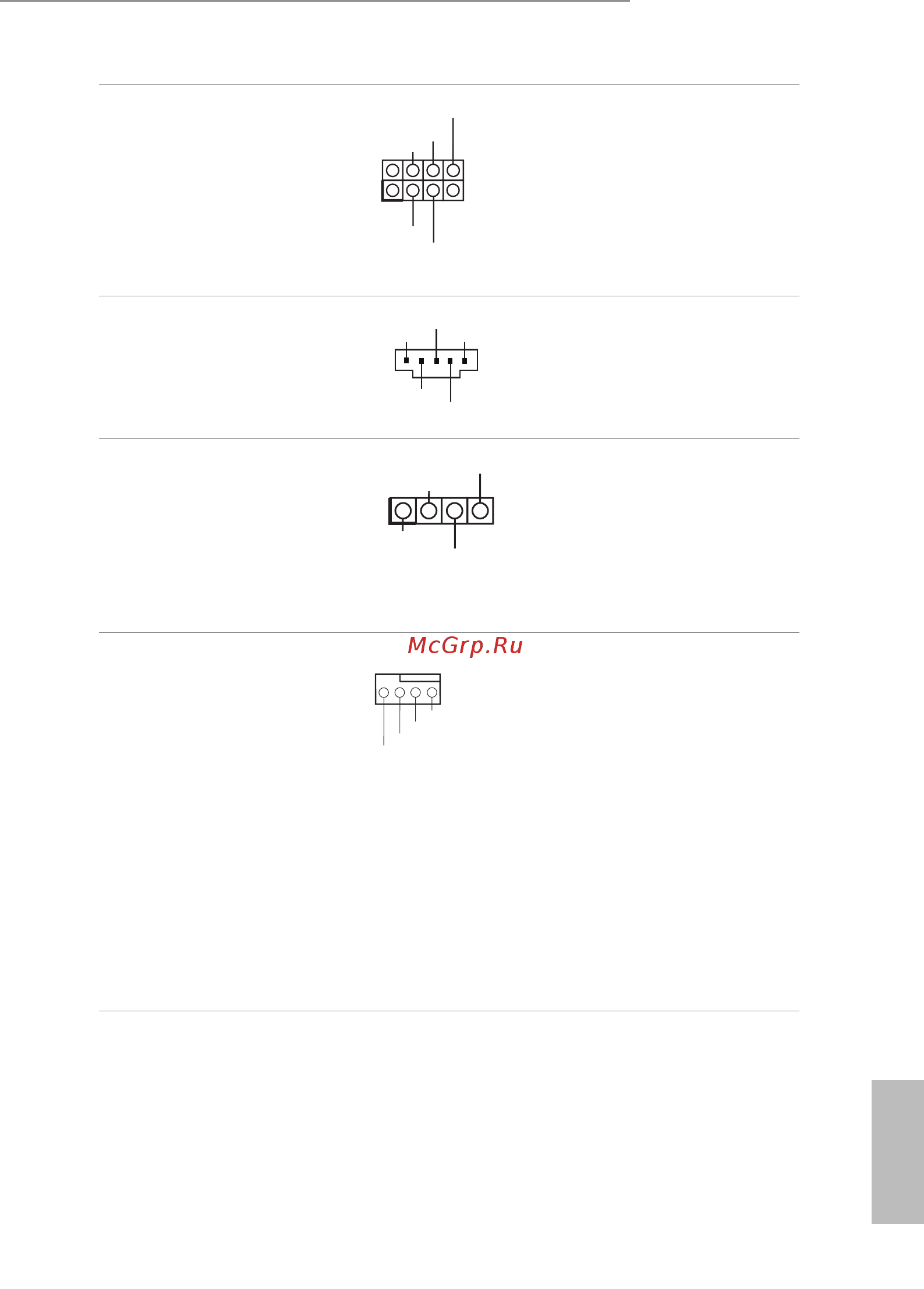

Serial General Purpose
Input/Output Headers
(7-pin SATA_SGPIO1)
(See p.6, 7, 10 or 13)
(7-pin SATA_SGPIO2)
(See p.6, 7, 10 or 13)
1
SLOAD
SCLOCK
GND
GND
SDATAOUT
These headers support Serial
Link interface for onboard
SATA connections.
PSU SMBus
(PSU_ SMB1)
(See p.6, 7, 10 or 13)
+3VSB
1
GND
ALERT
SMBCLK
SMBDATA
PSU SMBus monitors the
status of the power supply, fan
and system temperature.
LAN LED Connector
(LED_LAN1_2)
(See p.6, 7 or 10)
*For D1521D4U-2L+,
D1541D4U-2L+ and D1541D4U-
2T8R only
1
LAN1_LINK
LED_PWR
LED_PWR
LAN2_LINK
is 4-pin connector is used
for the front LAN status
indicator.
Front and Rear
Fan Connectors
(4-pin FRNT_FAN1)
(See p.6, 7, 10 or 13)
(4-pin FRNT_FAN2)
(See p.6, 7, 10 or 13)
(4-pin FRNT_FAN3)
(See p.6, 7, 10 or 13)
(4-pin FRNT_FAN4)
(See p.6, 7, 10 or 13)
(4-pin R EAR _FAN1)
(See p.6, 7, 10 or 13)
FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE
GND
4 3 2 1
Please connect the fan cables to
the fan connectors and match
the black wire to the ground
pin. All fans supports Fan
Control.
