D15XXD4U Series
50 51
English

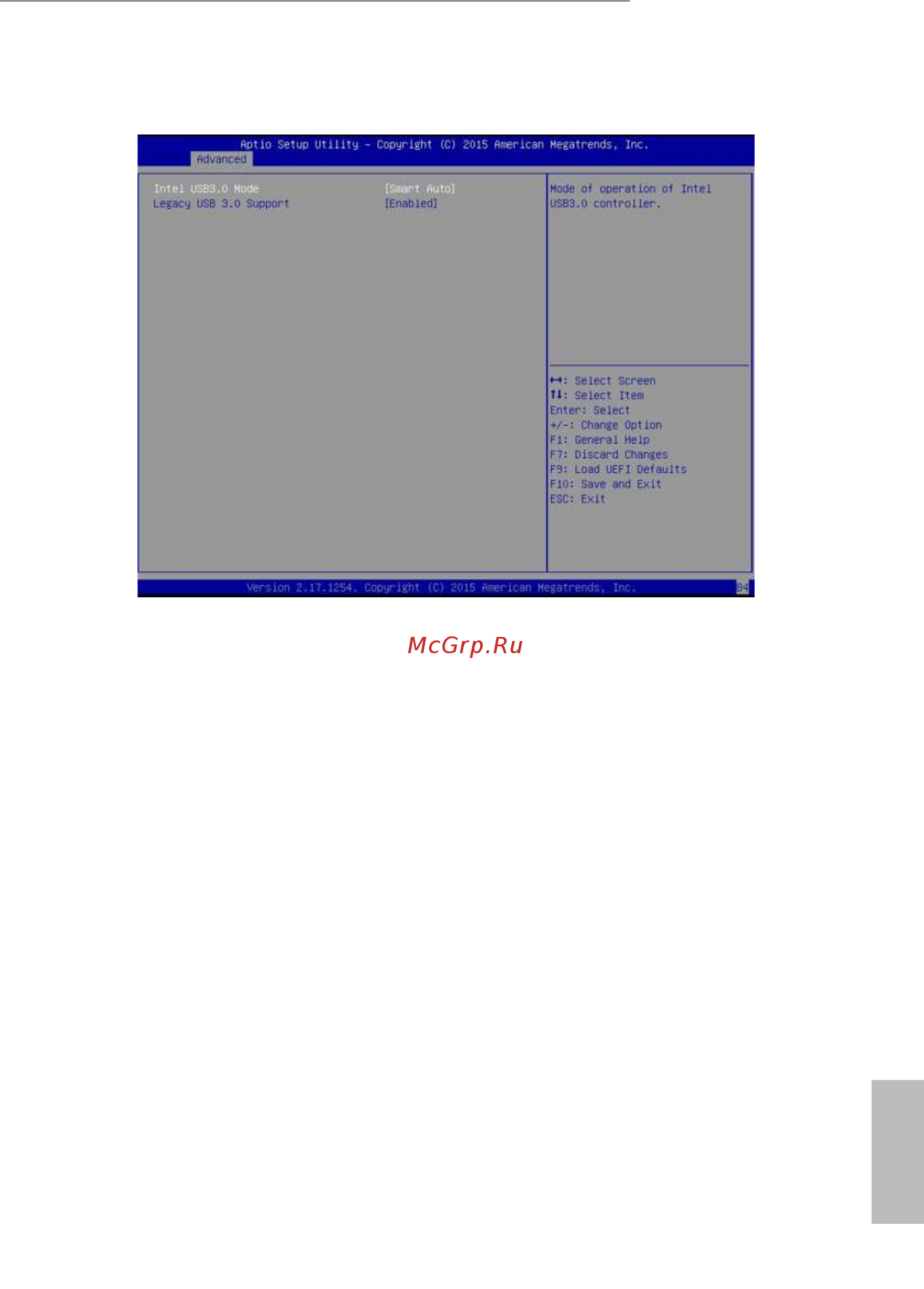

3.3.5 USB Conguration
Intel USB3.0 Mode
Use this item to select the mode of operation of Intel USB 3.0 controller. Conguration
options: [Enabled], [Disabled], [Auto] and [Smart Auto]. If [Auto] is selected, all USB ports
work as USB3.0 aer boot to OS. If [Smart Auto] is selected, all USB ports work as USB3.0
aer boot to OS and work as USB2.0 in deep sleep stages.
Legacy USB 3.0 Support
Use this option to enable or disable legacy support for USB devices. e default value is
[Enabled].
