D15XXD4U Series
68 69
English

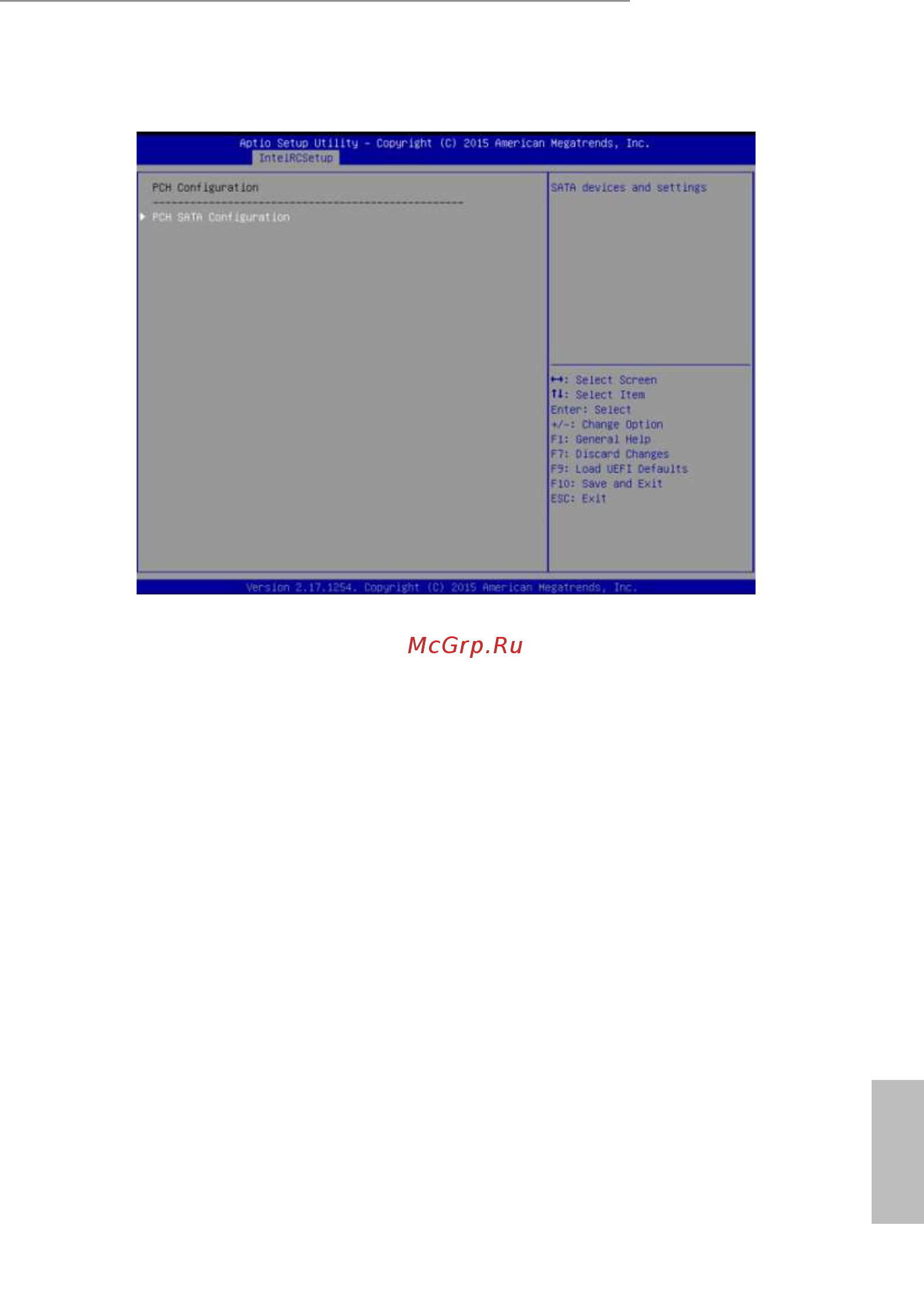

3.4.5 PCH Conguration
PCH SATA Conguration
SATA devices and settings
SATA Controller
Use this item to enable or disable SATA Controller.
SATA Mode Selection
Identify the SATA port is connected to Solid State Drive or Hard Disk Drive.
Support Aggressive Link Power Mgmt
Use this item to enable or disable SALP.
SATA Port 0 / 1 / 2 / 3 / 4 / 5
Hot Plug
Designates this port as Hot Plugglable.
Conguration as External SATA
Use this item to congure port as External SATA (eSATA).
