D15XXD4U Series
66 67
English

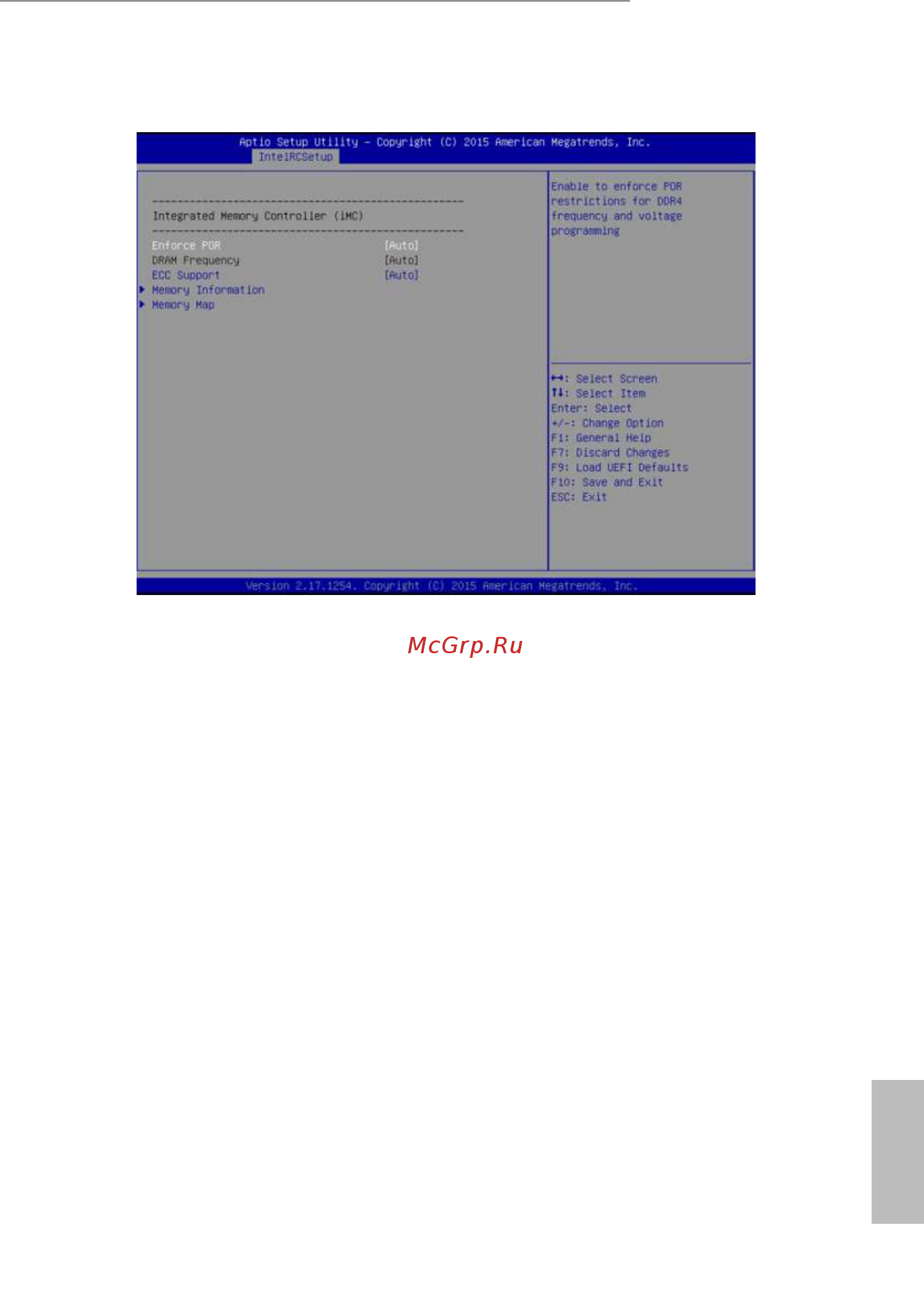

3.4.3 Memory Conguration
Enforce POR
Enable to enforce POR restrictions for DDR4 frequency and voltage programming.
DRAM Frequency
If [Auto] is selected, the motherboard will detect the memory module(s) inserted and
assign the appropriate frequency automatically.
ECC Support
Use this item to enable or disable DDR ECC Support.
Memory Information
Displays memory topology with DIMM population information.
Memory Map
Set memory mapping settings.
Channel Interleaving
Select to congure Channel Interleaving settings.
Rank Interleaving
Select to congure Rank Interleaving settings.
