D15XXD4U Series
86 87
English

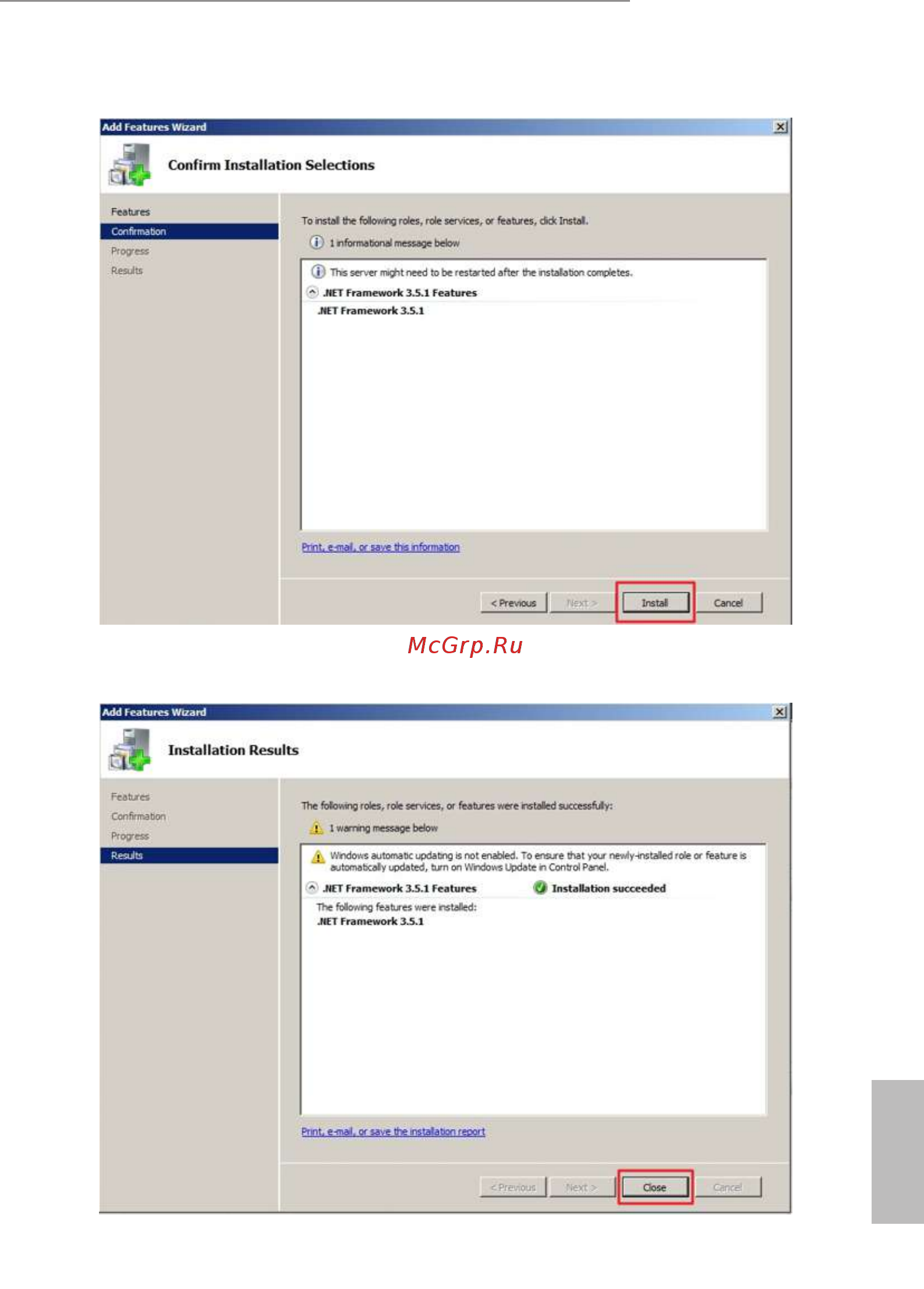

5. Click Install to start installing .Net Framework 3.5.1.
6. Aer the installation completes, click Close.
