18 19
English

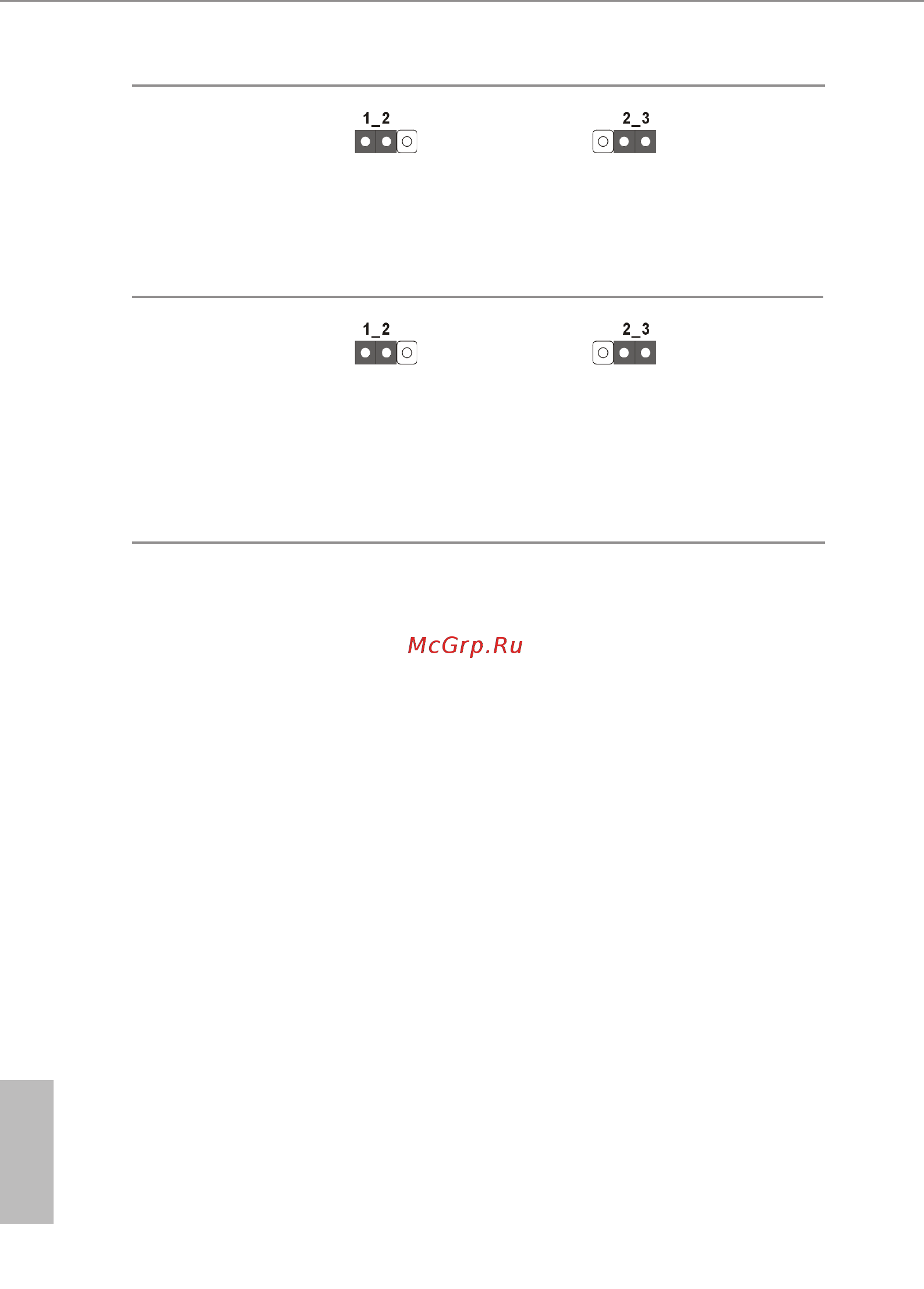

SATA DOM Power
Jumper 2
(3-pin SATA_PWR2)
(see p.6, No. 14)
SATA DOM (SATA_12)
requires 5V power supply
Normal SATA (Default)
SATA DOM (SATA_12)
does NOT require 5V power
supply
USB Selection Jumpers
(3-pin USB_SEL1)
(see p.6, No. 19)
(3-pin USB_SEL2)
(see p.6, No. 18)
1. USB3_2 on the Rear I/O
supports USB3.0 and USB2.0.
2. USB_1_2 header supports
Port 1 only.
1. USB3_2 on the Rear I/O
supports USB3.0 only.
2. USB_1_2 header supports
Port 1 and Port 2.
(Default)
