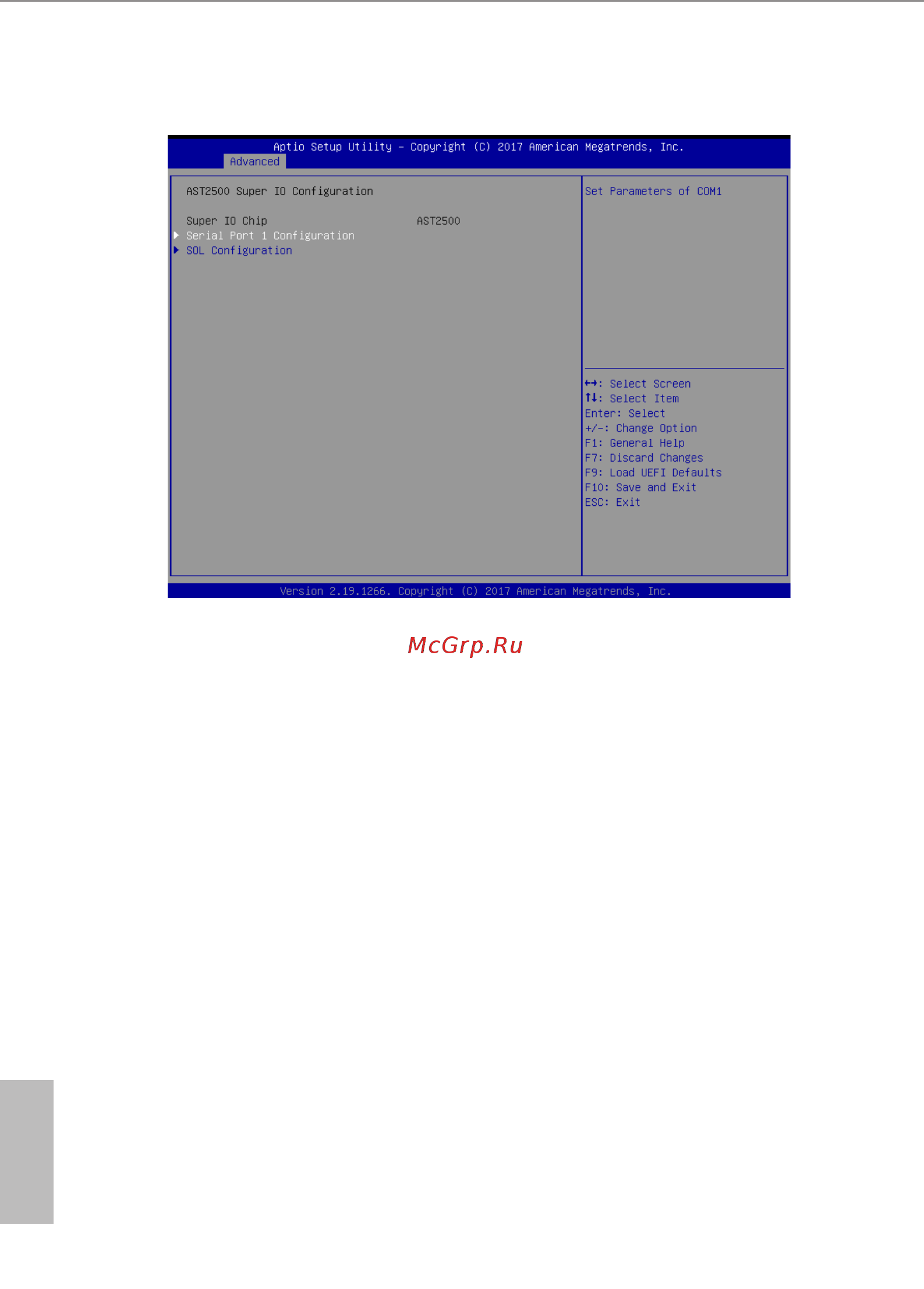

3.3.7 Super IO Conguration
Serial Port 1 Conguration
Use this item to set parameters of Serial Port 1 (COM1).
Serial Port
Use this item to enable or disable the serial port.
Serial Port Address
Use this item to select an optimal setting for Super IO device.
SOL Conguration
Use this item to set SOL conguration.
SOL Port
Use this item to enable or disable the SOL port.
SOL Port Address
Use this item to select an optimal setting for Super IO device.
