ASRock C3558D4I-4L [54/97] Intel sps configuration
![ASRock C3558D4I-4L [54/97] Intel sps configuration](/views2/1694343/page54/bg36.png)
48 49
English

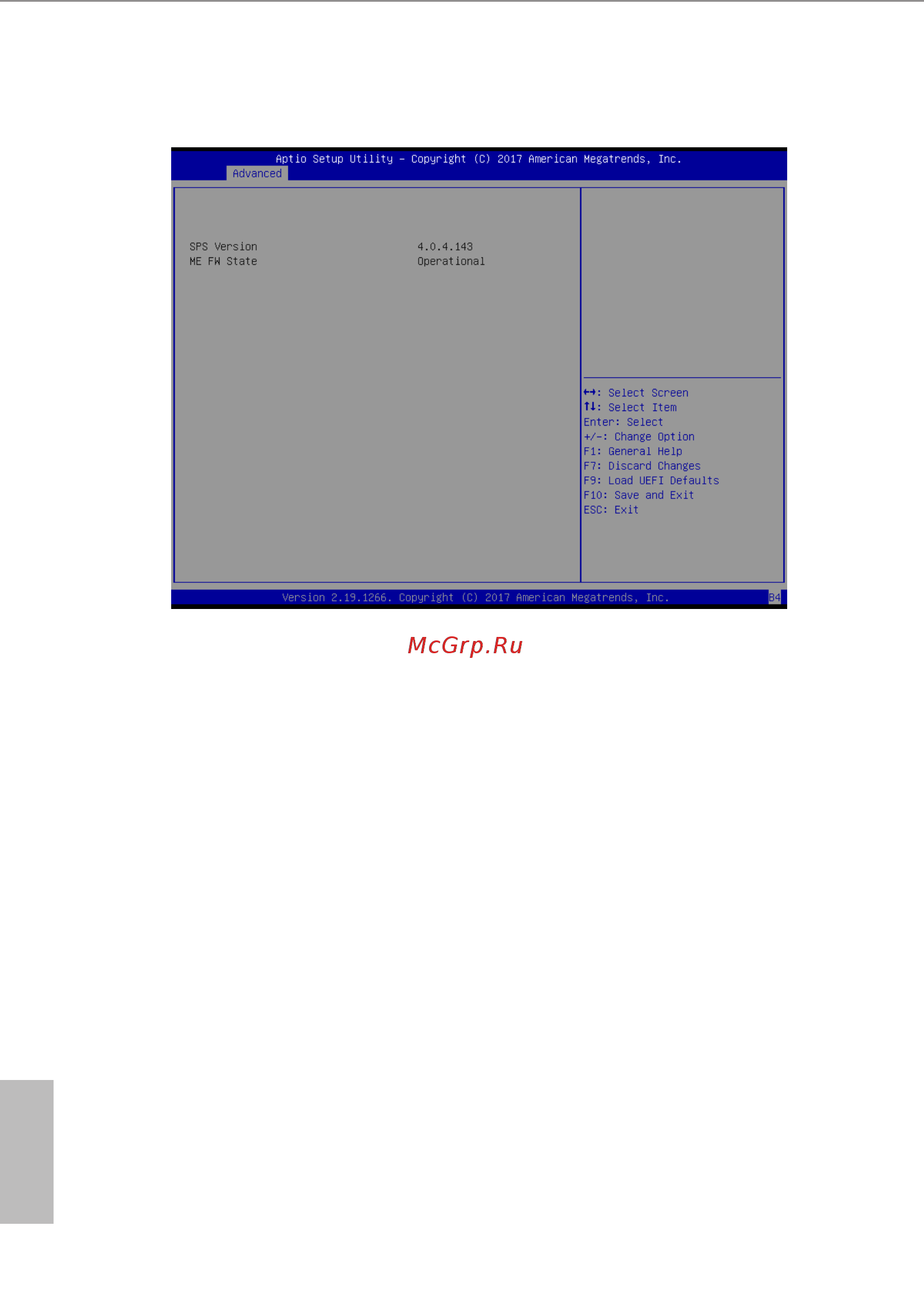

3.3.11 Intel SPS Conguration
ME Subsystem screen displays the Intel ME Subsystem Conguration information, such
as Operational Firmware Version and Firmware State.
