36 37
English

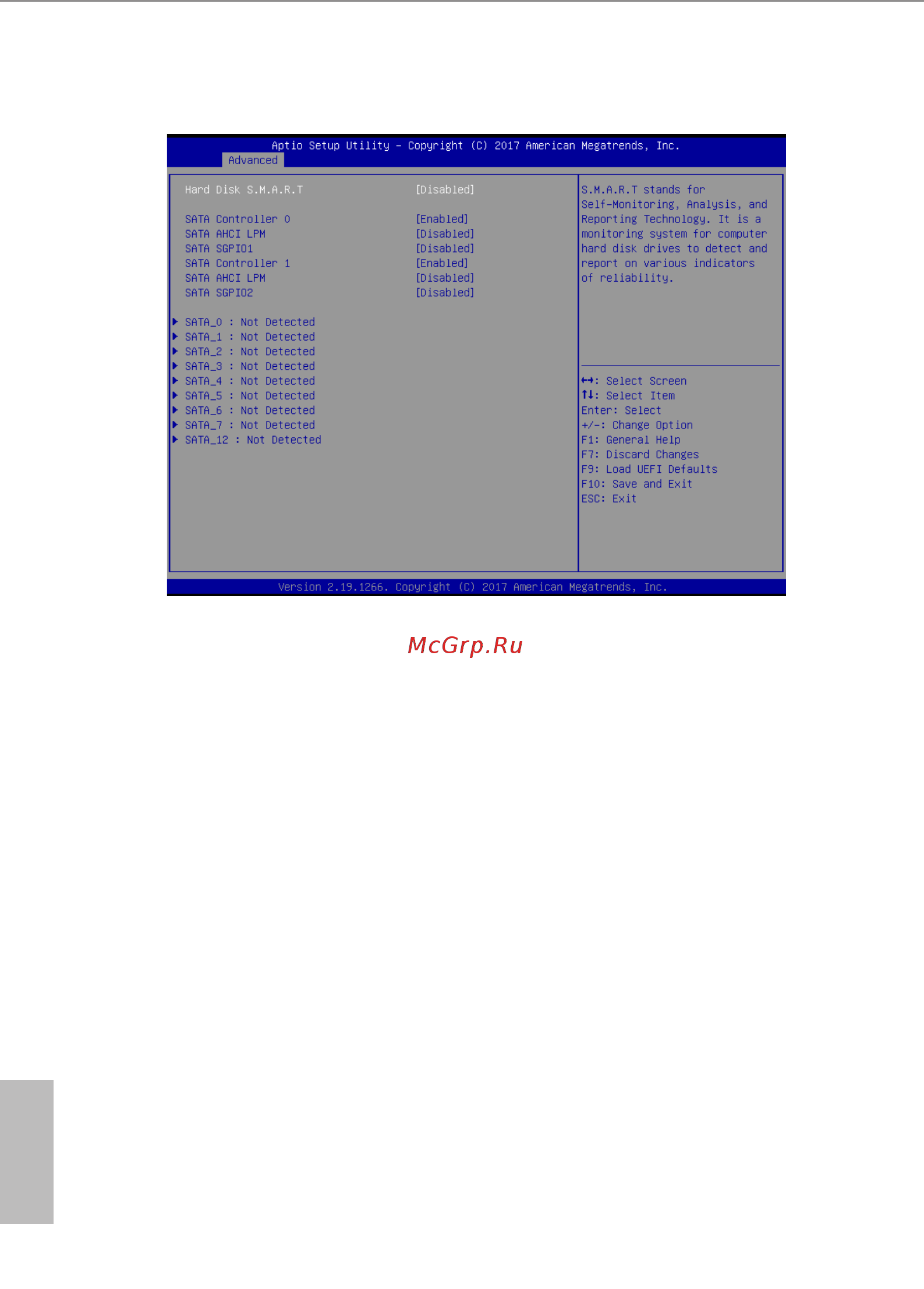

3.3.4 Storage Conguration
Hard Disk S.M.A.R.T.
Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting
Technology) feature. Conguration options: [Disabled] and [Enabled].
SATA Controller 0
Use this item to enable or disable the SATA controller 0 for SATA_0 to SATA_3 and
SATA_8 to SATA_11.
SATA AHCI LPM
Use this item to enable or disable Link Power Management. It is only supported by AHCI
mode for SATA_0 to SATA_3 and SATA_8 to SATA_11.
SATA SGPIO1
Enables SATA SGPIO1 function. It Enabled SATA SGPIO please insert jumper to J5.
SATA Controller 1
Use this item to enable or disable the SATA controller 1 for SATA_4 to SATA_7 and
SATA_12.
SATA AHCI LPM
Use this item to enable or disable Link Power Management. It is only supported by AHCI
