24 25
English

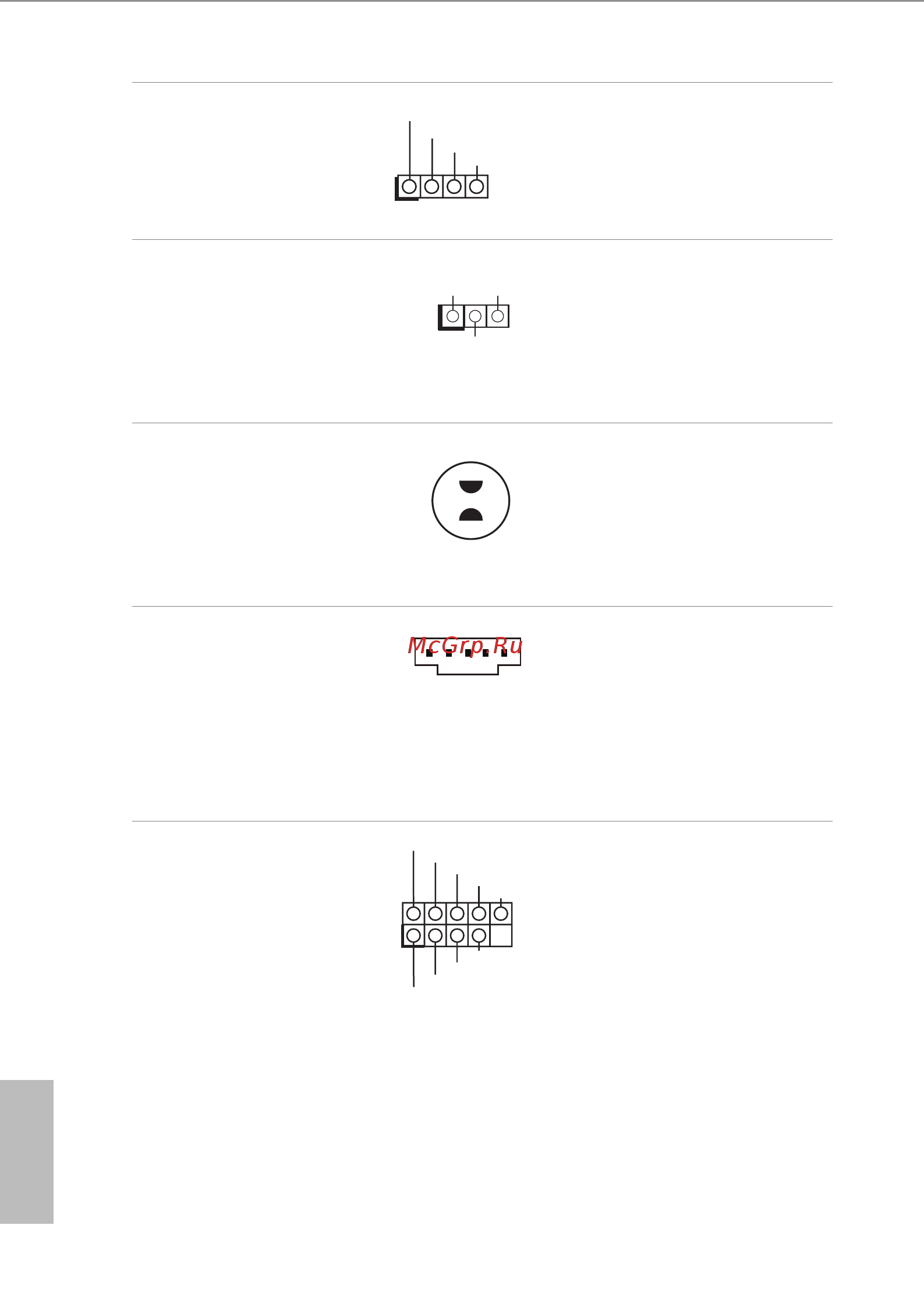

LAN LED Connector
(LED_LAN3_4)
(see p.6, No. 23)
1
LAN3_LINK
LED_PWR
LED_PWR
LAN4_LINK
is 4-pin connector is used
for the front LAN status
indicator.
ermal Sensor Header
(3-pin TR1)
(see p.6, No. 24)
1
TR1 TR1
GND
Please connect the thermal
sensor cable to either pin 1-2
or pin 2-3 and the other end to
the device which you wish to
monitor its temperature.
Clear CMOS Pad
(CLR MOS1)
(see p.6, No. 21)
CLRMOS1 allows you to clear
the data in CMOS. To clear
CMOS, take out the CMOS
battery and short the Clear
CMOS Pad.
underbolt AIC
Connector
(5-pin TB1)
(see p.6, No. 40)
1
Please connect a underbolt™
add-in card (AIC) to this
connector via the GPIO cable.
e USB3_2 port on the rear I/O is
shared with the USB_1_2 header on
the motherboard. Please refer to p.18
for jumper setup information.
USB 2.0 Header
(19-pin USB_1_2)
(see p.6, No. 20)
DUMMY
GND
GND
+B
-B
USB_PWR
+A
-A
USB_PWR
1
ere is one USB 2.0 header on
this motherboard. is USB 2.0
header can support two USB
2.0 ports.
