EP2C612D16HM / EP2C612D16HM-2T
12 13
English

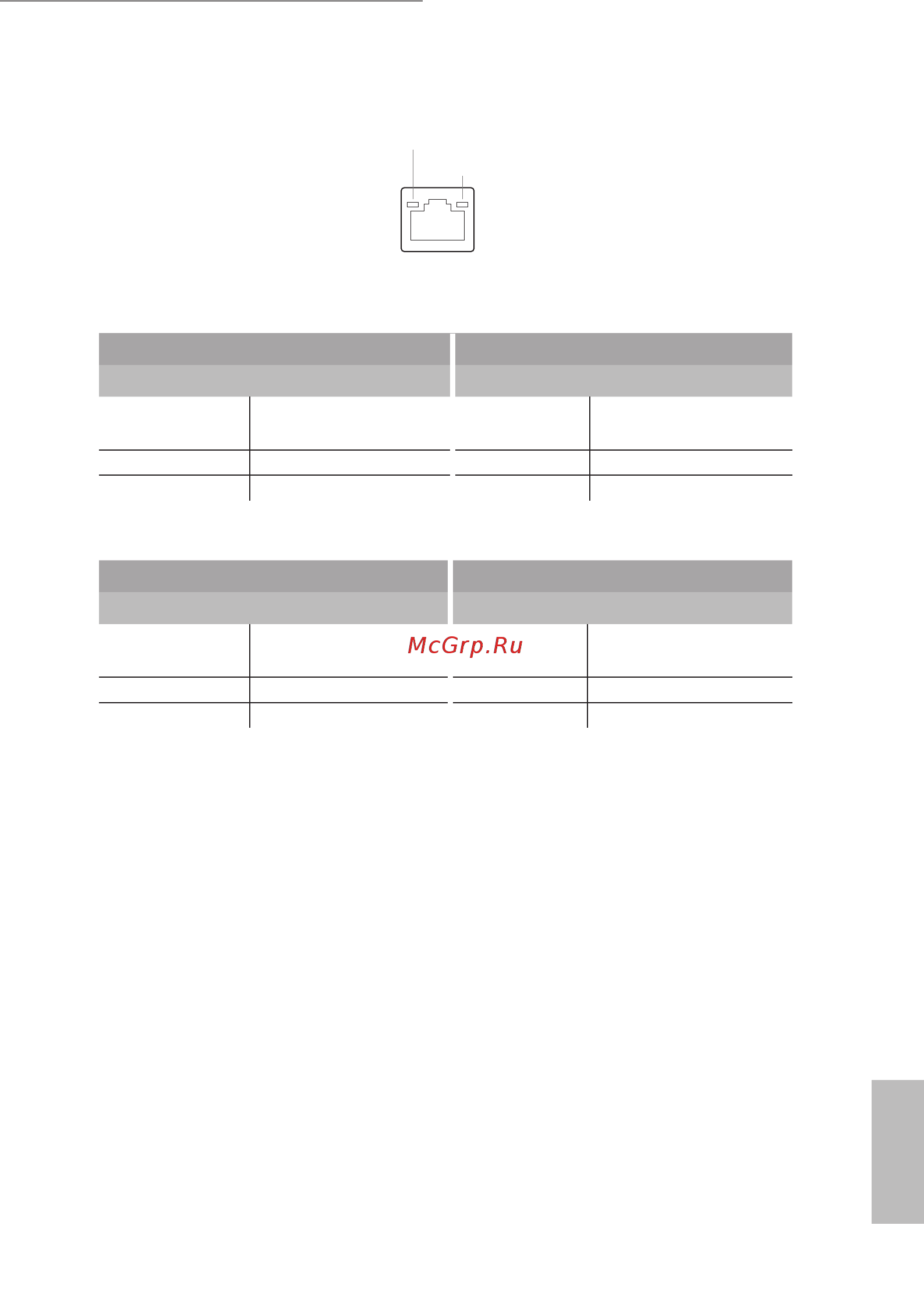

**ere are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.
LAN Port (LAN1, LAN2) LED Indications
1G For EP2C612D16HM
Speed LED Activity / Link LED
Status Description Status Description
O 10Mbps connection or
no link
O No Link
Yellow 100Mbps connection Blinking Green Data Activity
Green 1Gbps connection On Link
10G For EP2C612D16HM-2T
Speed LED Activity / Link LED
Status Description Status Description
O 100Mbps connection or
no link
O No Link
Yellow 1Gbps connection Blinking Green Data Activity
Green 10Gbps connection On Link
ACT/LINK LED
SPEED LED
LAN Port
