EP2C612D16HM / EP2C612D16HM-2T
64 65
English

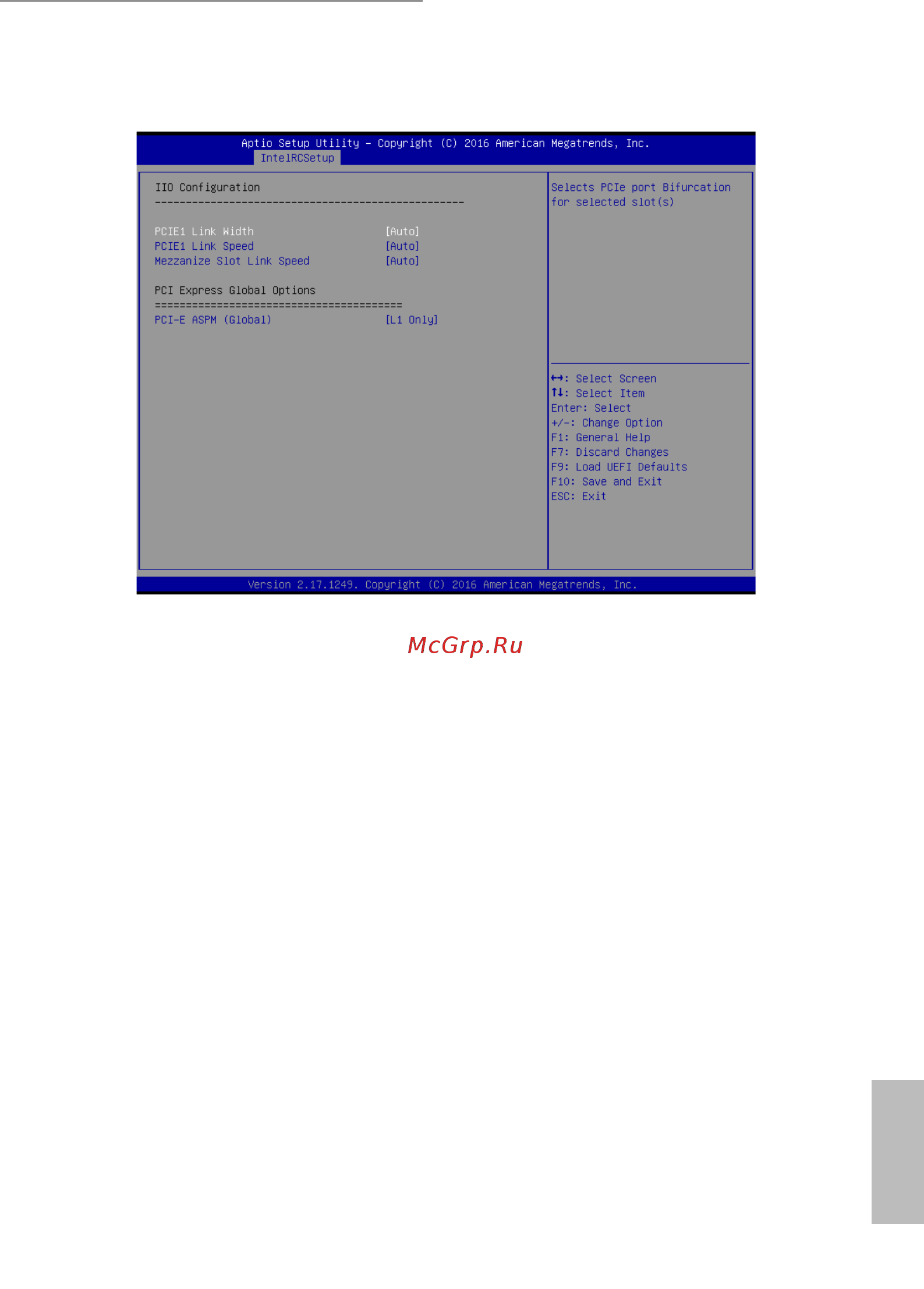

3.4.5 IIO Conguration
PCIE 1 Link Width
is allows you to select PCIE 1 port Link Width. e default value is [Auto].
PCIE 1 Link Speed
is allows you to select PCIE 1 Link Speed. e default value is [Auto].
Mezzanine Slot Link Speed
is allows you to select Mezzanine Slot Link Speed. e default value is [Auto].
PCI-E ASPM (Global)
is option enables or disables the ASPM support for all downstream devices.
