EP2C612D16HM / EP2C612D16HM-2T
28 29
English

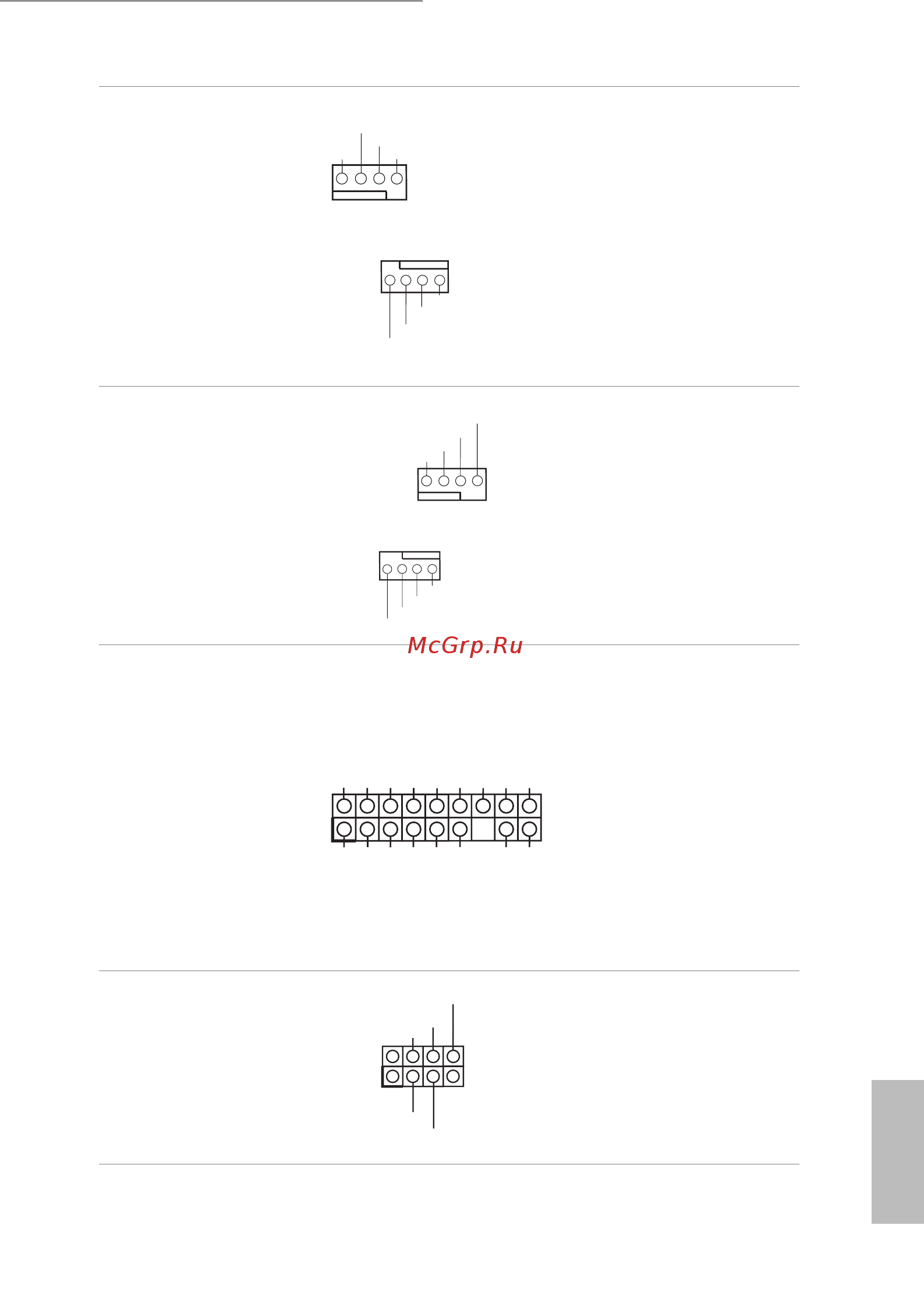

CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.6 or p.7, No. 13)
(4-pin CPU_FAN2)
(see p.6 or p.7, No. 23)
GND
FAN_VOLTAGE
CPU_FA N_SPEED
FAN_SPEED_CONTROL
1 2 3 4
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
is motherboard provides
two 4-Pin CPU fan (Quiet
Fan) connectors. If you plan
to connect a 3-Pin CPU fan,
please connect it to Pin 1-3.
*For more details, please refer to the
Cooler QVL list on the ASRock Rack
website.
Rear Fan Connectors
(4-pin REAR _FAN1)
(see p.6 or p.7, No. 42)
(4-pin REAR_FAN2)
(see p.6 or p.7, No. 3)
FAN_SPEED
FAN_SPEED_CONTROL
GND
FAN_VOLTAGE
1234
FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE
GND
4 3 2 1
Please connect fan cables to the
fan connectors and match the
black wire to the ground pin.
All fans support Fan Control.
TPM Header
(17-pin TPM1)
(see p.6 or p.7, No. 30)
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
Serial General Purpose
Input/Output Header
(7-pin SATA_SGPIO1)
(see p.6 or p.7, No. 33)
1
SLOAD
SCLOCK
GND
GND
SDATA OUT
This header supports Serial
Link interface for onboard
SATA connections.
1
LFRAME#_L
CK_33M_TPM
TPM_RST#
LAD3_L
+3V
LAD0_L
+3VSB
GNDF_CLKRUN#
SERIRQ#
S_PWRDWN#
GND
LAD1_L
LAD2_L
SMB_DATA_MAIN
SMB_CLK_MAIN
GND
