ASRock EP2C612D16HM [72/93] Pch configuration
![ASRock EP2C612D16HM [72/93] Pch configuration](/views2/1694595/page72/bg48.png)
66 67
English

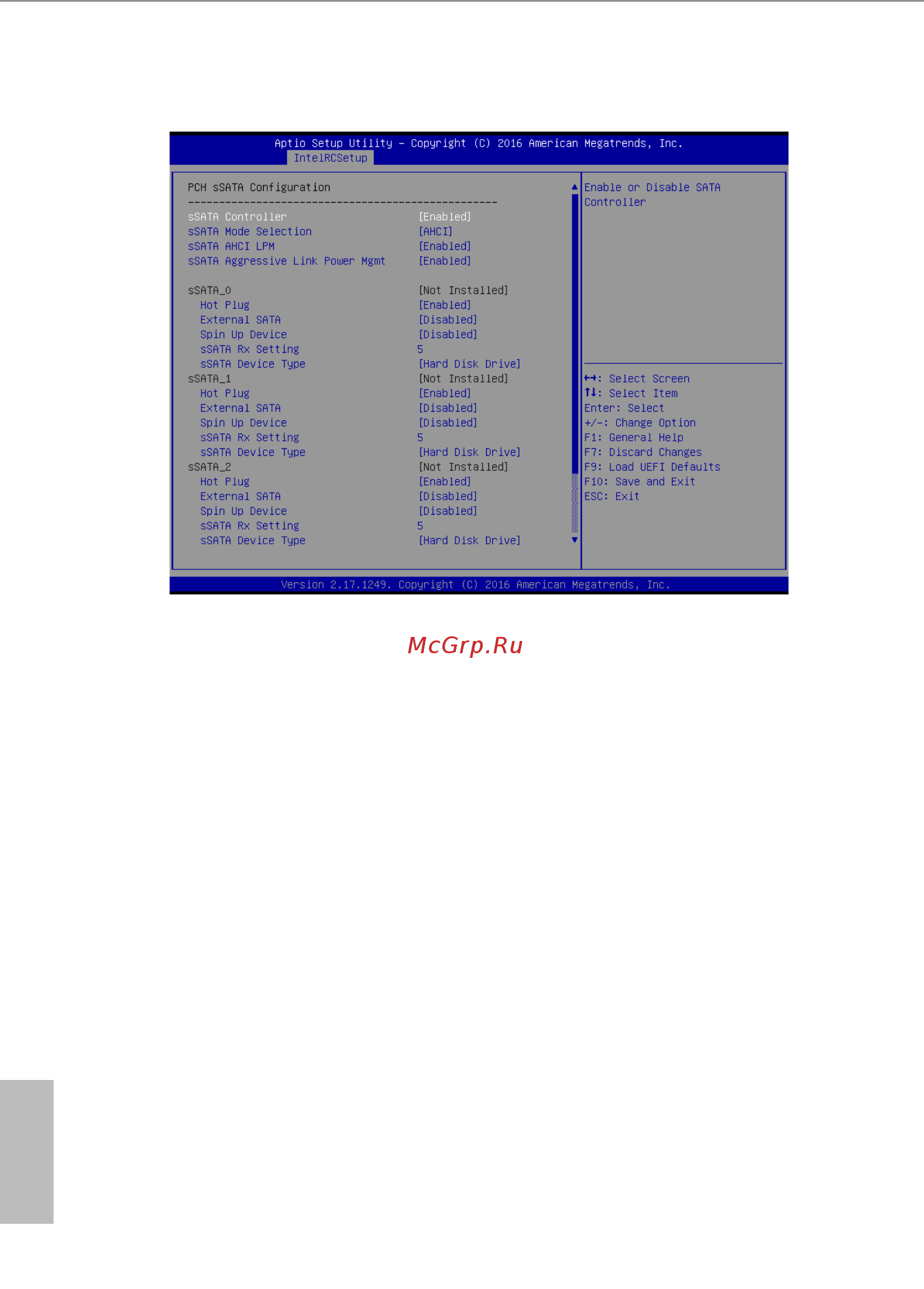

3.4.6 PCH Conguration
PCH sSATA Conguration
sSATA devices and settings
sSATA Controller
Use this item to enable or disable SATA Controller.
sSATA Mode Selection
Identify the SATA port is connected to Solid State Drive or Hard Disk Drive. Press
<Ctrl+I> to enter RAID ROM during UEFI POST process.
sSATA AHCI LPM
Use this item to enable or disable Link Power Management.
sSATA Aggressive Link Power Mgmt
Use this item to enable or disable SALP.
sSATA Port 0 / 1 / 2 / 3
Hot Plug
Designates this port as Hot Plugglable.
