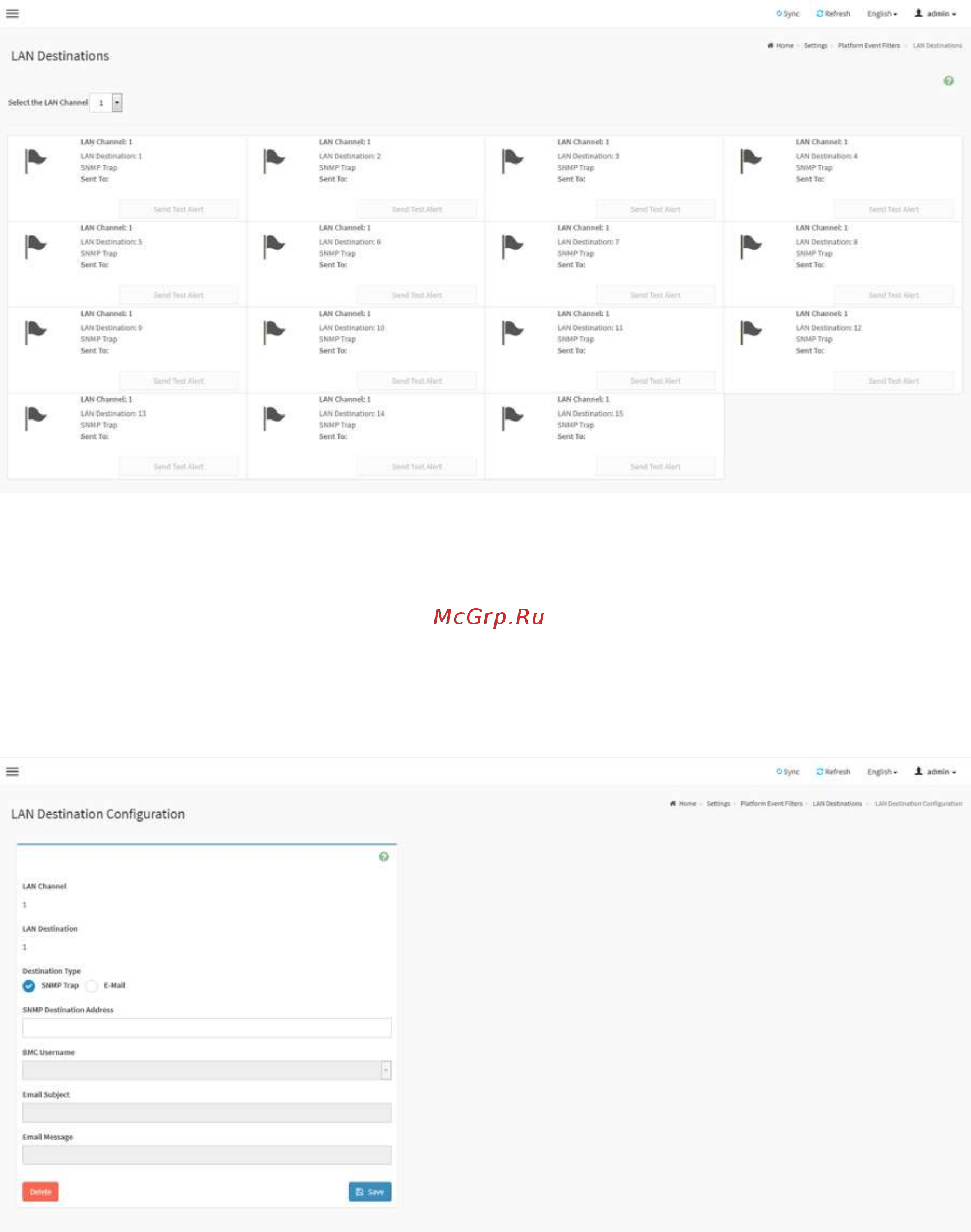

LAN Destinations Page
Select the LAN Channel: Select the LAN Channel number.
LAN Destination Configuration: Select any empty slot to configure LAN
Destinations.
LAN Destination Configuration Page
LAN Channel: Displays LAN Channel Number for the selected slot (read only).
LAN Destination: Displays ID for setting Destination Selector of Alert Policy (read
only).
SNMP Destination Address: Destination type can be either an SNMP Trap or an
E-mail alert. For E-mail alerts, the four fields - SNMP Destination Address, BMC User
37
