ASRock EPC612D8A [48/66] General firewall settings

3.7.12.1 General Firewall Settings

This page is used to configure general firewall settings.

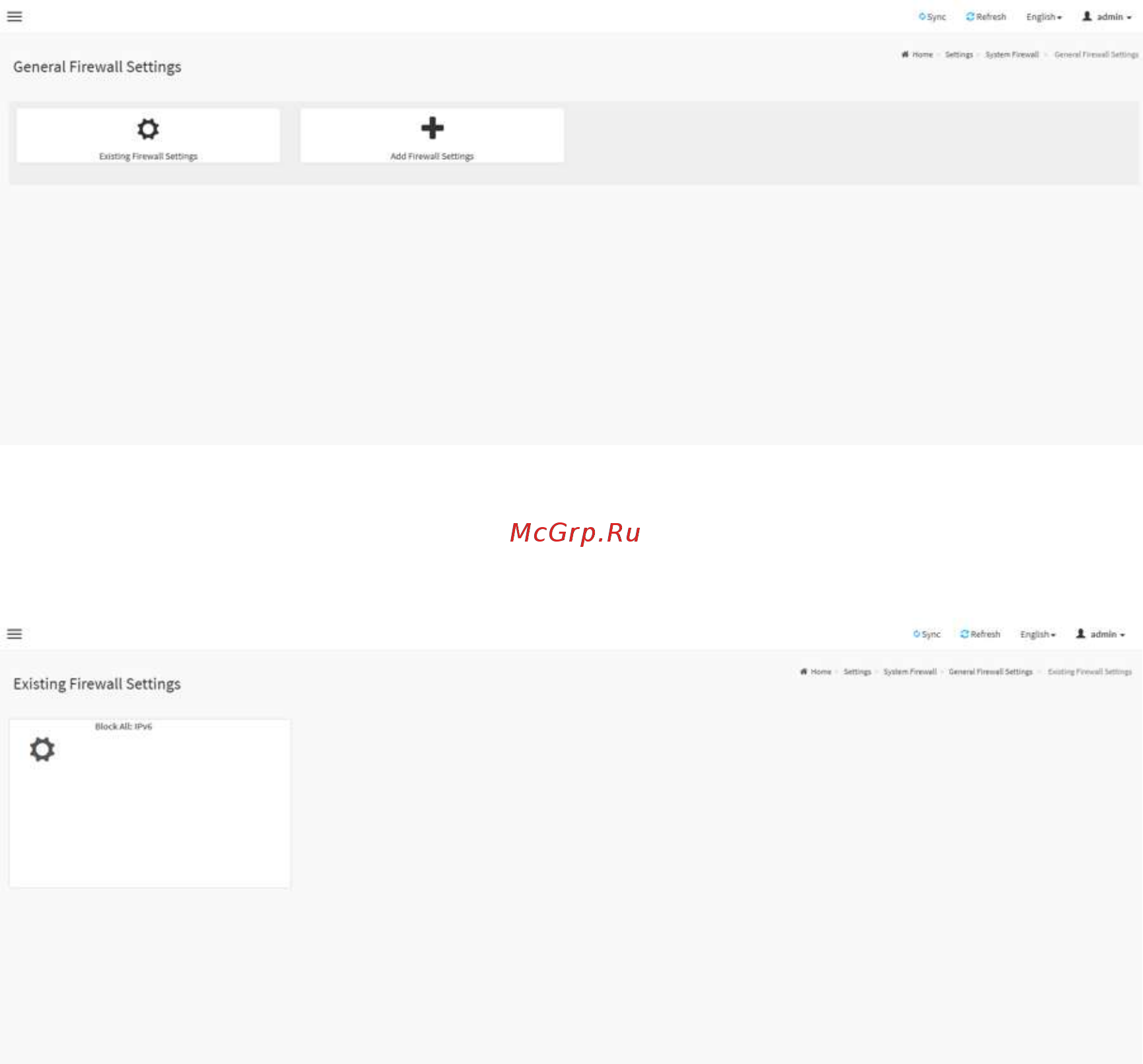

General Firewall Settings Page

Existing Firewall Settings: This page is used to displays existing firewall settings.

Existing Firewall Settings Page

Add Firewall Settings: This page is used to displays add firewall settings.
