3.8 Remote Control

This page is used to launch the remote console redirection.

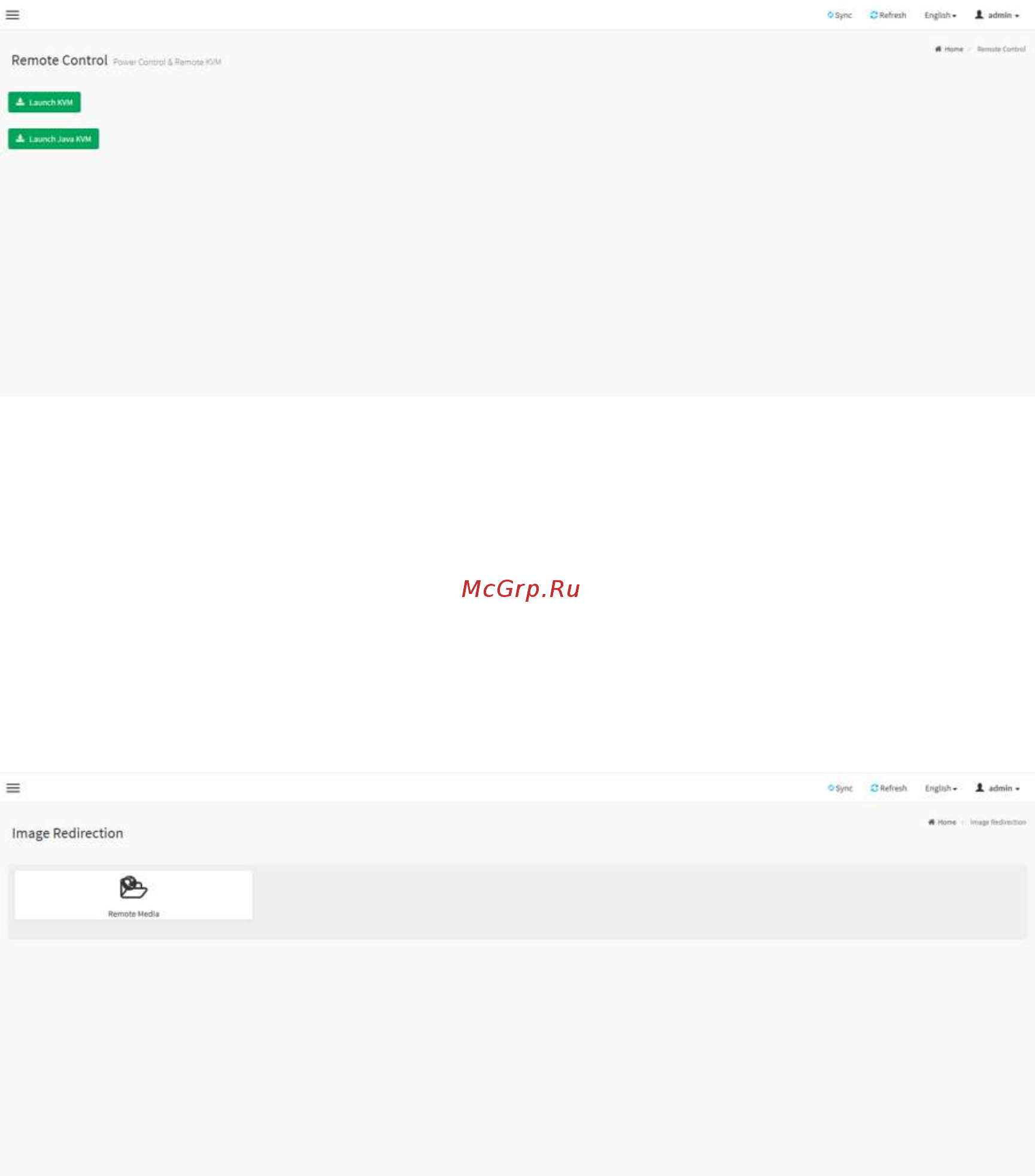

Remote Control Page

Launch KVM: Click the button to open remote control KVM page.

Launch Java KVM: Click the button to open Java KVM application.

3.9 Image Redirection

This page is used to configure the images into BMC for redirection.

Image Redirection Page

3.9.1 Remote Media

This page is used to configure the remote images into BMC for redirection.
