ASRock EPC612D8A [49/66] Ip firewall rules

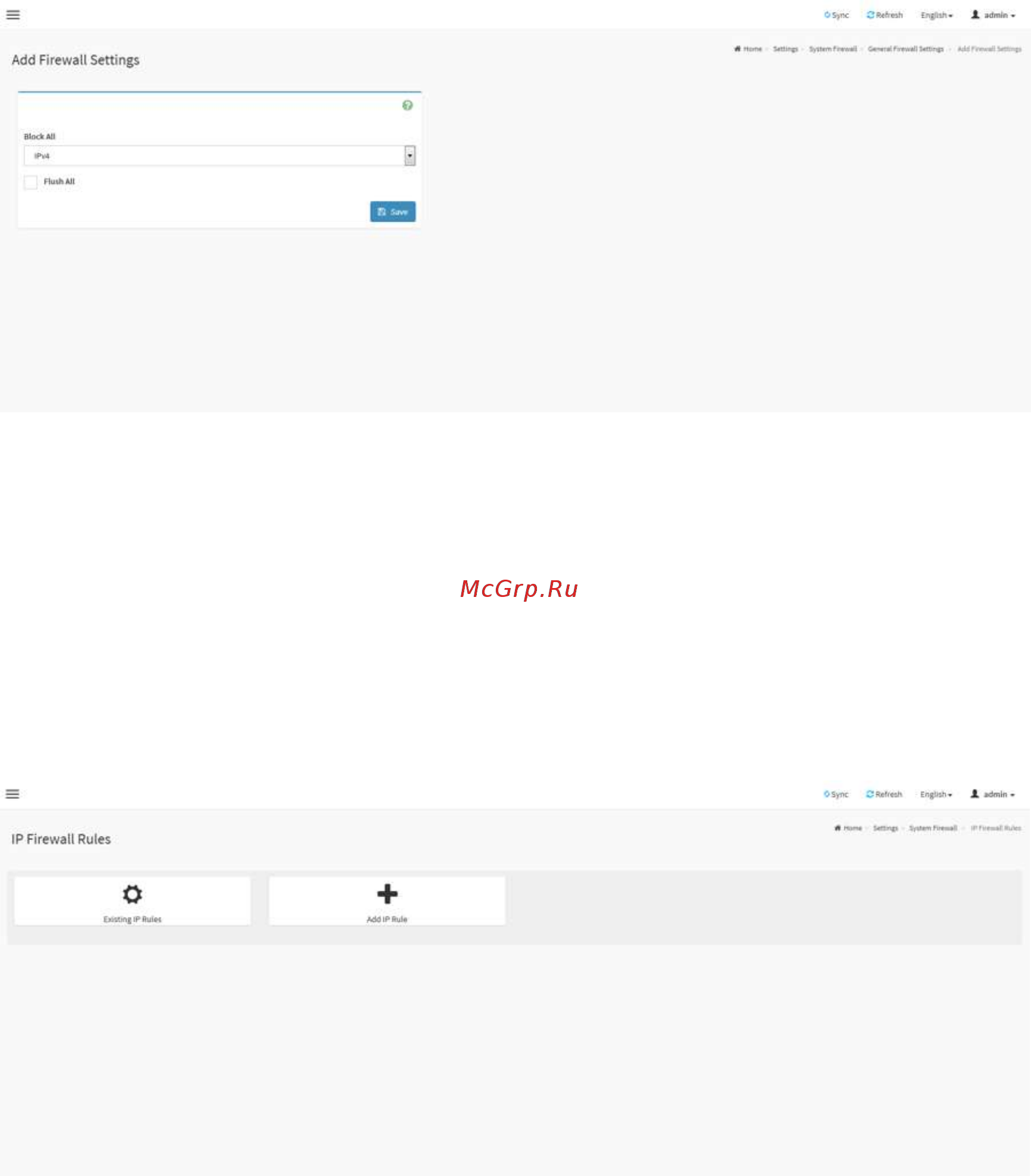

Add Firewall Settings Page

Block All: This option will block all incoming IPs and Ports.

Flush All: This option is used to flush all the system firewall rules.

3.7.12.2 IP Firewall Rules

This page is used to add a new IP Address or Range to firewall settings.

IP Firewall Rules Page

Existing IP Rules: This page is used to displays existing IP rules.
