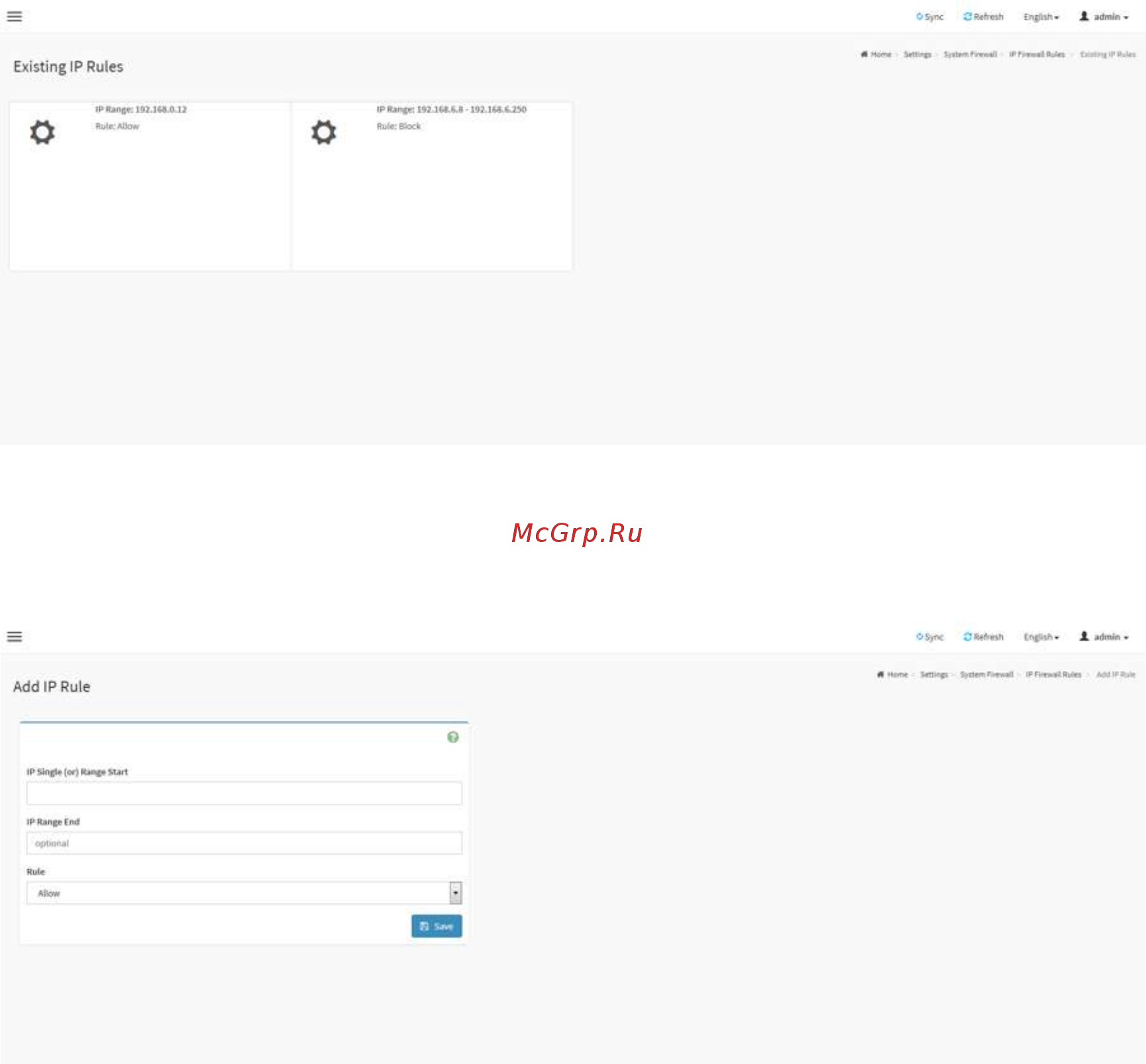

Existing IP Rules Page

Add IP Rule: This page is used to displays add IP rule settings.

Add IP Rule Page

IP Single (or) Range Start: This field is used to configure the IP address or range of IP

addresses.

IP Range End: This field is used to configure the IP range end of IP addresses.

Rules: This field is used to determine the rule to Allow or Block.

3.7.12.3 Port Firewall Rules

This page is used to add a new Port or Range to firewall settings.
