ASRock EPC612D8A [62/66] Maintenance

3.12 Maintenance

This page is used to do maintenance tasks on the device.

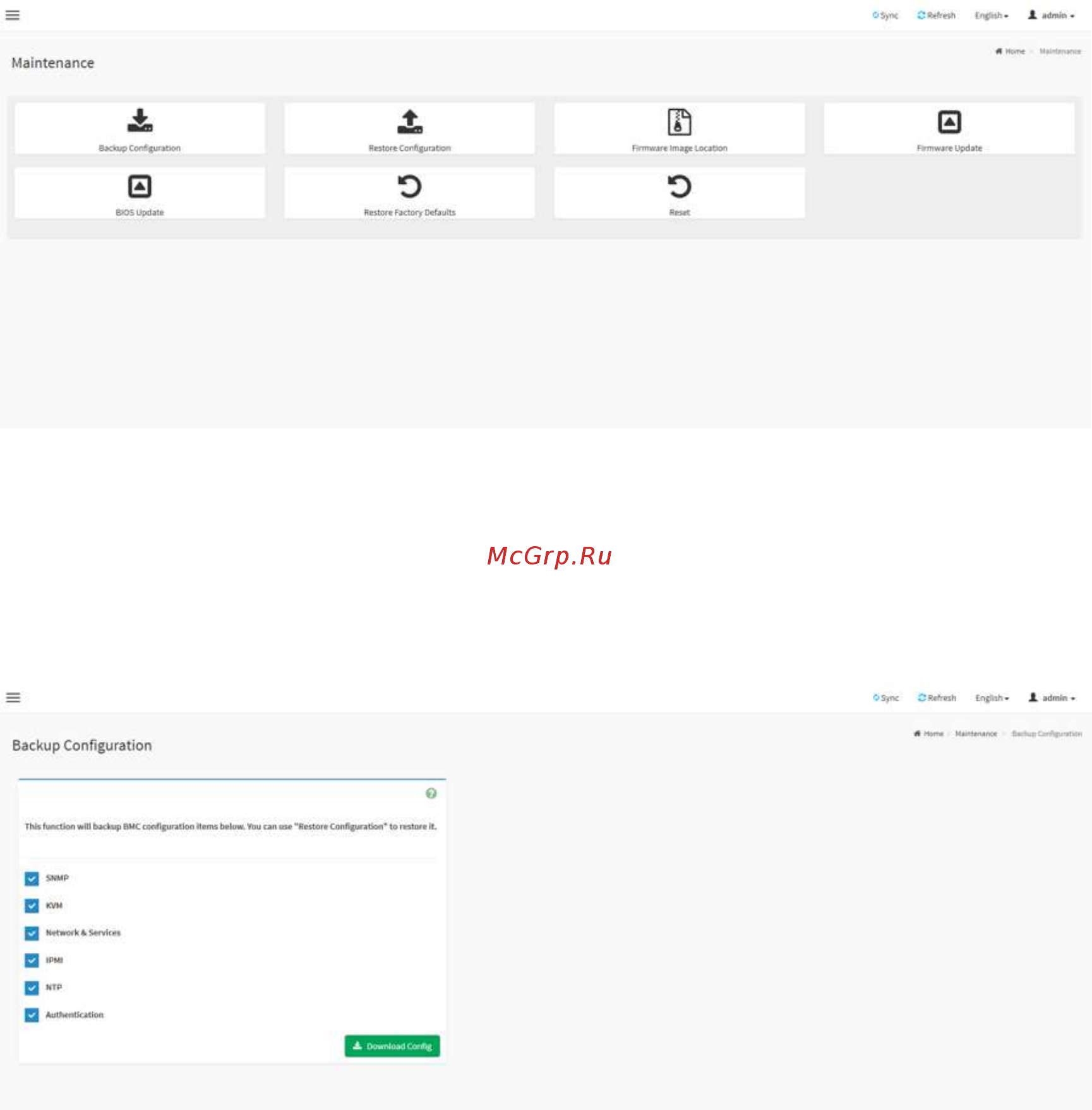

Maintenance Page

3.12.1 Backup Configuration

This page is used to back up the configuration.

Backup Configuration Page

Download Config: To download and save the configuration files backup from BMC to

client system.

3.12.2 Restore Configuration

This page is used to restore the configuration files from the client system to the BMC.
