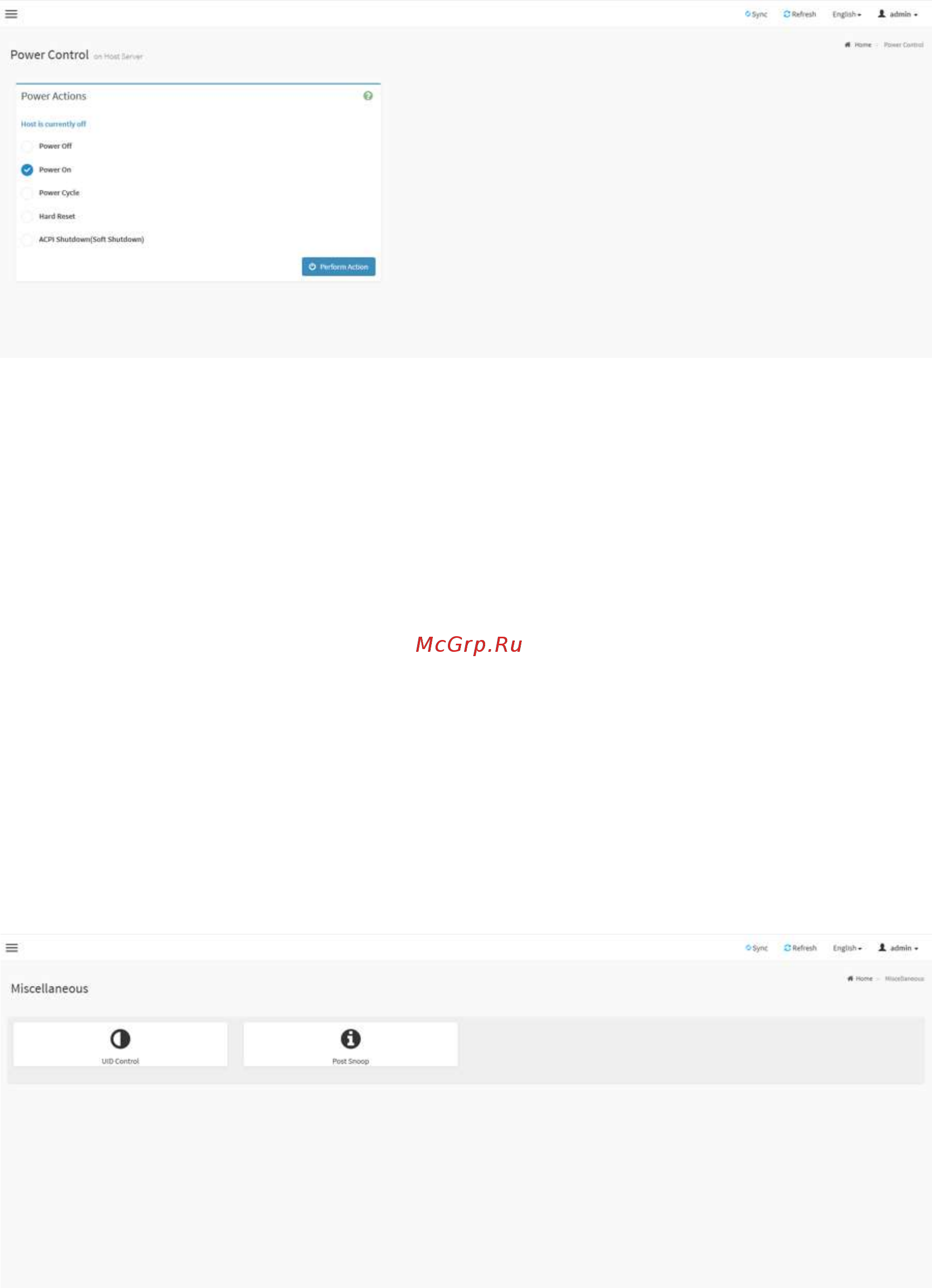

Power Control Page

Power Off: Select this option to immediately power off the server.

Power On: Select this option to power on the server.

Power Cycle: Select this option to first power off, and then reboot the system (cold

boot).

Hard Reset: Select this option to reboot the system without powering off (warm

boot).

ACPI Shutdown(Soft Shutdown): Select this option to initiate operating system

shutdown prior to the shutdown.

3.11 Miscellaneous

This page is used to configure miscellaneous settings.

Miscellaneous Page
