• Network

• NTP

• SSH

• KVM

• Authentication

• Syslog

• Web

3.12.7 Reset

This page is used to reset BMC device.

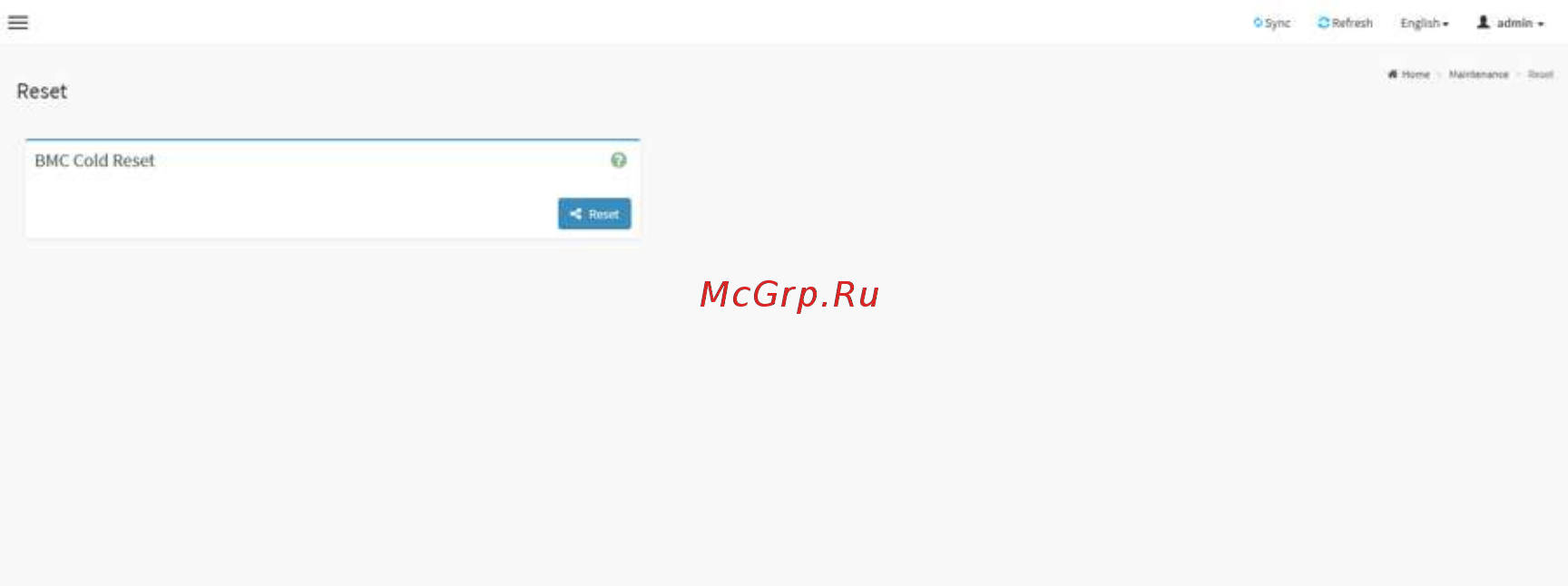

Reset Page

Reset: Click the button to reset the device.

3.13 Sign out

Click Sign Out to perform log out from the Web GUI. A Warning message will be

prompted you to proceed further, click OK to log out else Cancel to retain the Web

GUI.
