Switch Box Layout ESiEN02–01A
1–96 Part 1 – System Outline
3
11
4
5
5.2 R35GZ7V11 and R45GZ7V11

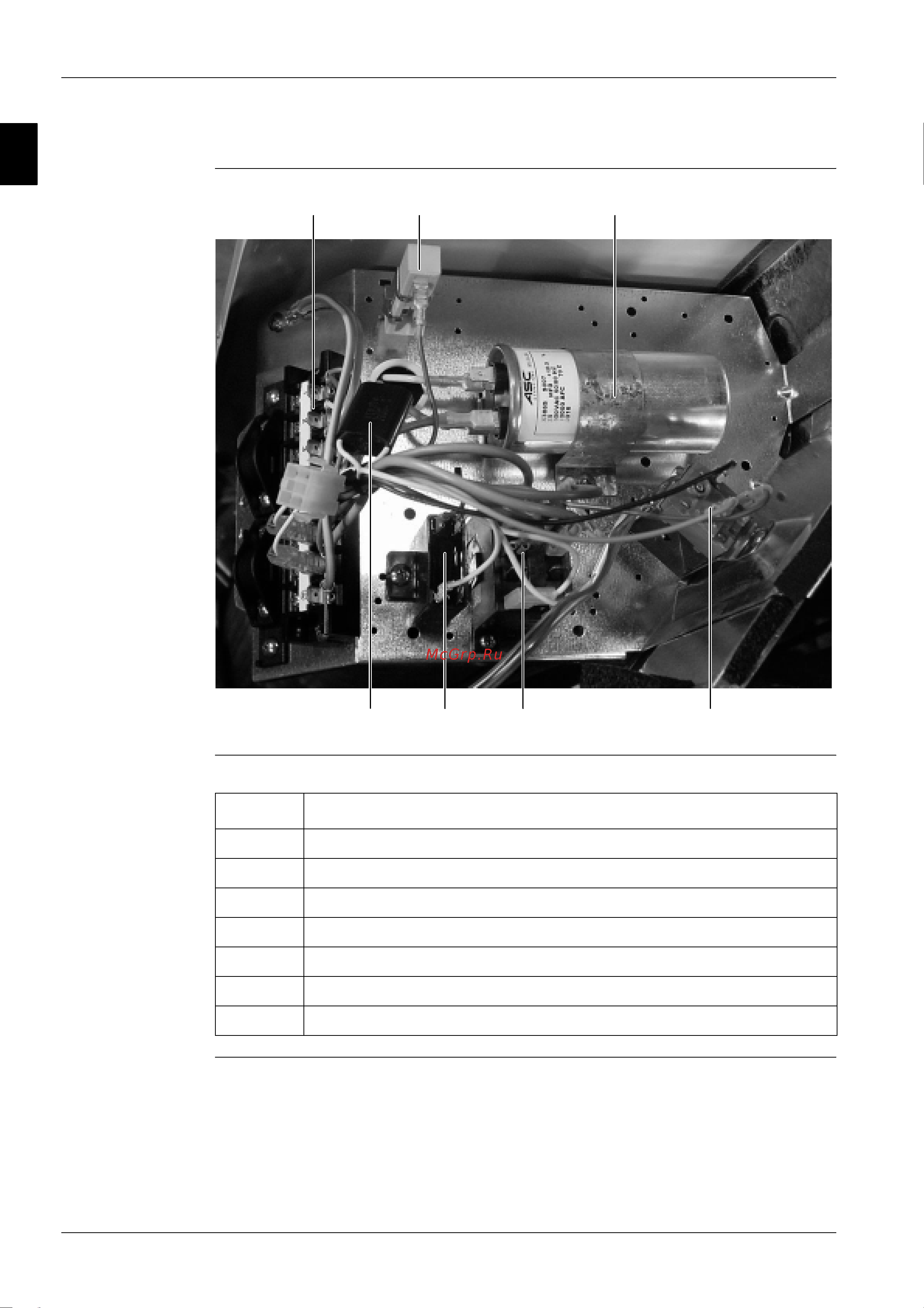

Switch box The illustration below shows the switch box layout.
Components The table below contains the components of the switch box.
S1TK1MC2RZ1F
C1RX1M F2S
Symbol Component
X1M Terminal strip (field wiring)
F2S Surge arrester
C1R Compressor running capacitor
S1T Thermostat
K1M Magnetic contactor (M1C)
C2R Fan motor capacitor
Z1F Noise filter
