ESiEN02–01A General Functionality
Part 2 – Functional Description 2–23
3
2
4
5
1

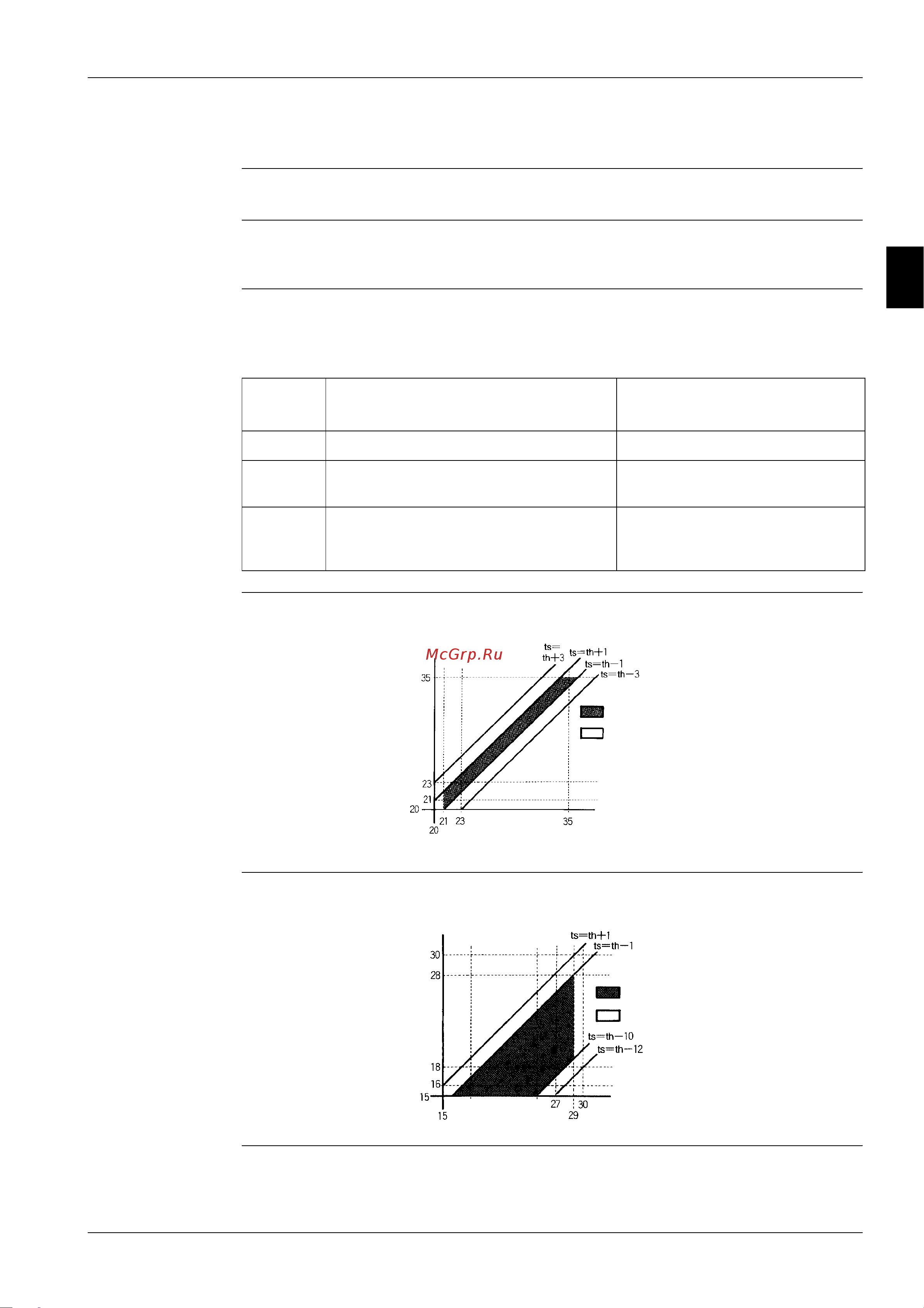

1.17 Using Conditions for Remote Control Thermostat
Applicable units All units
Wired remote
controls
The remote control thermostat is only available in wired remote controls.
Conditions in which
the rem. contr.
thermostat is not
used
Even when the “use remote control thermostat” is selected in service mode, the remote control
thermostat is not always used.
The table below contains the conditions in which the remote control thermostat is not used.
Cooling The diagram below shows the operation range of the set temperature/air suction temperature
combination.
Heating The diagram below shows the operation range of the set temperature/air suction temperature
combination.
Condition
The remote control thermostat is not
used when...
Except...
1 The remote control thermostat malfunctions. —
2 The “one remote control group control” is
selected.
For simultaneous ON/OFF operation.
3 The set temp./air suction temp. combination
is out of range. See further in this section.
When the automatic operation is
selected. If so, the remote control
can be used.
Remote control thermostat
operation range
Differential zone
th: Suction air temp.
(°C)
ts: Set temp.
(°C)
Remote control thermostat
operation range
Differential zone
th: Suction air temp.
(°C)
ts: Set temp.
(°C)
