ESiEN02–01A General Outline: Outdoor Units
Part 1 – System Outline 1–7
3
1
4
5
Installation and
service space

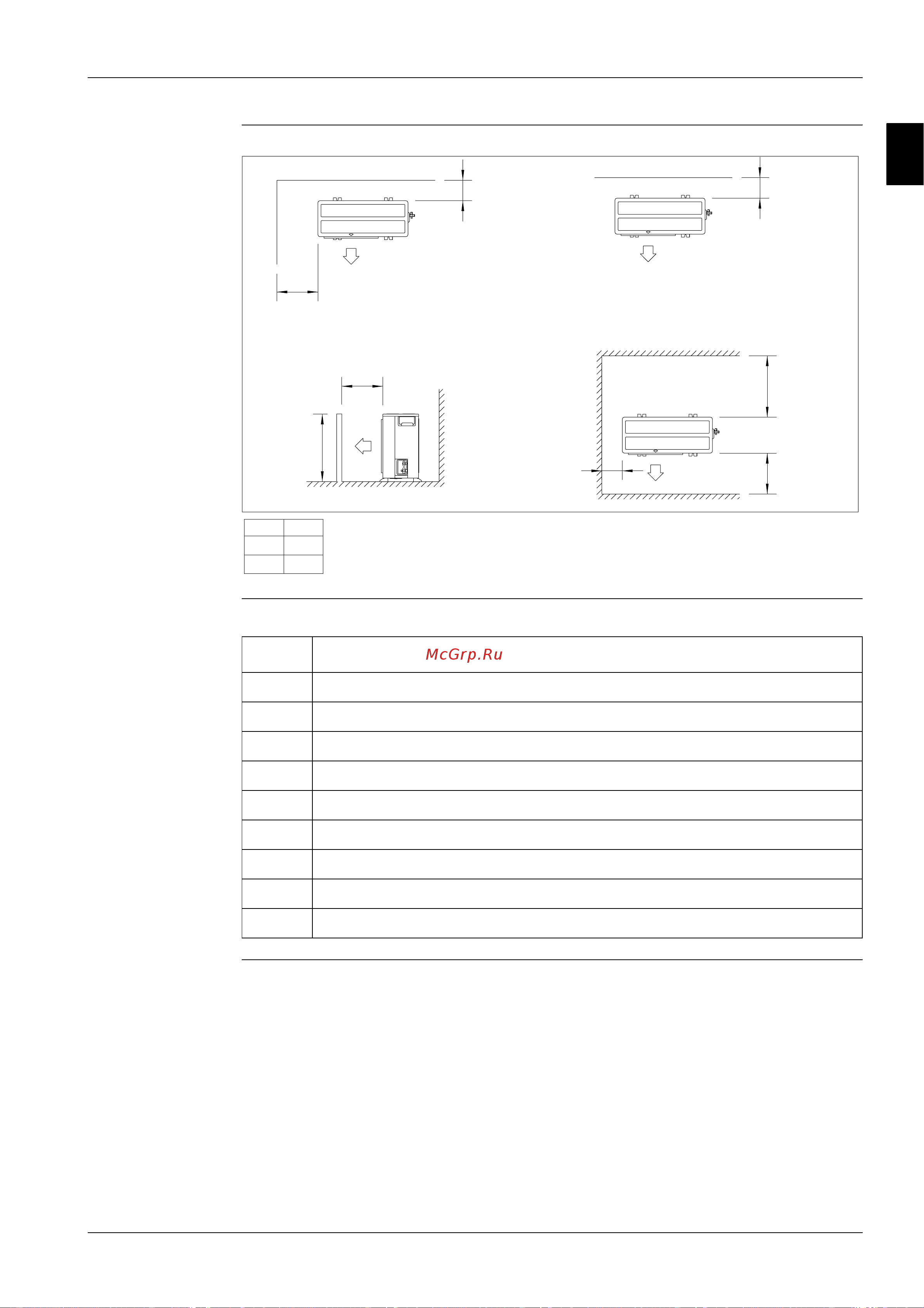

The illustration below shows the required installation and service space (mm).
Components The table below contains the different components of the unit.
50
H
A
A 150
50
100
50
HA
≤ 1000 300
> 1000 600
No. Component
1 3 x drain outlet
2 4 x hole for anchor bolt (M10)
3 Service cover
4 Power supply intake
5 Gas stop valve
6 Liquid stop valve
7 Service port
8 Name plate
9 Outdoor air thermostat
