Important
INSTALLATION AND SETUP SHOULD
BE CARRIED OUT BY AN AUTHORISED
TECHNICIAN IN LINE WITH CURRENT
INSTALLATION STANDARDS.
Positioning the hobs
Depending on the model to be installed, an
opening with the dimensions shown in
figure 11 will be cut into the unit’s worktop
or stove. In the packaging of the models
CG.1 4G and CG.1 3G 1P, there is a tem-
plate included that is for use in sizing the
space for these two hob models.
The system for fixing the hob is intended
for use with kitchen units with a thickness
of 20, 30 and 40 mm.
In free standing models, a board should be
placed inside the kitchen unit, with the top
of the board being 20 mm. below the bot-
tom of the hob.
The hobs described in this manual can
only be installed with Teka ovens. Models
with no control knobs are only to be insta-
lled with Teka ME ovens and/or Teka con-
trol panels.
The minimum distance between the surfa-
ce supporting the cooking pans and the
lower part of the kitchen unit or the hood
located above the hob should be 650 mm.
If the hood’s installation instructions
recommend that the gap is greater than
this, you should follow this advice.
The unit where the hob and oven will be
located will be suitably fixed.
Warnings:
When hobs are handled before
being installed, care should be taken in
case there is any protruding part or
sharp edge which could cause injury.
When installing units or applian-
ces above the hob, the hob should be
protected by a board so that the glass
cannot be damaged by accidental
blows or heavy weights.
If the glass breaks or cracks, the
hob should immediately be disconnec-
ted from the electric current in order to
avoid the risk of electric shock.
The glues used in manufacturing
Installation

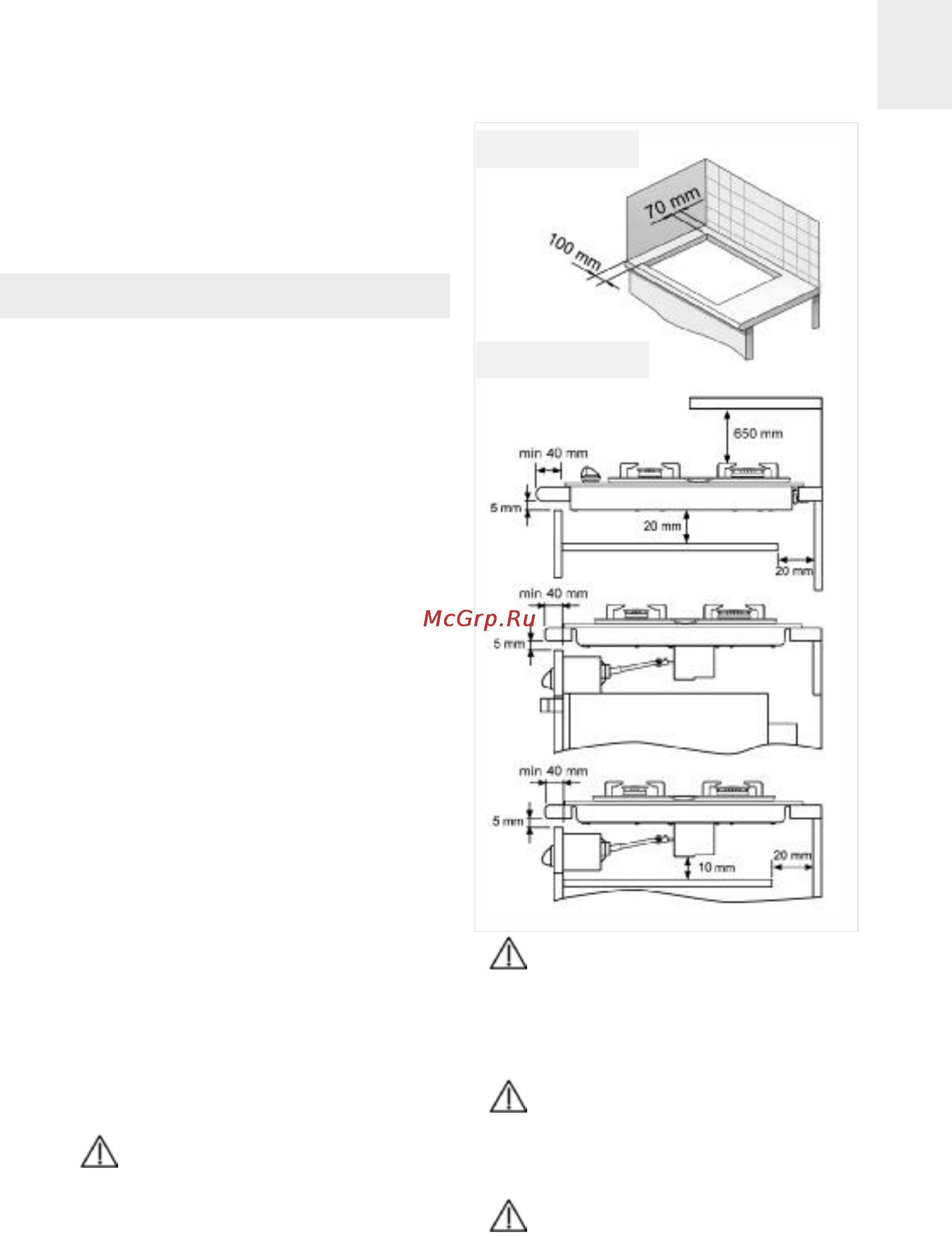

fig. 10
Minimum distances
to walls
Minimum ventilation
distances
OVEN
