Teka VR 90 4G AI TR AL [12/30] Anchoring the hob
![Teka VR 90 4G AI TR AL [12/30] Anchoring the hob](/views2/1069795/page12/bgc.png)
the kitchen unit and in the adhesive on
the decorative laminate of the worktop
surface should be made to tolerate tem-
peratures of up to 100ºC.
TEKA assumes no responsibility
for any malfunction or damage caused
by faulty installation.
PLEASE REMEMBER THAT THE GUA-
RANTEE DOES NOT COVER THE
GLASS IF IT SUFFERS A VIOLENT
BLOW OR IF IT IS USED IMPROPERLY.
Positioning the oven
See the corresponding manual.

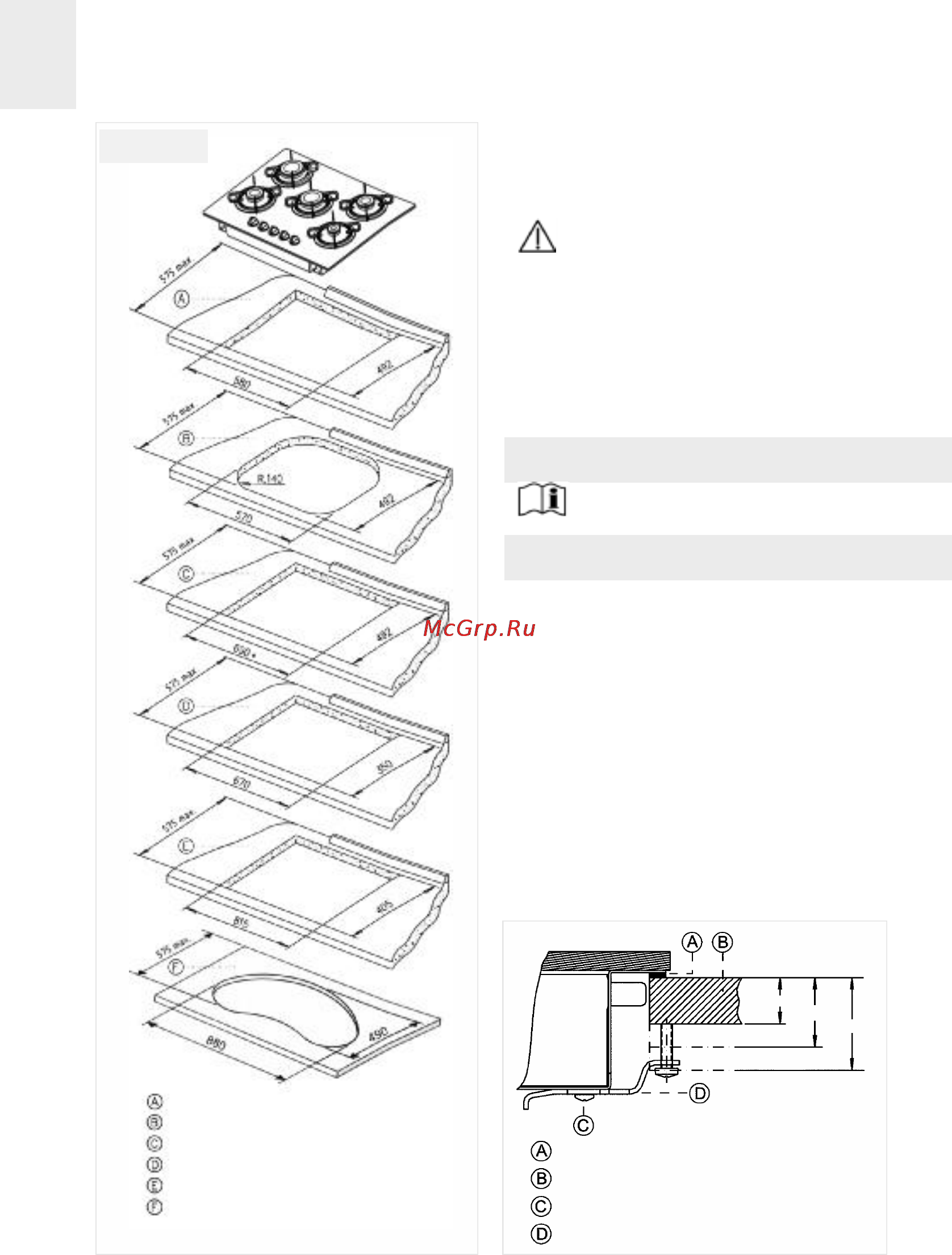

Anchoring the hob
When the gap has been properly sized,
the sealing washer (A) should be put on
the lower part of the cooker. Fix the clamps
(D) into the holes on the lower part of the
case, as shown in the drawing 12, by tigh-
tening the four screws supplied (Ø 4.2
mm). For worktops 30 mm thick or less,
use the M5 screws supplied as comple-
mentary fixation by introducing them into
the circular hole of the clamp. A fillet shall
form in this hole as the screw is introduced
in it. This operation should be done before
fastening the clamps to the hob.
GB
12
fig. 12
Seal
Worktop
Screw
Fastering clip
20 mm
30 mm
40 mm
fig. 11
Mod.: CG Lux-60 y CGC 4G
Mod.: CG.1 3G 1P y CG.1 4G
Mod.: CG Lux-70
Mod.: CG Lux-75
Mod.: CG Lux-86
Mod.: VR 90 4G
Fitting holes
* With granite hobs, the measurement may be 580 mm.
