GB
13
Note: It is essential that the sealing was-
her is placed beneath the hob’s rim. If it
is not placed there, the worktop could
suffer extremely high temperatures.
On models CG.1 4G and CG.1 3G 1P, the
clips should be fixed as shown in figure 13,
depending on the thickness of the worktop.
For worktop thicknesses of 30 mm or less,
use the self-tapping screws (M5) that are
provided as a fastening accessory - put
them into the clip’s round hole. This hole
will be threaded as the screw is inserted
into it, and this should be done before
fixing the clip to the worktop.
Hob model CGC 4G AI AL is mounted by
inserting the quick nuts into the holes
where the screws go (see fig. 14) and then
attaching the appropriate clip, depending
on the worktop’s thickness (20, 30 and 40
mm) and tightening the screws until it is
firmly fastened.
With the hob model CGC 4G, when the
gap has been properly sized, the sealing
washer (J) should be glued on the lower
part of the hob.
Position the clips (K) as shown in the dia-
gram, fastening them to the openings in the
lower part of the body using the metal thre-
aded screws provided (Ø 4,2 mm). The
clips (K) and the sealing washer (J) are
provided, and can be found in the packa-
ging. (See fig. 15)
To attach the models CG.1 4G, CG.1 3G
1P and CGC 4G to the oven, four cardan
telescopic shafts are included with the
hob. When you are putting the oven into
the space, be careful that it does not take
the weight of the cardan shafts or it could
break. Leave enough space to be able to
insert the cardans’ other ends into the
shafts at the rear of the control panel, and
attach the fixing pins.
If an oven is being installed beneath the
hob, avoid the power cable coming into
contact with very hot components.

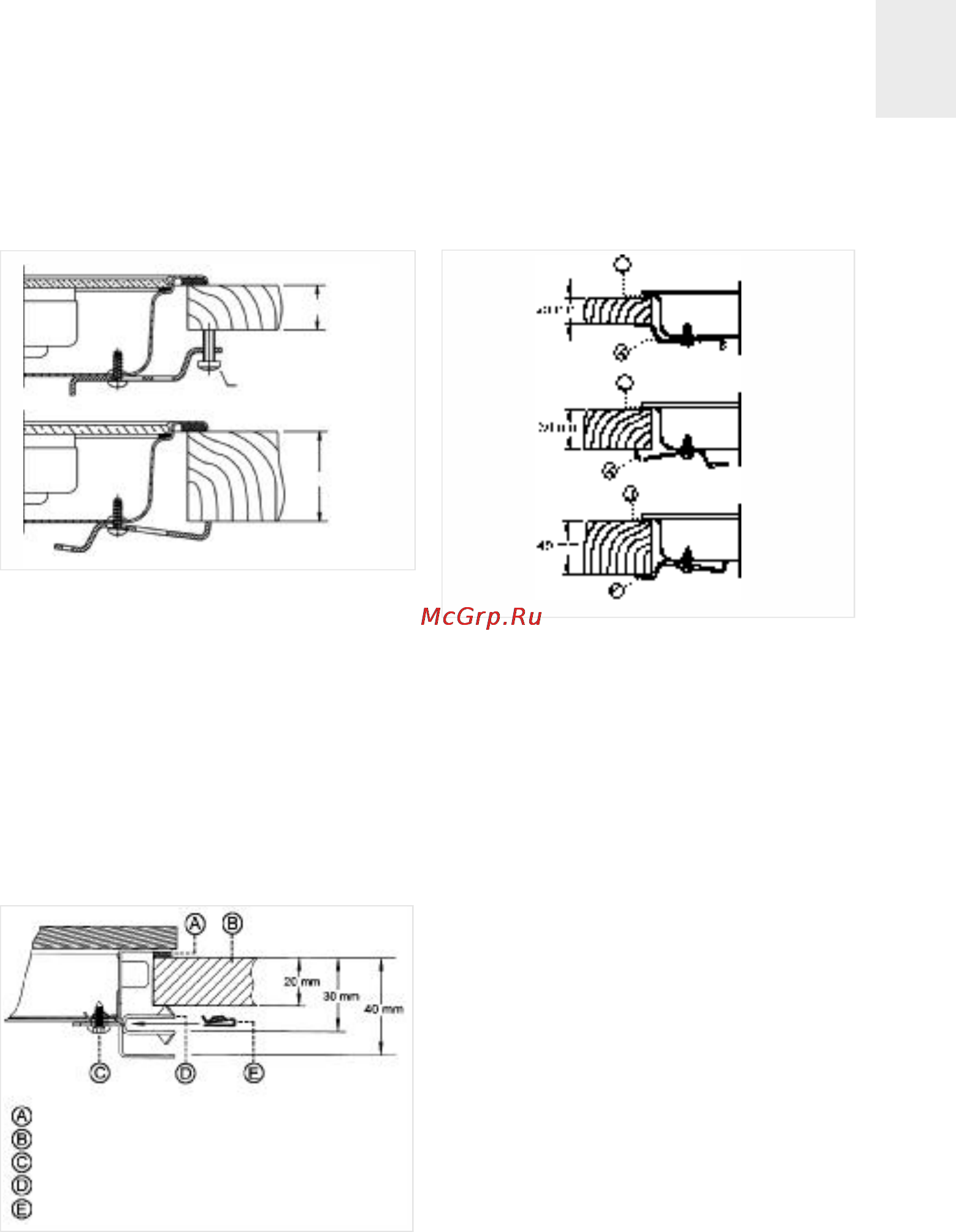

fig. 13
20/30 mm
40 mm
Self-tapping screw for 20
and 30 mm thick worktops
fig. 14
Sealing washer
Worktop
Screw
Fixing clip
Rapid screw
fig. 15
