RXYSQ4 · 5 · 6 P7Y1B SiBE34-703

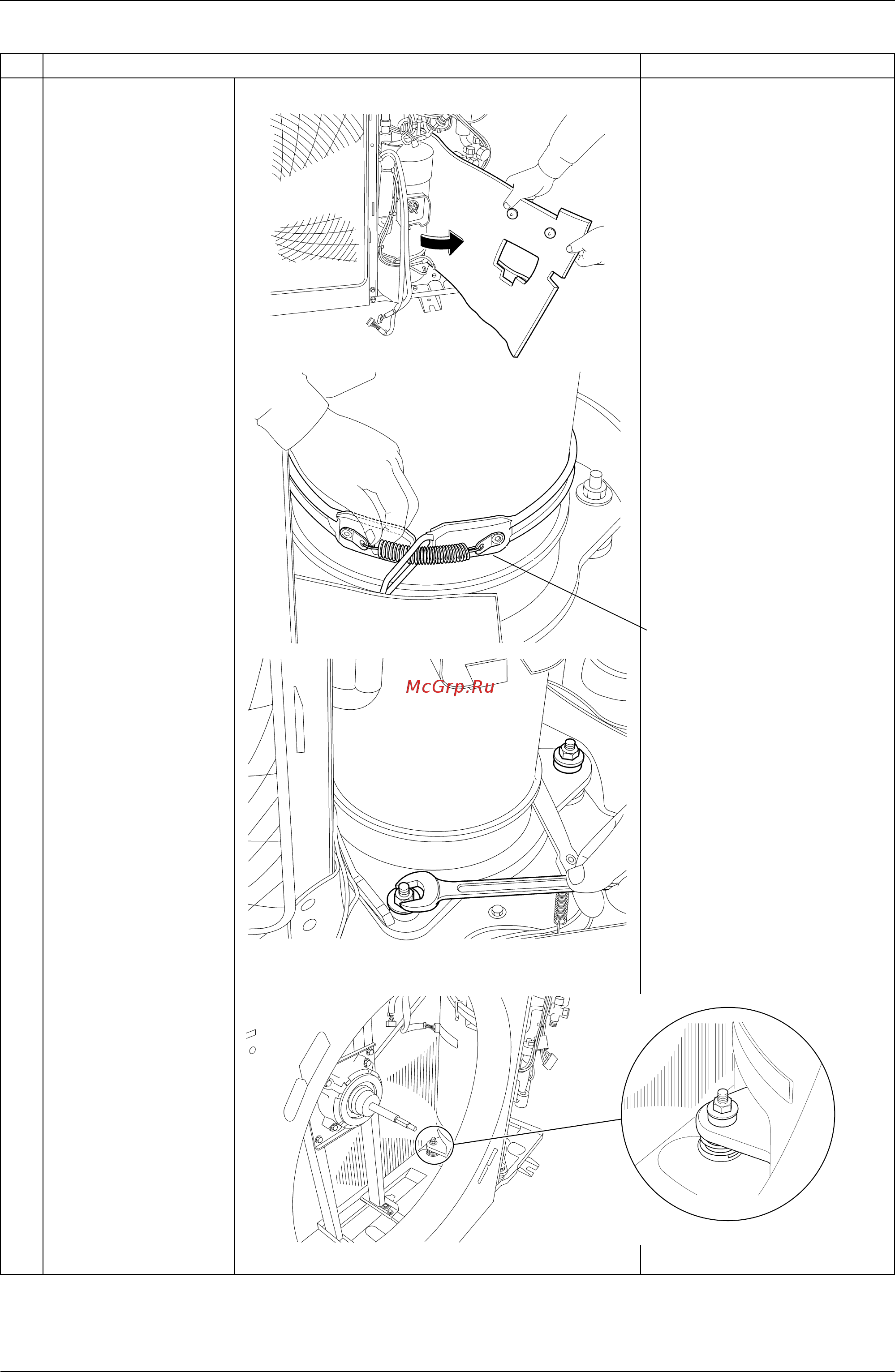

246 Removal Procedure
Step
Procedure Points
4
Remove the sound
insulation for the
compressor.
5
Remove the crankcase
heater under the
compressor.
Pull the spring to trip the catch.
6
Remove the three fixing
bolts of the compressor.
You can see the far side
fixing bolts when the bottom
discharge grill is removed.
Remove the bolt (s) in view
first.
