SiE39-404 Troubleshooting by Indication on the Remote Controller
Troubleshooting 197
2.20 “F3” Outdoor Unit: Abnormal Discharge Pipe
Temperature
Remote
Controller
Display
F3
Applicable
Models
RXYQ5~48M
Method of
Malfunction
Detection
Abnormality is detected according to the temperature detected by the discharge pipe
temperature sensor.
Malfunction
Decision
Conditions
When the discharge pipe temperature rises to an abnormally high level
When the discharge pipe temperature rises suddenly
Supposed
Causes
Faulty discharge pipe temperature sensor
Faulty connection of discharge pipe temperature sensor
Faulty outdoor unit PCB

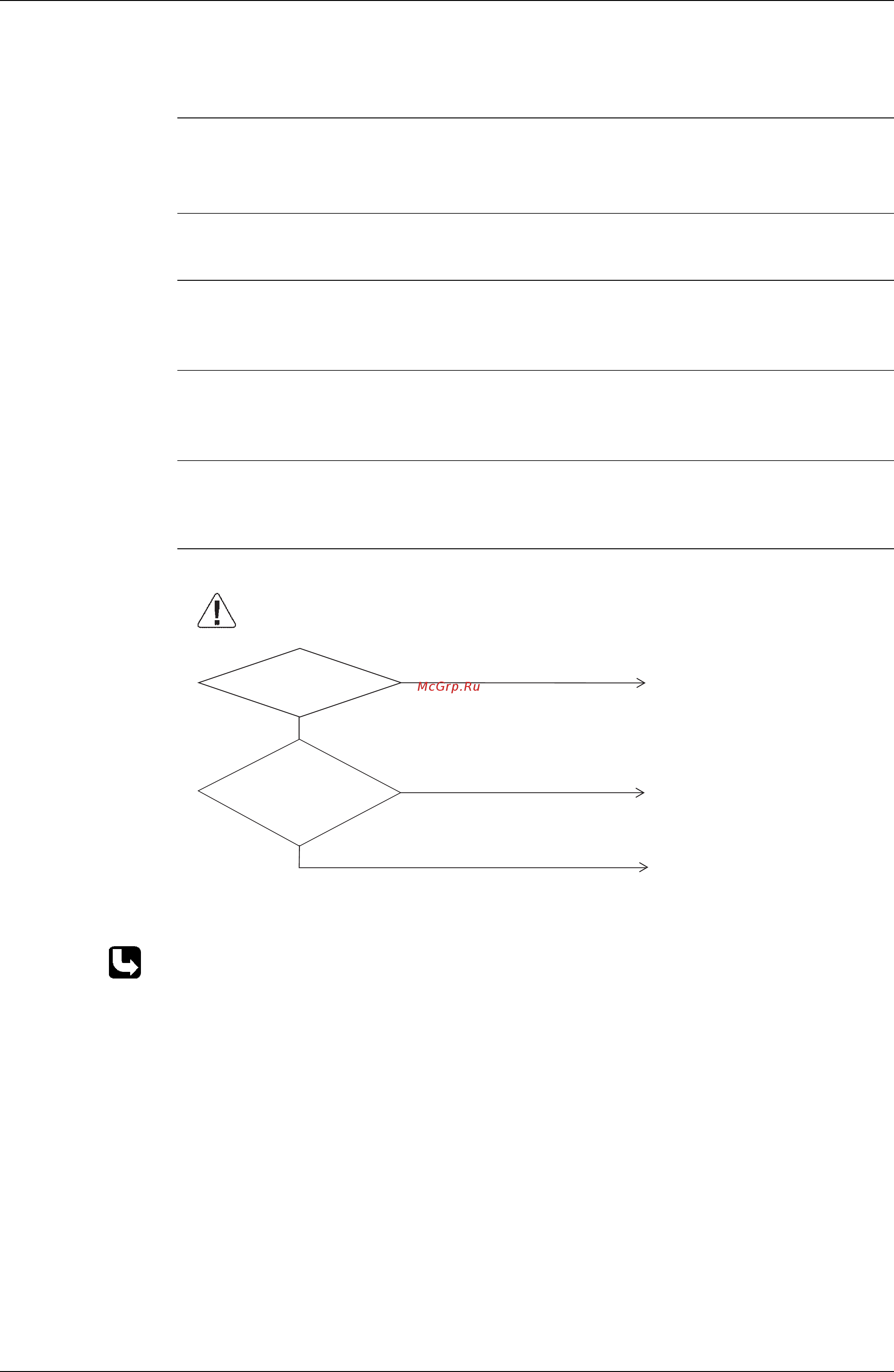

Troubleshooting
∗2: Refer to thermistor resistance / temperature characteristics table on P311.
(V3068)
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Caution
Discharge pipe
temperature is 115°C
or higher.
Are
the characteristics
of the discharge pipe
thermistor normal?
(3.5~400KΩ)
Replace outdoor unit PC board
A2P.
Replace the discharge pipe
thermistor.
Out of gas, compression defect,
etc. Defect of the refrigerant
system.
YES
YES
NO
NO
